Poe Full Gigabit Optical Fiber Switch 1 - Optical 5 - Electric

Minimum Order Quantity : 100PCS Price : USD17.8
Packaging Details : 118*95*28mm Delivery Time : 10-15WORKING DAYS
Payment Terms : L/C, D/A, D/P, Western Union Supply Ability : 5000pcs/Week
Place of Origin: Shenzhen Brand Name: HK
Certification: CCC, CE, FCC, RoHS Model Number: HK-PG-F1R5

Detail Information

Function: POE Dimension: 195×135×38mm
Weight: 0.65kg Ports: 6*100M Ethernet Port, 4 Ports Have POE Function
Input Voltage:: AC100V~240V 50/60Hz Data Rate: 10/100M Adaptive
Distance: 250m
Highlight:

Full Gigabit Optical Fiber Switch

,

Poe Optical Fiber Switch

,

Electric Gigabit Poe Switch

Product Description

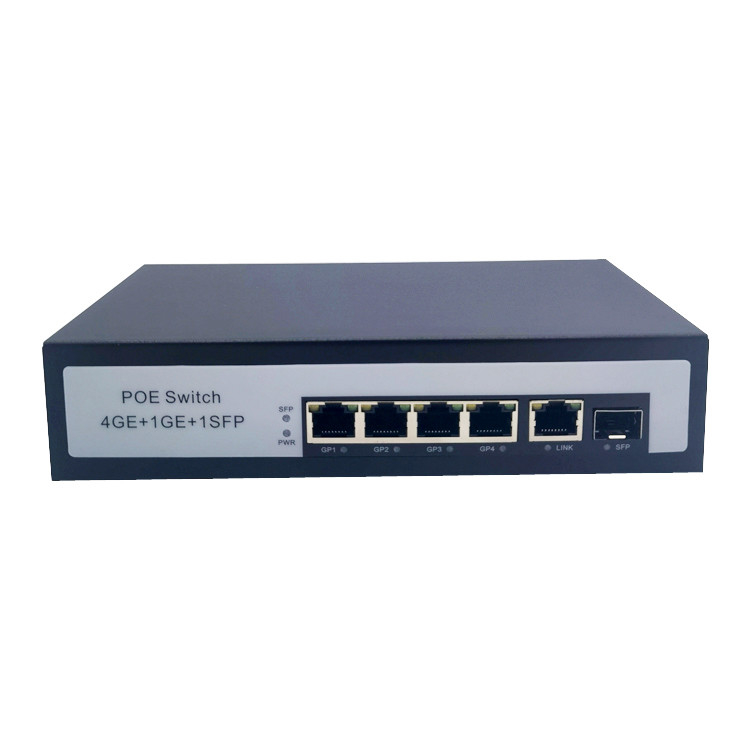

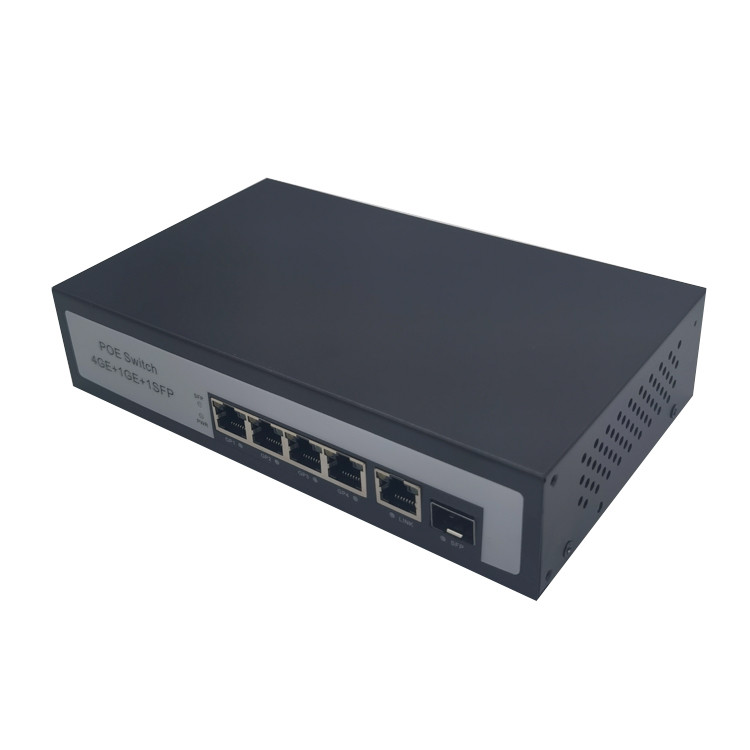

Full Gigabit 1-optical 5-electric Poe optical fiber switch


Poe Full Gigabit Optical Fiber Switch 1 - Optical 5 - Electric 0

Overview



         HK-PG-F1R5 Gigabit Poe switch provides 4 Gigabit Poe ports and 1 Gigabit electrical port +1 Gigabit SFP optical port for uplink. It uses international famous brand chips. It is an economical small switch, which is widely used in small networks and monitoring systems such as homes and enterprises.
         HK-PG-F1R5 Gigabit Poe switch supports ieee8023af and ieee8032at Poe standard can provide up to 30 watts of power to Poe webcam, wireless AP, Internet phone and other point receiving devices through one network cable, especially suitable for occasions where power wiring is inconvenient.
         HK-PG-F1R5 Gigabit Poe switch has a unique dial switch design, providing one key isolation (VLAN) mode. In VLAN mode, ports 1~4 are isolated from each other to prevent DHCP spoofing, suppress broadcast storms, and improve network security.





Specification



project parameter
port

4 10/100/1000base-t Poe ports
1 10/100/1000base-t uplink port
1 Gigabit SFP uplink optical port

Switching performance

Backplane bandwidth: 12g
MAC address table: 4K
RAM:128M
Support store and forward

Standard protocol

IEEE802.3, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX/FX, IEEE 802.3ab 1000BASE-T,
IEEE802. 3, IEEE802. 3i 10Base-T, IEEE802. 3u 100Base-TX/FX, IEEE 802.3ab 1000BASE-T,
IEEE 802.3z 1000BASE-X, IEEE802.3x Flow Control, IEEE802.1q VLAN,
IEEE 802.3z 1000BASE-X, IEEE802. 3x Flow Control, IEEE802. 1q VLAN,
IEEE802.3af PoE, IEEE802.3at PoE+
IEEE802. 3af PoE, IEEE802. 3at PoE+

Transmission medium and distance

Class V line: 100M;
Multimode fiber: 550m;
Single mode fiber: 20/40/80/120 km

Poe

Poe port: 4
DC48V, single port MAXIMUM POWER 30W
Power supply line pair: 1/2 (+), 3/6 (-)

Power Supply

Ac100~240v 50/60hz input
Total power 120W

indicator light

Power indicator, VLAN mode indicator, Poe indicator, electric port link connection indicator,
Electric port 1000m rate indicator, optical port link connection indicator

Use environment

Operating temperature: -10~55 ℃
Storage temperature: -40~70 ℃
Operating humidity: 10~90% non condensing
Storage humidity: 5~90% non condensing

physical characteristics

Dimension (W x D x H): 200x120x44mm
Weight: 0.85kg

Poe Full Gigabit Optical Fiber Switch 1 - Optical 5 - Electric 1Poe Full Gigabit Optical Fiber Switch 1 - Optical 5 - Electric 2Poe Full Gigabit Optical Fiber Switch 1 - Optical 5 - Electric 3Poe Full Gigabit Optical Fiber Switch 1 - Optical 5 - Electric 4









Poe Full Gigabit Optical Fiber Switch 1 - Optical 5 - Electric 5

Poe Full Gigabit Optical Fiber Switch 1 - Optical 5 - Electric 6Poe Full Gigabit Optical Fiber Switch 1 - Optical 5 - Electric 7
