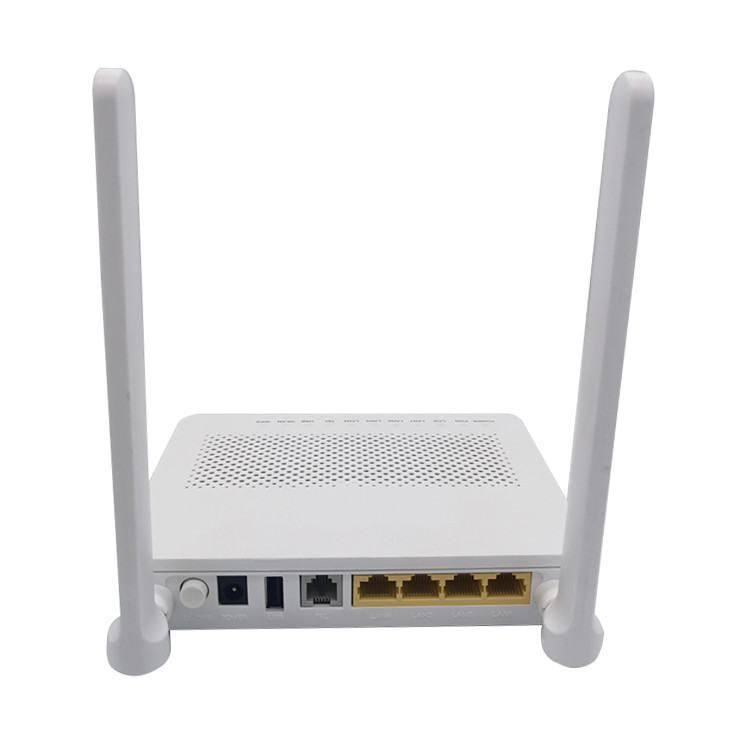

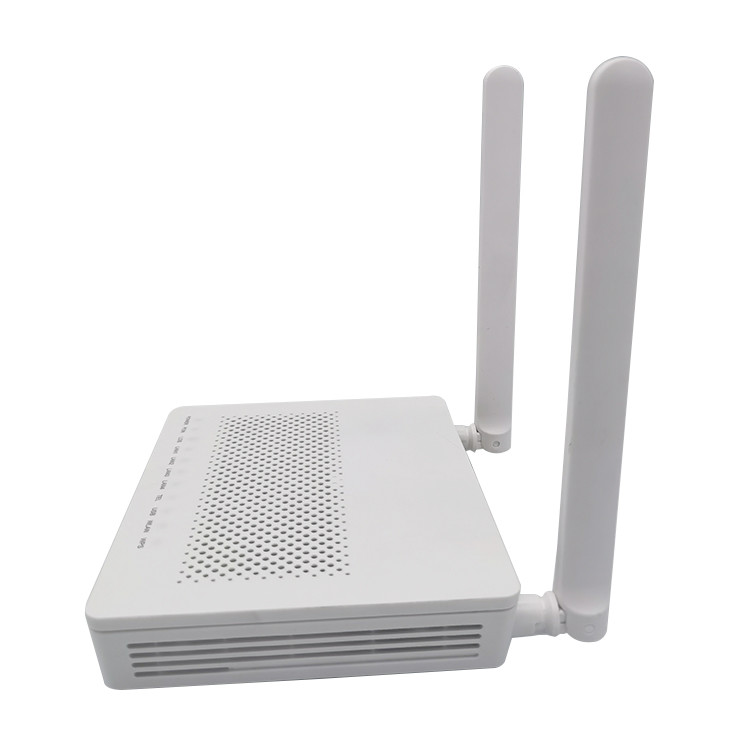

HG8546M GPON XPON ONU FTTH ONU Modem 1GE 3FE WIFI For Router Network

Technical items

Descriptions

Dimension

185*145*50mm(length*width*highs)

Net weight

≤0.3Kg

Fiber port

SC/APC (Single fiber) SC/UPC& SC/APC(Dual fiber )

Downstream rate 1.25Gbps, Upstream rate 1.25Gbps

Wavelength

Tx 1310nm, Rx 1490nm, RF1550nm

Fiber interface

SC/PC

RX sensitivity

<-27dBm (1490nm)

WLAN

IEEE802.11b/g/n,300Mbps, a built-in antenna

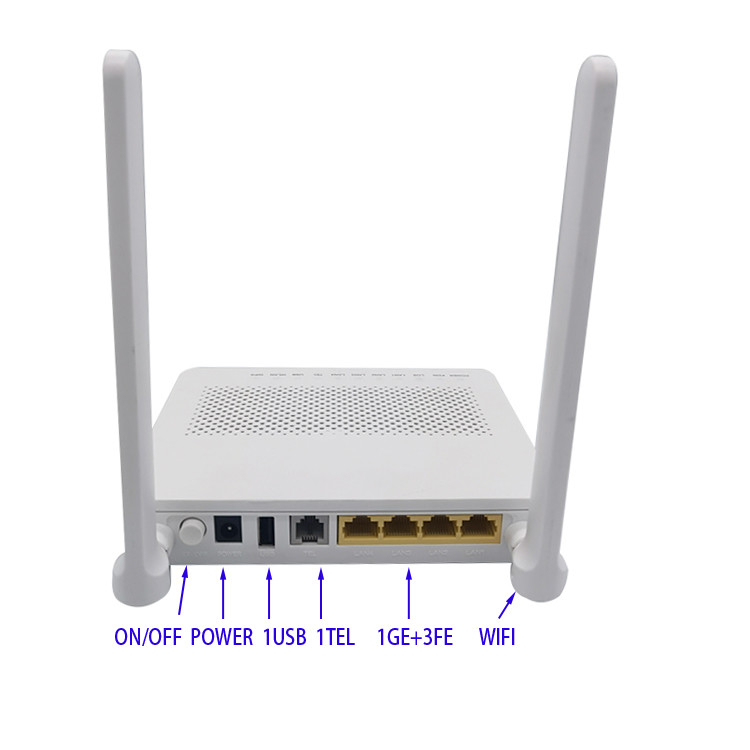

LAN

1*10/100/1000Mbps+3*10/100Mbp adaptive Ethernet ports, full/half duplex, RJ45 interface

Throughput

Throughput can reach 900Mbps or more

DC power

12V 1A, external AC-DC power adapter

POTS

1*FXS, RJ11 connector

Button

Reset, power, WIFI

Power

≤10W

Operation

Working temperature: -5-+55℃ working humidity:10-90%(non-condensation)

Storage

Storage temperature: -30℃-+60℃ storage humidity: 10-90%(non-condensation)

CATV

Parameters

Optical Receive

-15~+2 dBm

1.

AGC range

-8~+2 dBm

2.

Fiber return loss

>50 dB

3.

wave length

1100~1600 nm

4.

Connector

SC/APC

5.

C/N

≥ 50 dB

6.

C/CTB

≥ 62 dB

7.

C/CSO

≥ 61 dB

8.

BW

40~ 1000 MHz

9.

Output level

≥ 82 dBμV
