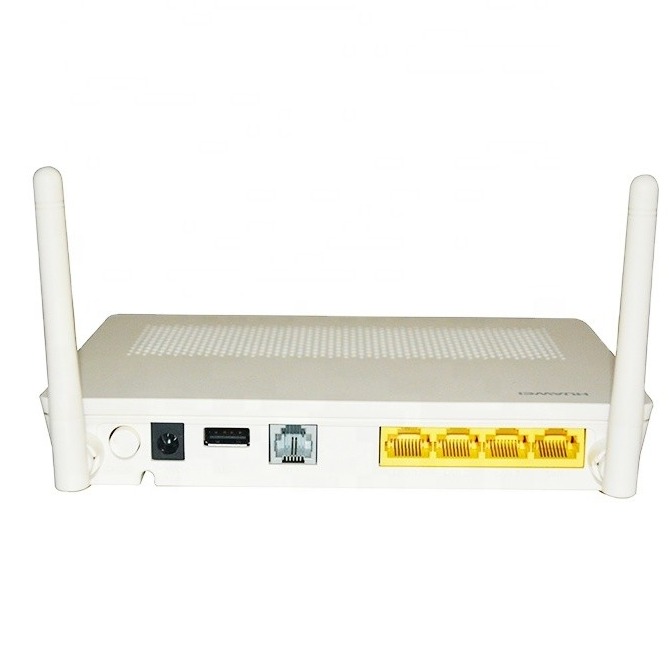

Single Mode Fiber 4 Lan Ports WiFi GPON ONU CATV EPON ONU Huawei GPON HG8546M
Single Mode Fiber 4 Lan Ports WiFi GPON ONU CATV EPON ONU Huawei GPON HG8546M
Single Mode Fiber 4 Lan Ports WiFi GPON ONU CATV EPON ONU Huawei GPON HG8546M Single Mode Fiber 4 Lan Ports WiFi GPON ONU CATV EPON ONU Huawei GPON HG8546M
Contact Now

Single Mode Fiber 4 Lan Ports WiFi GPON ONU CATV EPON ONU Huawei GPON HG8546M

Minimum Order Quantity : 50pcs Price : Negociatable
Packaging Details : Carton Box Delivery Time : 7-15days
Payment Terms : T/T,Western Union Supply Ability : 10000pcs/Week
Place of Origin: China Brand Name: hongking
Certification: CE ROHS Anatel

Detail Information
Model Number: HG8546M Use: FTTX
Single-Mode Fiber: SMF Application: FTTH
Type: Gpon Wifi Onu Ont Router Max Capacity: 4 Lan Ports
Power Supply: 12V,1.5A Outline Dimension: 240*160*35mm
High Light:

Single Mode Fiber 4 Lan Ports ONU

,

15W Huawei GPON HG8546M

,

4 Lan Ports HG8546M CATV EPON ONU

Product Description

onu epon wifi gpon onu catv onu huawei gpon HG8546M



Product Description

HG8546M GPON ONT is a new terminal level GPON ONT, which is a variety of FTTB FTTH FTTO accessing ONT published by huaway for ISPs FTTH network applications. It can support pure data, Data +Voice, Data+ Voice+ WIFI and other service accessing type. HG8546M ONT supports standard OMCI, can provide up to 1.25Gbps uplink and 2.5Gbps downlink high-speed transfer rate. It can fully meet ISPs FTTBFTTHFTTO equipment needs, working with our NGBN unified network management system.



Attributes
HG8245M
Power Supply
12V,1.5A
Full Loaded Power
Consumption
<=15W
Outline Dimension
240*160*35mm
Weight
<=0.5kg

Environmental requirements
Working temperature:0ºC~50ºC
Storage temperature:-40ºC~70ºC
Working humidity:5%~90%
Storage temperature:5%~95%
no condensing

Ethernet Standard
IEEE802.3
IEEE802.3au
IEEE802.3x






GPON
Speed
Downlink:2.488Gbps
Uplink:1.244Gbps
Connector
SC/APC, pigtail
Standard
ITU-T G.984.2 , Class B+



Power level
Downlink
– Wavelength:1490nm
– Sensitivity:-28dBm
– Saturation:-8dBm
Uplink
– Wavelength:1310nm
– TX power:0.5 ~ 5dBm
Fiber
G.652 Single Mode Fiber

WIFI
Antenna
2x2, 5dBi external antenna
EIRP
Max 25dBm


VoIP
REN
Max 5REN
Connector
1x RJ11
Ringing
65V RMS ringing voltage
USB
Max 1A for each port

Features
GPON WAN port with 1.244Gbps uplink / 2.488Gbps downlink link speed Active Ethernet WAN port with 1.25Gbps bi-direction link speed 1x GE+3FE Ethernet RJ45 Ports 2x2 11n WIFI support 300Mbps link speed 1x FXS RJ11 ports for Voice service 1x USB ports in host or device mode DC 12V adaptor, max 1.5A current -5 to 50℃ operating ambient temperature
