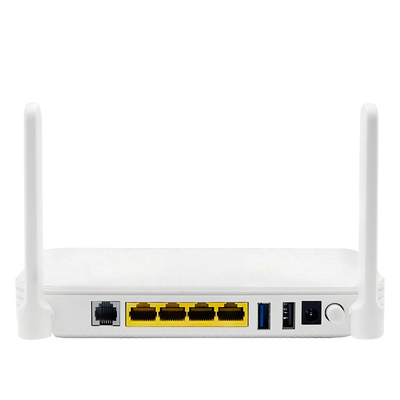

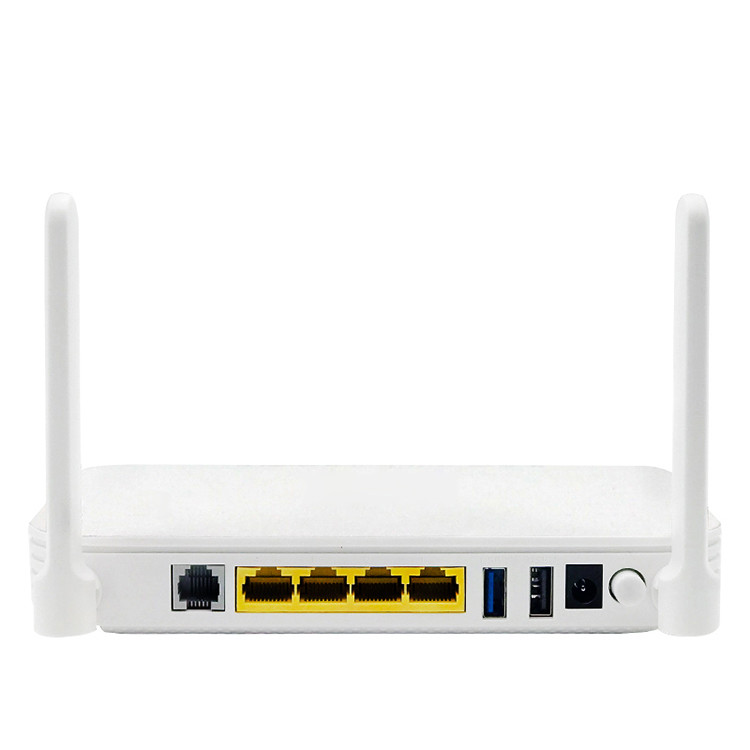

HG8546M GPON WIFI ONT 4FE 1POT CE RoHS FCC Huawei ONU 1G Uplink 2G Downlink

Passive ONU (optical network unit) is the user side equipment of GEPON (gigabit passive optical network) system. It uses EPON (passive optical fiber network) to terminate the service transmitted from OLT (optical line terminal). In conjunction with OLT, ONU can provide broadband services to connected users. Such as Internet surfing, VoIP, HDTV, VideoConference and other services. ONU as the user equipment, the application of FTTx, is the "copper era" to "essential fiber" era of high bandwidth and high cost of terminal equipment. GEPON ONU as the ultimate solution of user cable access, plays a pivotal role in the future NGN (next generation network) overall network construction.

Special Features:
1. Plug and play, integrated auto detecting, auto configuration, and auto firmware upgrade technology.
2. Full compliance to IEEE 802.3ah specification & OAM function.
3. Support 802.11n 2T2R speed up to 300Mbps.
4. Support No-auth, WEP, WPA-PSK and WPA2-PSK function with AES, TKIP encryption.
5. Support rich VLAN, DHCP Server and IGMP snooping multicast feature.
6. Advantage traffic management
7. Advanced Dynamic Bandwidth Allocation (DBA)
8. The WAN port supports bridge / router mode.
9. Advanced L2 features QinQ VLAN & QoS support.
10. Support NAT, Firewall function.
11. RF Video Output Bandwidth (MHz):45~1000, AGC Dynamic Range(dBm):-6~+2
12. Support Console/ Telnet/ NMS management interface for ease of operation and maintenance.
13. Support 2K MAC address table.
14. Fully compatibility with OLT based on Broadcom/PMC/Cortina chipset.

Data Service Functions
1. Full speed non-blocking switching.

2. 2K MAC address table.

3. 64 full range VLAN ID.

4. Support QinQ VLAN, 1:1 VLAN, VLAN reusing, VLAN trunk, etc.

5. Integrated port monitoring, port mirroring, port rate limiting, port SLA, etc.

6. Support auto polarity detection of Ethernet ports (AUTO MDIX).

7. Integrated IEEE802.1p QoS with four level priority queues.

8. Support IPv4 IGMP snooping and IPv6 MLD snooping.

9. Support bridge, router and bridge/router mixed mode.
