Home ProductsWiFi GPON ONU802.11ac Dual Band WiFi GPON ONU Huawei Optical Network Terminal EG8145V5

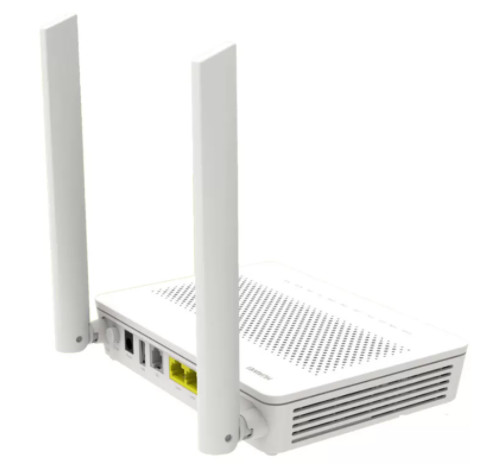

802.11ac Dual Band WiFi GPON ONU Huawei Optical Network Terminal EG8145V5
802.11ac Dual Band WiFi GPON ONU Huawei Optical Network Terminal EG8145V5
802.11ac Dual Band WiFi GPON ONU Huawei Optical Network Terminal EG8145V5 802.11ac Dual Band WiFi GPON ONU Huawei Optical Network Terminal EG8145V5
Contact Now

802.11ac Dual Band WiFi GPON ONU Huawei Optical Network Terminal EG8145V5

Minimum Order Quantity : 50pcs Price : Negociatable
Packaging Details : Carton Box Delivery Time : 7-15days
Payment Terms : T/T,Western Union Supply Ability : 10000pcs/Week
Place of Origin: China Brand Name: HUAWEI
Certification: CE ROHS Anatel

Detail Information
WLAN(2.4G): 2 X 2 MIMO 802.11b/g/n Type: Optical Fiber Wifi Router
Application: FTTH FTTB FTTX Network Ports: 4GE+1Post+2USB+Dual Band Wifi
Size:: 30mm X 173mm X 120mm Antenna Gain: 5dBi
High Light:

Dual Band WiFi GPON ONU

,

802.11ac WiFi GPON ONU

,

huawei optical network terminal eg8141a5

Product Description

HuaWei EG8145V5 GPON routing optical network terminal ONT supports 802.11ac dual-band WiFi

Description Of Optical Fiber Wifi Router

The EchoLife EG8145V5, an optical network terminal (ONT), is a high-end home gateway in Huawei FTTH solution. By using the GPON technology, ultra-broadband access is provided for home and SOHO users. TheEG8145V5 provides 1* POTS ports, 4*GE auto-adapting Ethernet ports, and 2* Wi-Fi port,2*USB port. TheEG8145V5 features high-performance forwarding capabilities to ensure excellent experience with VoIP, Internet and HD video services. Therefore, the EG8145V5 provides a perfect terminal solution and future oriented service supporting capabilities for FTTH deployment.

Specification Of Optical Fiber Wifi Router

NNI GPON
Optical interface SC/APC interface
Class B+
UNI 1POTS+4GE+2USB+2.4G&5G Wi-Fi
WiFi standard 2.4GHz: 2 x 2 MIMO 802.11b/g/n
5GHz: 2 x 2 MIMO 802.11a/n/ac
Antenna gain 5dBi
Dimensions(Width×Depth×Height) 30mm x 173mm x 120mm
Power supply Power supply: 11–14V DC, 1.5A
Input power: 100–240V AC, 50/60Hz
Operating temperature and operating humidity 0℃ to 40℃
5% to 95%, non-condensing
Cooling Passive cooling
Maximum number of MAC addresses learned 1024
L2 forwarding capability Forwarding packets of any length at wire speed
IPv4 L3 forwarding capability 2Gbit/s with any length packets in downstream direction
1Gbit/s with any length packets in upstream direction
IPv6 L3 forwarding capability 2Gbit/s with any length packets in downstream direction
1Gbit/s with any length packets in upstream direction
Configuration method NMS, Web, or TR069
Voice protocol SIP and H.248
Software version V300R017C10





Model Configuration Dimension/Packing
LAN Telephone WIFI PPPOE Firmware
EG8145V5 4GE 1POTS YES YES English

173*120*30mm

250g 20pcs/ctn
Remark 2USB,Internal Antenna,Support IEEE802.11ac,Dual Frequency WIFI,WirelessNet-5G
Number of Assoclated Devices:32

Application Of Optical Fiber Wifi Router



1. Product Function
• Smart Wi-Fi coverage

• SIP/H.248 auto-negotiation

• Any port any service

• Parental control

• L2/L3(IPv4) forwarding: 1G uplink, 2G downlink

2. Smart service

• Scheduled Wi-Fi shutdown
• Smart Wi-Fi sharing:
• Portal/802.1x authentication
• SoftGRE-based sharing

3. Smart O&M

• IPTV video quality diagnosis
• eMDI
• Rogue ONT detection and isolation from the OLT
• Call emulation, and circuit test and loop-line test
• PPPoE/DHCP simulation testing
• WLAN emulation
4. Layer 3 Features

• PPPoE/Static IP/DHCP
• NAT/NAPT
• Port forwarding
• ALG, UPnP
• DDNS/DNS server/DNS client
• IPv6/IPv4 dual stack, DS-Lite and IPv6 SPI
• Static/Default routes
• Multiple services on one WAN port
5. Multicast

• IGMP v2/v3 proxy/snooping
• MLD v1/v2 snooping
6. QoS

• Ethernet port rate
• limitation
• 802.1p priority
• SP/WRR/SP+WRR
• Broadcast packet rate

7. Security

• SPI firewall
• Filtering based on
• MAC/IP/URL addresses

8. Power Saving
• Indicator power saving
• COC V5

802.11ac Dual Band WiFi GPON ONU Huawei Optical Network Terminal EG8145V5 0
