4 Port Gigabit Optical Fiber Wifi Router HuaWei Echolife EG8141A5 Gpon Terminal
4 Port Gigabit Optical Fiber Wifi Router HuaWei Echolife EG8141A5 Gpon Terminal
Contact Now

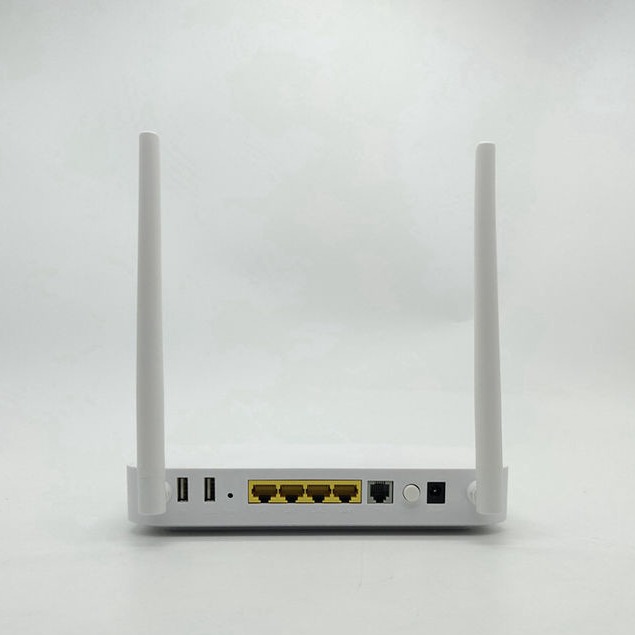

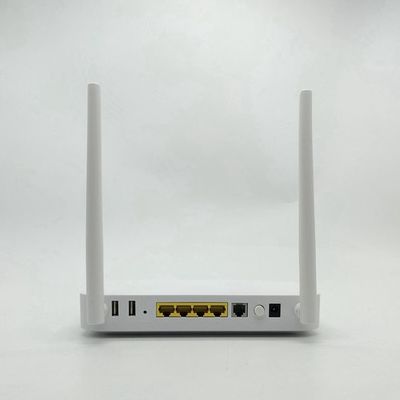

4 Port Gigabit Optical Fiber Wifi Router HuaWei Echolife EG8141A5 Gpon Terminal

Minimum Order Quantity : 50pcs Price : Negociatable
Packaging Details : Carton Box Delivery Time : 7-15days
Payment Terms : T/T,Western Union Supply Ability : 10000pcs/Week
Place of Origin: China Brand Name: HUAWEI
Certification: CE ROHS Anatel

Detail Information
Type: Optical Fiber Wifi Router Bland: HuaWei
Portas: 1GE+3FE+1TEL+wifi Opration Interface: English
Connector Type: SC/APC External Power Supply: DC 12V/0.5A
High Light:

180g Gigabit Optical Fiber Wifi Router

,

EG8141A5 Optical Fiber Wifi Router

,

HuaWei echolife EG8141A5 gpon terminal

Product Description

HuaWei EG8141A5 GPON ONU wifi router 1GE+3FE+USB+VOIP+USB+wifi 4 port Gigabit with voice fiber optical equipment

Description Of EG8141A5

The EchoLife EG8141A5 provides one GE port, one POTS port, three FE ports and supports 2.4G Wi-Fi. The ONT features high-performance forwarding capabilities to ensure excellent experiences with VoIP, Internet, and HD video services. These features make the EG8141A5 a perfect choice for broadband access.



The EchoLife Eg8141a5 XPON ONU, an optical network terminal (ONT), is a high-end home in FTTH solution.

By using the GPON technology, ultra-broadband access is provided for home and SOHO users.

The EG8141A5 provides 1GE+3FE Ethernet ports,featuring high-performance forwarding capabilities to ensure excellent experience with VoIP, Internet and IPTV services.



Features Of EG8141A5

1. Dual-band WIFI ONT upgrades the online experience.

2. Powerful WIFI,powerful entertainment

3. Dual Band Gigabit Rate
4. High-speed & Concurrent

5. Connect More Devices
6. Enjoy Wireless Network

specification Of EG8141A5

Dimensions (L x W x H) 30 mm x 152 mm x 105 mm
(without external antenna and pads)
Weight < 180 g
Operating Temperature 0°C to +40°C
Operating Humidity 5% RH to 95% RH (non-condensing)
Power Adapter Input 100V to 240V AC, 50/60 Hz
System Power Supply 11V to 14V DC, 1.5A
Static Power Consumption 3.1W
Maximum Power Consumption 7.15W
NNI GPON
UNI 1 POTS + 1 GE + 3 FE + 2.4G Wi-Fi
Optical Connector SC/APC
Indicators POWER/PON/LOS/LAN/TEL/WLAN/WPS

Application and Advantage:

1.Full compatible with ITU-T G.984.
2.Support port-based rate limitation and bandwidth control
3.Integrated OMCI remote configuration and maintenance function.
4.Support data enscryption, group broadcasting, port Vlan separation ,RSTP,etc.
5.Support Dynamic Bandwidth Allocation (DBA)
6.Support ONT auto-discovery/Link detection/remote upgrade of software;
7.Support VLAN division and user separation to avoid broadcast storm;
8.Support power-off alarm function ,easy for link problem detection
9.Support broadcasting storm resistance function
10.Support port isolation between different ports
11.Support ACL and SNMP to configure data packet filter flexibly
12.Specialized design for system breakdown prevention to maintain stable system
13.Support software online upgrading
14.EMS network management based on SNMP ,convenient for maintenance
