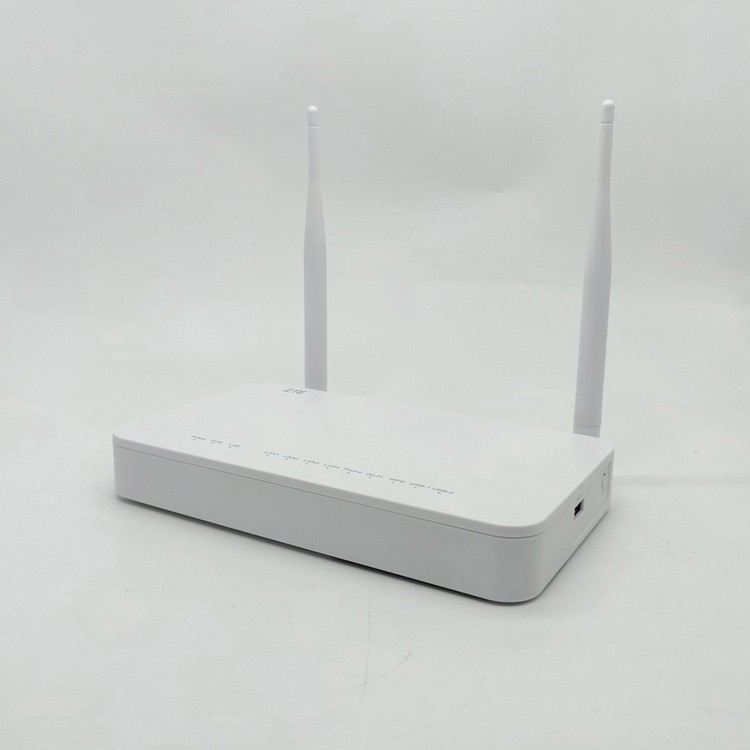

ZXHN F670L Dual Band GPON ONU 2.4G 5G 4GE 1USB 1Voice Port ONT F670 Wifi Router

Minimum Order Quantity :	50pcs	Price :	$19.0-$19.8
Packaging Details :	Carton Box	Delivery Time :	7-15days
Payment Terms :	T/T,Western Union	Supply Ability :	10000pcs/Week

Place of Origin:	China	Brand Name:	ZTE
Certification:	CE ROHS Anatel	Model Number:	F670L

Detail Information
No. Of Fiber:	1.	Use:	FTTH
Dimensions:	190mm X 120mm X28mm	Weight:	750g
Operating Temperature:	0 ~+40	Operation Humidity:	5% RH To 95% RH(non-condensing)
Power Adapter Input:	100 V To 240 V AC, 50 Hz/60 Hz	System Power Supply:	12V 1A

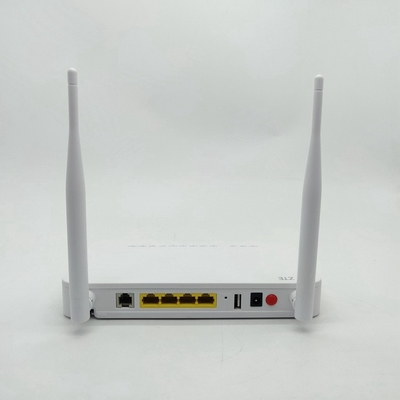

Ports:	4GE+1POTS+USB+2.4G&5G WIFI	Optical Connector:	SC / UPC
Indicators:	Power / PON / LOS / ALARM / LAN	Type:	GPON ONU
Port:	Shenzhen

Product Description

FTTH Dual Band Wireless WiFi 4GE GPON ONU ONT English Firmware 2.4G 5G AC ZTE F670L F670

Brief Introductions:

2020 NEW ZXHN ZTE F670L is a dual band GPON Optical Network Terminal designed for HGU (Home Gateway Unit) used in FTTH, It include 4GE+1USB+1POTS+2.4G/5.8G.

Proudcts Specifications :

Model	ZTE ZXHN F670L
Dimensions (H x W x D)	190mm x 120mm x 28mm
Weight	750g (Include Package)
Operating Temperature	0°C to 40°C
Operating Humidity	5% RH to 95% RH (non-condensing)
Power Adapter Input	100 V to 240 V AC, 50 Hz/60 Hz
System Power Supply	12V 1A
Ports	4GE+1USB+1POTS+2.4G/5.8G
Optical Connector	SC / UPC
Indicators	Power/PON/LOS/ALARM/LAN

Product Description

ONU ONT GPON Dual Band 5G AC Wifi 4GE+1Tel.+2.4G 5G Wifi F670L

The ZXHN F670 is an ITU-T G.984 and ITU-T G.988 compliant optical network terminal (ONT) that is designed for high-end home users. It is well suited to fiber to the home (FTTH) scenarios and supports desktop mounting. At the network side, it supports 2.488 Gbps downlink and 1.244 Gbps uplink. At the user side, it provides four GE ports, two POTS ports, one USB 2.0 port, and Wi-Fi 802.11n 2x2 2.4GHz & 802.11ac 3x3 5GHz concurrent. By using the ZXHN F670, the home users can access data, video and voice services, and enjoy high-speed internet connection.

F670L GPON ONT ONU Features

* Supported service: VoIP, Internet, IPTV

•GPON: 8 T-CONTs, 32 GEM Ports

•VLAN: 802.1Q, 802.1P, 802.1ad

•MAC address table: 1k

•L3 function: DHCP server/Client, DNS Client, NAT

•IPv6: Dual Stack, DS-Lite

•VoIP: SIP/H.248, G.711/G.722, T.30/T.38

•Wi-Fi: 4 SSIDs, 2x2 MIMO 2.4G, 3x3 MIMO 5G , WPS

•Wi-Fi authentication: Shared key, 128-bit WEP, WPA-PSK, WPA2-PSK, WPA-PSK + WPA2-PSK

•Multicast: IGMP v1/v2/V3 Snooping/Proxy, MLD v1 Snooping

•Multicast group: 64

•QoS: service flow classification based on physical port, MAC address, VLAN ID, VLAN priority level, IP address; SP/WRR/SP+WRR

•Management: local web management, OMCI, TR069

•USB: DLNA DMS, USB backup

Specification

item	F670L GPON ONU,4GE+1TEL+1USB+WIFI(dual band)
Place of Origin	China
	Guangdong
Brand Name
Model Number	F670L GPON ONU
Type	FTTx Solutions
Use	FTTH
Product name	dual band 2.4G&5G wifi gpon onu modem ONT
Wavelength	Tx1310nm,Rx 1490nm
Warranty	12 Months
Dimensions	178mm120mm30mm
Power supply	≤10W
