FTTB FTTD FTTX 1GE 3FE WIFI EPON GPON HGU ONU Wireless 2.4GHz To 2.4835GHz

Minimum Order Quantity :	50pcs	Price :	Negociatable
Packaging Details :	Carton Box	Delivery Time :	7-15days
Payment Terms :	T/T,Western Union	Supply Ability :	10000pcs/Week

Place of Origin:	China	Brand Name:	OEM
Certification:	CE ROHS Anatel

Detail Information
Certificates:	CE/RoHS/ISO9001:2008	Rate:	10/100Mbps
Ports:	1GE+3FE+Wifi	Power Supply:	DC12v
Usage:	FTTB, FTTH, FTTD, FTTX	Wavelength:	TX 1310nm/ RX 1490nm
Product Name:	Wifi ONU
High Light:	FTTX 1GE 3FE GPON HGU ONU , 2.4835GHz GPON HGU ONU , 2.4835GHz Wireless 2.4GHz epon hgu

Product Description

GEPON EPON ONU/HGU 1GE+3FE+WIFI

✔ Support EPON/GPON mode and switch mode automatically
✔ Support ONU auto-discovery/Link detection/remote upgrade of software
✔ WAN connections support Route and Bridge mode
✔ Route mode supports PPPoE/DHCP/ static IP
✔ Support WIFI Interface and multiple SSID
✔ Support QoS and DBA
✔ Support port Isolation and port vlan configuration
✔ Support Firewall function and IGMP snooping/Proxy multicast feature
✔ Support LAN IP and DHCP Server configuration
✔ Support Port Forwarding and Loop-Detect
✔ Support TR069 remote configuration and maintenance
✔ Specialized design for system breakdown prevention to maintain stable system

Parameter	Specification
PON Interface	1 G/EPON port(EPON PX20+ and GPON Class B+)
	Receiving sensitivity: ≤-27dBm
	Transmitting optical power: 0~+4dBm
	Transmission distance: 20KM
Wavelength	TX: 1310nm, RX: 1490nm
Optical Interface	SC/PC Connector

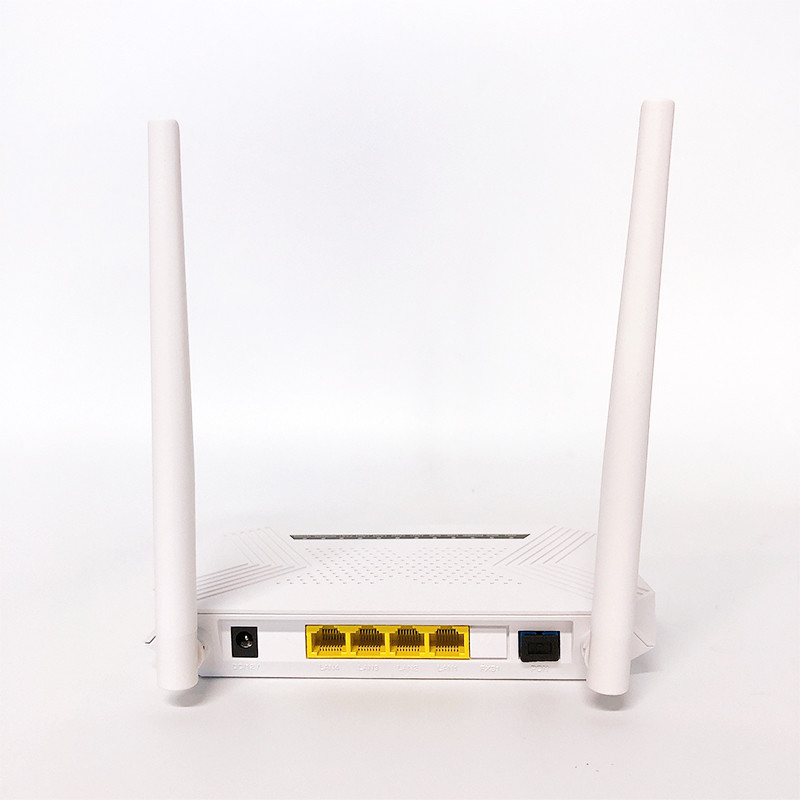

LAN Interface	1 x 10/100/1000Mbps and 3 x 10/100Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector
Wireless	Compliant with IEEE802.11b/g/n,
	Operating frequency: 2.400-2.4835GHz
	support MIMO, rate up to 300Mbps,
	2T2R,2 external antenna 5dBi,
	Support: Multiple SSID
	Channel: Auto
	Modulation type: DSSS, CCK and OFDM
	Encoding scheme: BPSK, QPSK, 16QAM and 64QAM
LED	11 LED, For Status of WIFI,WPS,PWR,LOS,PON,LAN1~LAN4,Worn, Normal(CATV)
Push-Button	3,For Function of Reset, WLAN, WPS
Operating Condition	Temperature: 0℃~+50℃
Operating Condition	Humidity: 10%～90%(non-condensing)
Storing Condition	Temperature: -30℃~+60℃
Storing Condition	Humidity: 10%~90%(non-condensing)
Power Supply	DC 12V/1A
Power Consumption	≤6W
Dimension	155mm×92mm×34mm(L×W×H)
Net Weight	0.24Kg


About Us :
Hongking Industrail co.,limited

HongKing Communication Technology (shenzhen)co.,Limited

are a company group which specialized in the research and development of optical access network technology. We provide integrated network transmission products such as voice, data, and video based on IP networks. As a partner of HUAWEI & ZTE ,We have great advantage on the region of PON and FTTH, We can Provide Competitive fiber optic access solution for ISP Company and Telecommunication company worldwide..

Our Competitive Products Includes:

GPON EPON XPON ONU ONT (Optical network terminal)

OLT & Board & SFP & OLT Accessories (Optical Line Terminal)

FTTH Accessories (fiber to the home)

Our Services

1. Provide Technical support and Remote help for our customers

2. 1-3 year warranty for our product

3. OEM/ ODM service for your market

In the past 10years, we had provided our FTTH products and good service for more than 30 countries with good reputation

Welcome to contact us to get a good supplier and partner !

Factory Overview :

About Shipment :

For small orders, We ship via DHL/ FedEx / UPS/etc. Your packages will be delivered about 5-7 days all over the world.
For big order, we can arrange Sea shipment or Air cargo for your order.
We can recommend you Special line logistics agent for some country, it will save you much shipping cost.
If you have own shipping agent, we will provide good cooperation for it.

Our wearhouse Near from HongKong & GuangZhou,Welcome to inquire us to get a good delivery solution

Frequently Asked Questions :
Q: Are you a manufacturer or trading company?

A: We are manufacturer of ONT and FTTH equipment in china,meanwhile we are primary wholesaler of brand new ONU OLT in china, that’s why We can offer good price and solution as well as technical support for our customer
Q: Where is your company located?

A: Our company is located in shenzhen, China. Our office and warehouse is Near Guangzhou and hongkong,we can provide better and economic delivery solution and payment solution for you
Q: How can I get the sample? What's the lead time?

A: By DHL/UPS/FedEx express. Samples lead time is 3-5 days.
Q: How does your company control product quality?

A: All Brand name ONT and OLT we sold is original brand New ,We guarantee the quality for 1-3years For FTTH accessories ,our factory have ISO9001 Certificated, independent quality control team . The third party certificated and factory audit accepted.Third party quality control accepted.
Q: Do you provide ODM/OEM service?

A: OEM/ODM is welcome, For printing your own logo, MOQ only 100pcs-1000pcs, we have our own designer and engineer, We have happy to do ODM service and technical support for you

Q: How to place the order?

1 Contact us and discuss the detail with our saler

2 We will issue the Proforma invoice for your to final confirm the order and delivery detail

3 Pay Deposit or full payment by (T/T Western-Union Trade-Assurance )

4 We will ship out your cargo in time per the PI / Contract
