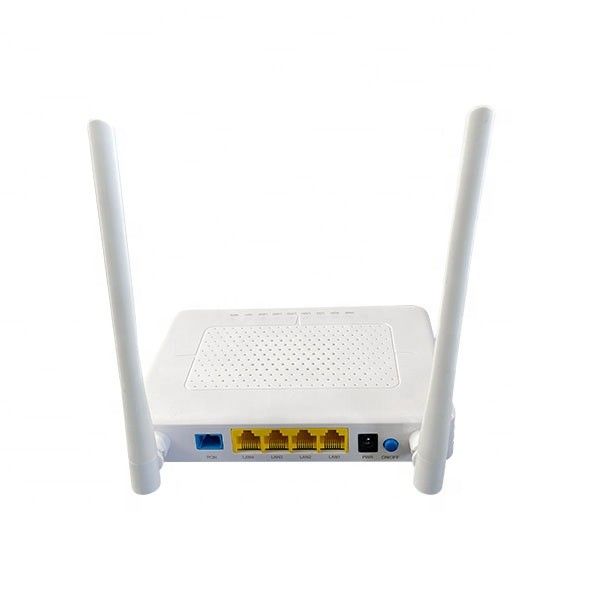

HG8546M 2.4Ghz EPON Modem Router 1.25Gbps EPON ONU Wifi

Item		Parameter
PON Port	PON port quantity	1
	Standard	1000BASE-PX20+
	Speed rate	Symmetric 1.25Gbps upstream/downstream
	PON Port connector	SC/UPC single-mode
	Split ratio	1:64
	Transmission distance	20KM
Ethernet Port	Work mode	1*10/100/1000M and 3*10/100M auto-negotiation Full/half duplex mode
	Port connector	RJ45 connector
	Transmission distance	Auto MDI/MDI-X 100m distance
Power Supply		12V DC Power supply
PON Performance	Wavelength	Tx 1310nm, Rx1490nm
	Tx Optical Power	0～4dBm
	Rx Sensitivity	-27dBm
	Saturation Optical Power	-3dBm
Data Performance	PON Throughput	Downstream 980Mbps; Upstream 950Mbps
	Ethernet	1000Mbps or 100Mbps
	Packet Loss Ratio	<1*10E-12
	latency	<1.5ms
Network Management	Management Mode	QAM, TR069, WEB, Telnet
	Management Function	Status monitor Configuration management Alarm management Log management
Physical Parameter	Power	External 12V DC/0.6A power supply adapter Power consumption: <6W
	Device	Item Dimension:160mm(L)*139.5mm(W)*28.5mm(H) Weight:about 228g
	Environment	Operating temperature: 0 to 40ºC Operating humidity: 10% to 90% (Non-condensing)

About Us :

Hongking Industrail co.,limited

HongKing Communication Technology (shenzhen)co.,Limited
are a company group which specialized in the research and development of optical access network technology. We provide integrated network transmission products such as voice, data, and video based on IP networks. As a partner of HUAWEI & ZTE ,We have great advantage on the region of PON and FTTH, We can Provide Competitive fiber optic access solution for ISP Company and Telecommunication company worldwide..

Our Competitive Products Includes:
GPON EPON XPON ONU ONT (Optical network terminal)
OLT & Board & SFP & OLT Accessories (Optical Line Terminal)
FTTH Accessories (fiber to the home)

Our Services
1. Provide Technical support and Remote help for our customers
2. 1-3 year warranty for our product
3. OEM/ ODM service for your market

In the past 10years, we had provided our FTTH products and good service for more than 30 countries with good reputation
Welcome to contact us to get a good supplier and partner !

1. For small orders, We ship via DHL/ FedEx / UPS/etc. Your packages will be delivered about 5-7 days all over the world.
2. For big order, we can arrange Sea shipment or Air cargo for your order.
3. We can recommend you Special line logistics agent for some country, it will save you much shipping cost.
4. If you have own shipping agent, we will provide good cooperation for it.

Q: Are you a manufacturer or trading company?
A: We are manufacturer of ONT and FTTH equipment in china,meanwhile we are primary wholesaler of brand new ONU OLT in china, that’s why We can offer good price and solution as well as technical support for our customer
