OEM Dual Frequency 2.4g 5.0g WiFi EPON ONU ONT 1ge 3fe 1tel 2usb

Contact Now

OEM Dual Frequency 2.4g 5.0g WiFi EPON ONU ONT 1ge 3fe 1tel 2usb

Minimum Order Quantity :	50pcs	Price :	Negociatable
Packaging Details :	Carton Box	Delivery Time :	7-15days
Payment Terms :	T/T,Western Union	Supply Ability :	10000pcs/Week

Place of Origin:	China	Brand Name:	OEM
Certification:	CE ROHS Anatel	Model Number:	HK718ED

Detail Information
Application:	FTTB/FTTH/FTTO	Wavelength:	TX: 1310nm, RX: 1490nm
Optical Interface:	SC/UPC Connector	Design Scheme:	MT7592N(2.4GHz)+ MT7612EN(5GHz)
CPU:	MTK ECONET EN7526GT/ACTH CPU 900MHz	RAM:	PowerChip P3P4GF4BLF 512MB DDR3
High Light:	OEM 2.4g 5.0g WiFi EPON ONU , OEM Dual Frequency 2.4g 5.0g ONU , 1ge 3fe 1tel 2usb epon onu wifi

Product Description

OEM Dual Frequency 2.4g 5.0g Wifi EPON ONU ONT 1ge 3fe 1tel 2usb

Overview:

The Dual-band Intelligent Gateway is a home gateway unit of GPON/EPON that provides a Gigabit connection and voice features for indoor environments such as small offices and multi-unit buildings. It enables next-generation simultaneous voice, video, and data services including high-speed Internet access, video streaming, and instant messaging. The Dual-band Intelligent Gateway is a cost-effective, easy-to-deploy device that can fully meet the requirements of users for the use of high-performance Internet.

Gigabit wired port, high-speed fiber, 2.4G/5G dual-band concurrent design; so that wireless signals can be transmitted simultaneously which make the Internet speed is faster. Up to 867Mbs, users can watch high-definition video and play games online more smoothly, which is very convenient for users.

Features:

1: Support 802.11 a/b/g/n/ac, and automatic rate adjustment.

2: Support WPA-PSK, WPA2-PSK, WPA-PSK/WPA2-PSK mixed mode, AES and TKIP encryption.

3: Support WPS specifications for the 2.4 GHz and 5 GHz bands.

4: Expanded coverage with Beam forming + technology and dual-band antennas.

5: Reduce operation and maintenance costs, speeding up installation, and improving work efficiency.

6: Low standby power consumption, beautiful appearance and small size; it is the best Internet terminal solution for home users.

Item	Descriptions
Item	HK718 GPON/EPON Terminal
PON interface	1 GPON BoB(Class B+)
	Receiving sensitivity:≤-27dBm
	Transmitting optical power: +0.5~+5dBm
	Transmission distance: 20KM
Wavelength	TX: 1310nm, RX: 1490nm
Optical Interface	SC/UPC Connector
Design Scheme	MT7592N(2.4GHz)+ MT7612EN(5GHz)
CPU	MTK ECONET EN7526GT/ACTH CPU 900MHz
RAM	PowerChip P3P4GF4BLF 512MB DDR3
Protocol Standard	Compliant with ITU-T G.984.3, IEEE802.11 a/b/g/n/ac
WI-FI	Dual-band: IEEE802.11 b/g/n/ac, 64/128-bit WEP Encryption, WPA, WPA-PSK/TKIP,
	WPA2, WPA2-PSK/AES, 4×SSID (2.4G) + 4×SSIDs (5G ), WMM, WPS
	Rate: 802.11g—54M, 802.11n—300M, 802.11ac—867M
IPv6/IPv4	IPv6/IPv4 Dual Stack, SLAAC, PPPoEv6, RIPng, DHCPv6 Server/Client Side, DHCPv6-PD
Network Security	Flexible flow classification and control, anti-DoS,DDos attack, anti-port scanning,
and Management	support message filtering, MAC address filtering, DMZ, SSL, device discovery,
	TR069 remote management, logging, Web and Telnet configuration management,
	hierarchical authority management
QoS Capacity	Flow Classification, 802.1p, DSCP, four hardware queues, PQ, WFQ Scheduling
VoIP	Encoding Mode Support: speech encoding-G.711u/a, G.729a/b,
	G. 722Codec, FAX code - T. 38
	Protocol Support: SIP, IMS/SIP, H. 248
	Features: ITU-T G. 168 echo cancellation, caller ID, mute detection, mute suppression,
	comfortable background tone, dual tone multi-frequency detection and generation,
	speech frame loss compensation, gain adjustment, dynamic jitter buffering,
	speech stream priority scheduling

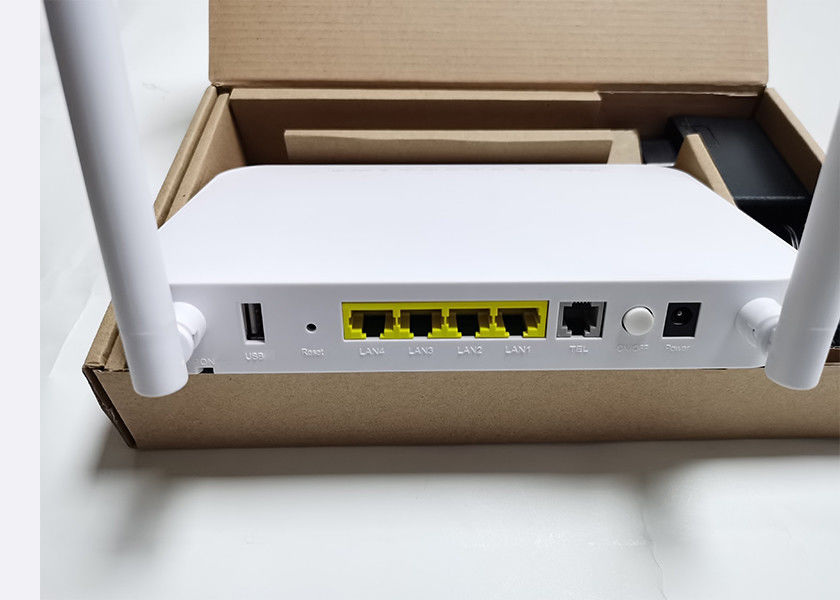

External Interfaces	1×PON Interface,
	4×1000M Ethernet Interfaces,
	2×USB2.0 Interfaces, 1×RJ11 Interface,
	1×Reset Button
Power Supply	Input: AC 100V~240V Output: DC 12V 1.5A
Dimensions	203mm108mm35mm
Operating Environment	Working Temperature: 0℃~45℃
	Storage Temperature: -40℃~70℃
	Working Humidity: 10%~95% RH Non-condensation
	Storage Humidity: 5%~95% RH Non-condensation
