FTTH 1: 32 SC APC Cassette Box Fiber Optic Splitter

Name: FTTH 1: 32 SC APC Cassette Box Fiber Optic Splitter
Brand: FTTH 1: 32 SC APC Cassette Box Fiber Optic Splitter
SKU: FTTH 1: 32 SC APC Cassette Box Fiber Optic Splitter
Price: 1.00 USD
Availability: InStock
Rating: 4.6 (148 reviews)

Minimum Order Quantity :	50pcs	Price :	Negociatable
Packaging Details :	Carton Box	Delivery Time :	7-15days
Payment Terms :	T/T,Western Union	Supply Ability :	10000pcs/Week

Place of Origin:	China	Certification:	CE ROHS Anatel

Detail Information
Model NO.:	1: 32 SC APC	Trademark:	OEM
Specification:	1: 8	Origin:	China
HS Code:	8517622990	Port:	Yantian, China
Type:	Fiber Optic Splitter&Coupler	Wiring Devices:	Integrated Wiring
Certification:	CE, ISO, RoHS, GS	Condition:	New
Application:	FTTX	Transport Package:	Carton Box
High Light:	FTTH Splitter 8517622990 , 8517622990 Fiber Optic Splitter , 8517622990 FTTH Splitter

Product Description

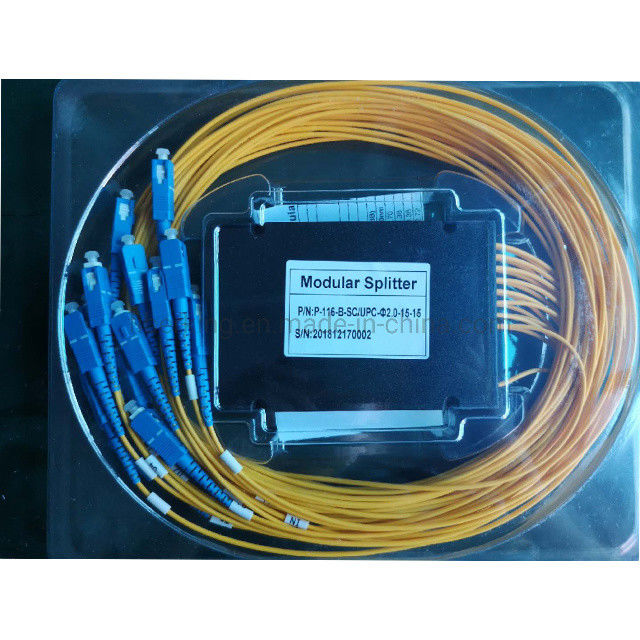

FTTH 1:32 SC APC Cassette box fiber optical PLC splitter

PLC splitter is a type of optical power management device that is fabricated using silica optical waveguide technology.
Hongking communication can provides whole series of 1xN and 2xN splitter products that are tailored for specific applications.
All products meet GR-1209-CORE and GR-1221-CORE requirements.

FTTH 1: 32 Sc APC Cassette Box Fiber Optical PLC Splitter

Specifications (1XN):

Parameters	1×2	1×4	1×8	1×16	1×32	1×64	1×128
Operating wavelength	1260 ~1650nm
Insertion Loss (dB)(P/S Grade)	3.6/4.0	7.2/7.4	10.2/10.5	13.5/13.7	16.2/16.7	20.5/21	23.8/24.5
uniformity (dB)	0.4	0.6	0.8	1.0	1.2	1.8	2.0
PDL (dB)	0.2	0.2	0.3	0.3	0.3	0.4	0.5
Return Loss (dB)	≥55
Directivity (dB)	≥55
TDL(dB)	0.5
Operating/Storage Temperature (ºC)	-40~85

Specifications (2XN):

Parameters	2×2	2×4	2×8	2×16	2×32	2×64		2×128
Operating wavelength	1260 ~1650nm
Insertion Loss (dB)(P/S Grade)	3.8/4.2	7.5/7.8	10.7/11	14/14.2	17/17.5		21/21.5	25/25.5
uniformity (dB)	0.6	1.0	1.2	1.5	1.8		2.0	2.5
PDL (dB)	0.2	0.2	0.3	0.3	0.3		0.4	0.4
Return Loss (dB)	≥55
Directivity (dB)	≥55
TDL (dB)	0.5
Operating/Storage Temperature (ºC)	-40~85

Note: All the data above does not include connector
