1X16 1X8 1X4 Single Mode Fiber Optic Splitter Optical PLC Splitter SC APC UPC Splitter

Minimum Order Quantity :	50pcs	Price :	Negociatable
Packaging Details :	Carton Box	Delivery Time :	7-15days
Payment Terms :	T/T,Western Union	Supply Ability :	10000pcs/Week

Place of Origin:	China	Brand Name:	OEM PLC Splitter
Certification:	CE ROHS Anatel	Model Number:	1X16 Mini PLC splitter

Detail Information
Operation Wavelength:	1260~1650nm	Insertion Loss:	≤10.7dB
Return Loss:	≥55 DB	Connector:	SC APC / SC UPC Optional
Fiber Length:	1m	Operating Temperature:	-40~+85℃
Fiber:	Single-Mode	Application:	FTTH FTTB FTTx
High Light:	1X4 Single Mode Fiber Optic Splitter , 1X16 1X8 Fiber Optic Splitter , SC APC UPC optical PLC splitter

Product Description

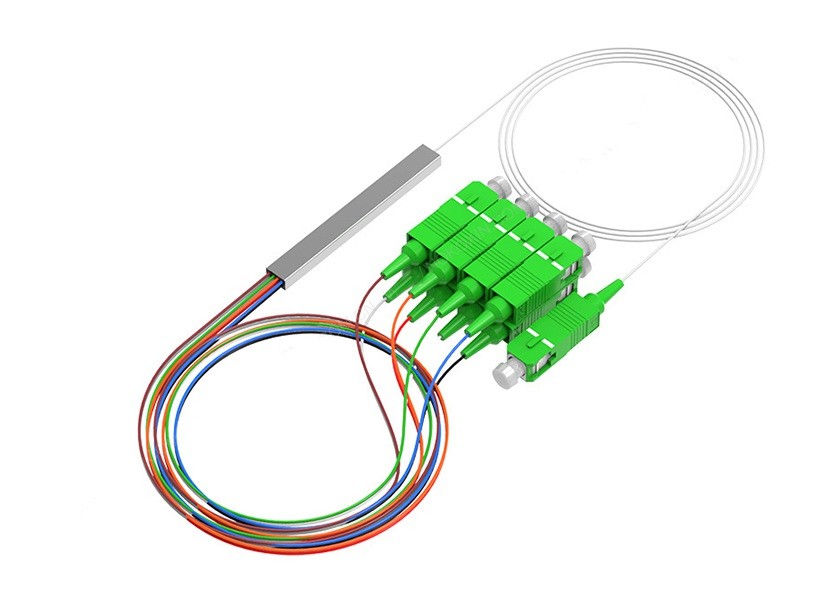

FTTH Steel Tube Type Fiber optical PLC splitter 1X16 1X8 1X4 SC APC UPC Mini Splitter

Fiber optical PLC splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. Features include small size, high reliability and a wide operating wavelength. The PLC splitter is widely used in all fiber optic networks to realize optical signal power splitting. All products are GR-1221-CORE compliant.

HongKing's fiber optical PLC splitter are available in a wide range of styles and sizes to split or combine light with minimal loss. All splitters are manufactured using a very simple process that produces reliable, low-cost devices. Splitters can be fabricated in custom fiber lengths and with any type of connector. Multicom PLC splitters are available in tube, box, cassette, and rack mount configurations, from 1 to 32 splits, even or customized splits, single and multimode, with any connector type.

Specification:

Wavelength(nm)		1260-1650
Parameters	1×2	1×4	1×8	1×16	1×32	1×64	2×4	2×8	2×16	2×32
Insertion Loss(with connector)(dB)	≤4.2	≤7.7	≤11.2	≤14.2	≤17.5	≤21.5	≤8.3	≤12	≤15	≤17.7
Insertion Loss(W/O connector)(dB)	≤4.0	≤7.4	≤10.7	≤13.7	≤16.9	≤21	≤7.8	≤11.5	≤14.5	≤18.2
Uniformity (dB)	≤0.4	≤0.8	≤1.0	≤1.4	≤1.9	≤2.7	≤1.7	≤1.7	≤2.2	≤2.7
PDL(dB)	≤0.2	≤0.3	≤0.3	≤0.3	≤0.3	≤0.4	≤0.2	≤0.4	≤0.4	≤0.4
Return Loss(dB)		>50
Directivity(dB)		>55
Temperature Range (℃)		-40~+75
Storage Temperature(℃)		-40~+85

1X16 1X8 1X4 Single Mode Fiber Optic Splitter Optical PLC Splitter SC APC UPC Splitter 0

1X16 1X8 1X4 Single Mode Fiber Optic Splitter Optical PLC Splitter SC APC UPC Splitter 1

1X16 1X8 1X4 Single Mode Fiber Optic Splitter Optical PLC Splitter SC APC UPC Splitter 2

1X16 1X8 1X4 Single Mode Fiber Optic Splitter Optical PLC Splitter SC APC UPC Splitter 3
