NEW ZXA10 F660 V8.0 GPON ONU 1GE + 3FE + 1POTS + Wireless SIP ZTE Optical fiber terminal

Product Description

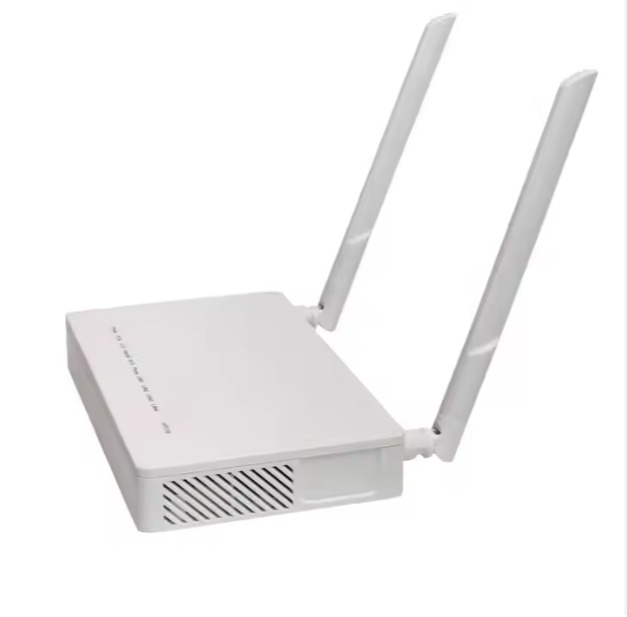

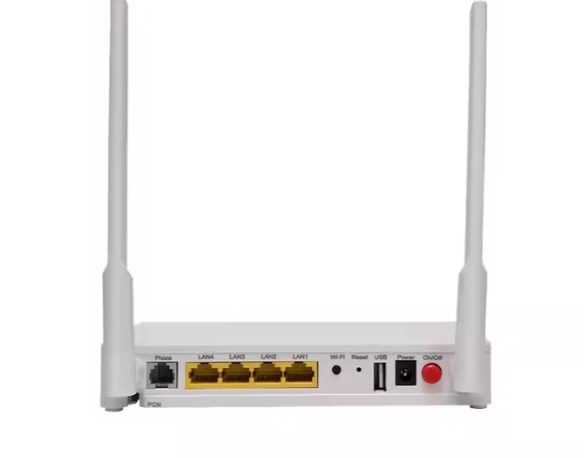

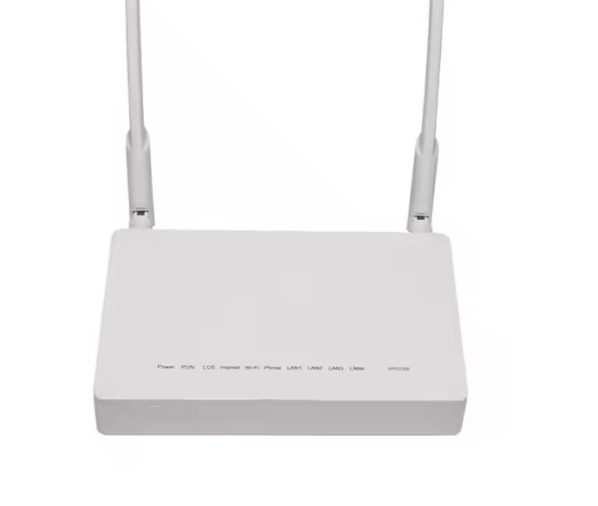

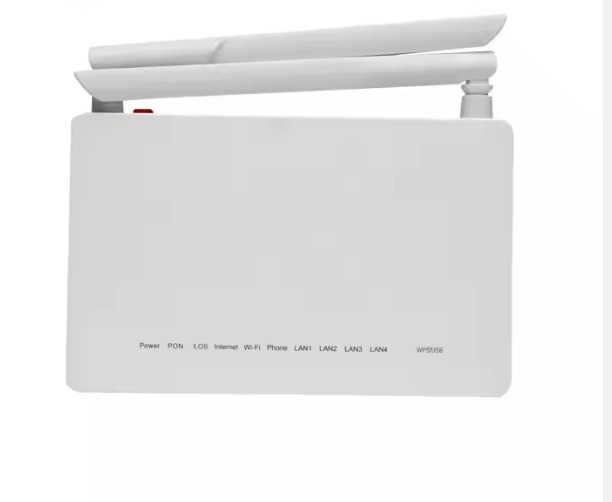

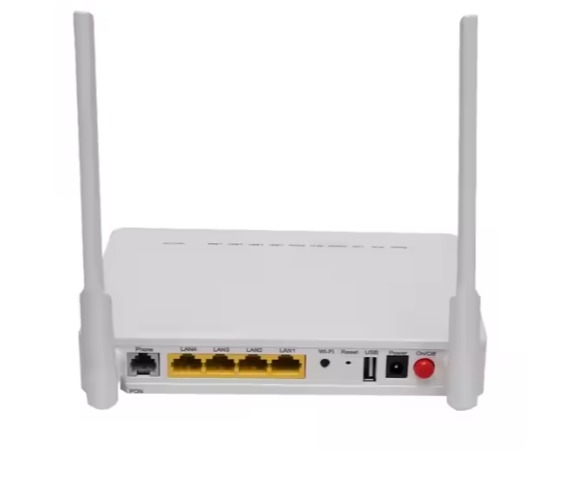

ZXA10 F660 V8.0 GPON ONU

F660 is a GPON optical network terminal specifically designed for FTTH scenarios. It supports L3 functions and helps users build intelligent home networks. It provides subscribers with rich, diverse, personalized, convenient and comfortable services, including voice, video (IPTV) and high-speed internet access.

Main Function
  (1)Supported services: VoIP. Internet, Internet TV
  (2) GPON: 8 T-CONTs, 32 gem ports
(VLAN): 802.1Q, 802.1P, 802.1ad
  (4) MAC Address Table: 1k
  (5) L3 Function: DHCP Server/Client, DNS Client Relay, NAT
  (6) IPv6: Dual-stack, ds-lite
  (7)VolP: SIP/H.248, G.711/G.729, T.30/T.38

  (8) Wireless Network: 4 SSIDs, 2x2 MIMO, WPS
  (9) Wi-Fi Authentication: Shared Key, 128-bit WEP, WPA-PSK, WPA2-PSK, WPA2-PSK (with WPA2), WPA2-Enterprise
Multicast: IGMP v1/v2 listener/forwarder, MLD v1 listener
  (11) Multicast for each user port: 256
  (12) QoS: Service flow classification based on physical ports, MAC addresses, VLAN IDs, VLAN priorities, and IP addresses; SP/WRR/SP WRR

  (13) Management: Local web management, OMCI
  (14) USB: DLNA DMS, USB backup, 3G USB drive
