Place of Origin:	China	Brand Name:	HUAWEI
Certification:	CE ROHS Anatel	Model Number:	EG8143A5

Detail Information
Type:	EPON XPON	PORT:	5 Ports Catv
Firmware:	English Firmware	Dimensions (H X W X D):	155 X 115 X 30 Mm
Weight:	200	Operating Temperature:	0°C To +40°C
Operating Humidity:	5% RH To 95% RH (non-condensing)	Chipset:	Hisilicon
Power Adapter Input:	100 V To 240 V AC, 50 Hz/60 Hz	System Power Supply:	11 V To 14 V DC, 1.5 A
Optical Connector:	SC/APC SC/UPC	Indicators:	Power/PON/LOS/LAN/TEL/WLAN/WPS
Ports:	1 POTS + 1 GE + 3 FE + 2.4G Wi-Fi	Power Supply:	EU Power / US Power/ UK Power Optional

Specifications
Dimensions (H x W x D)	34 x 175 x 115 mm
Weight (Without power adapter)	Approximately 235 g
Operating Temperature	0–40°C
Operating Humidity	5%–95% RH (non-condensing)
Power Adapter Input	100–240 V AC, 50/60 Hz
UNI	1 x GE, 3 x FE, 1 x POTS, 1 x Wi-Fi (2.4G), and 1 x CATV
NNI	1 x GPON
Maximum Power Consumption*	8.2 W
Maximum PoE Output Power	NA
Surge Protection	GE port: common mode 4 kV; differential mode 0.5 kV AC power supply: common mode 6 kV; differential mode 6 kV
Installation Mode	Desktop
Compliance Certification	CE
GPON Port	Connector: SC/APC Class B+ Receiver sensitivity: –27 dBm Overload optical power: –8 dBm Type B single-homing Type B dual-homing (supported in Layer 2 forwarding)
Ethernet Electrical Port	Ethernet port-based VLAN tags and tag removal 1:1 VLAN, N:1 VLAN, or VLAN transmission QinQ VLAN Limit on the number of learned MAC addresses MAC address learning
POTS Port	Maximum REN: 4 G.711A/μ, G.729a/b, and G.722 encoding/decoding T.30/T.38/G.711 fax mode DTMF Emergency calls (complies with the SIP protocol)
WLAN	IEEE 802.11 b/g/n (2.4G) 2 x 2 MIMO Antenna gain: 2 dBi WMM Multiple SSIDs WPS Air interface rate: 300 Mbit/s

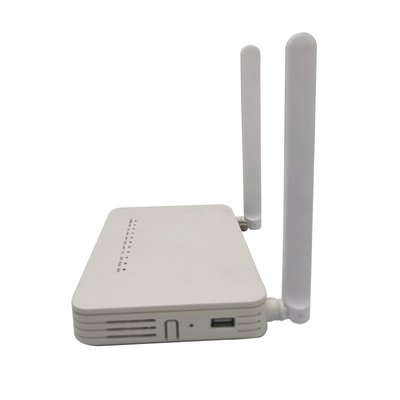

EG8143A5 Fiber Modem ONT CATV 4GE ONT Modem With Wifi 2.4G 5.8G

EchoLife EG8143A5
