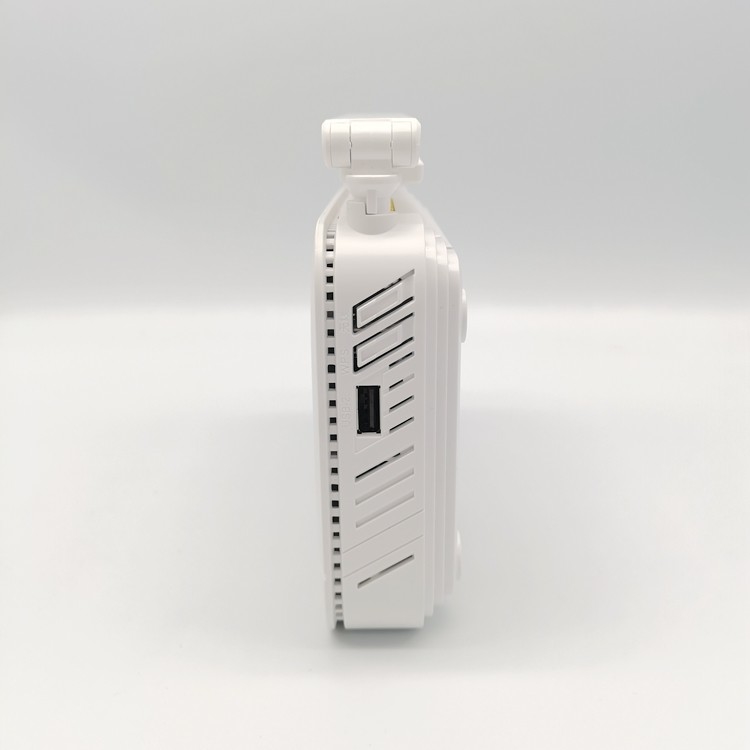

FTTH SC UPC GPON ONU ONT PON LOS LAN WLAN GPON Modem Router
Contact Person : Anna
Phone Number : +852 68416561
WhatsApp : +85268416561
Minimum Order Quantity : | 100PCS | Price : | $25.5-$26.5 |
---|---|---|---|
Packaging Details : | 15*15*5cm | Delivery Time : | 10-15days |
Payment Terms : | L/C, T/T | Supply Ability : | 100000 per month |
Place of Origin: | SHENZHEN | Brand Name: | HONGKING |
---|---|---|---|
Certification: | CE ROES | Model Number: | F6610 |
Detail Information |
|||
WIFI6: | WIFI6 | BANAD: | DUAL BAND |
---|---|---|---|
BAND1: | 2.4G/5G | APC Upc: | APC UPC |
LOGO: | CUSTOMIZED | PORT: | 5 PORTS |
GPON: | GPON/EPON |
Product Description
1 .Full compatible with ITU-T G.984.
2.Support port-based rate limitation and bandwidth control
3.Integrated OMCI remote configuration and maintenance function.
4.Support data enscryption, group broadcasting, port Vlan separation ,RSTP,etc.
5.Support Dynamic Bandwidth Allocation (DBA)
6.Support ONT auto-discovery/Link detection/remote upgrade of software;
7.Support VLAN division and user separation to avoid broadcast storm;
8.Support power-off alarm function ,easy for link problem detection
9.Support broadcasting storm resistance function
10.Support port isolation between different ports
11.Support ACL and SNMP to configure data packet filter flexibly
12.Specialized design for system breakdown prevention to maintain stable system
13.Support software online upgrading
14.EMS network management based on SNMP ,convenient for maintenance
PON Interface
|
Interface Type
|
SC/APC, CLASS B+
|
Rate
|
Uplink: 1.25Gbps; Downlink: 2.5Gbps
|
|
User-Side Interface
|
1*10/100/1000BASE-T;1*10/100BASE-T;1*RF interface
|
|
Size (Mm)
|
167(L)×118(W)×30(H)
|
|
Maximum Power Consumption
|
<8W
|
|
Weight
|
120g
|
|
Operating Environment
|
Temperature: -10°C ~ 55°C
|
|
Humidity: 5% ~ 95% (no condensation)
|
||
Power Supply
|
External Power Adapter 12V/1A
|
|
Power Adapter Input
|
100-240V AC, 50/60Hz
|
|
Power Interface Size
|
metal inner diameter: φ2.1±0.1mmouter diameter : φ5.5±0.1mm; length: 9.0±0.1mm
|
|
WLAN Module
|
External dual antenna, antenna gain 5db, antenna power 16~21dbm
|
|
Support 2.4GHz, 300M transmission rate
|
