HK668 AC Wifi GPON ONT XPON ONU 2.4g 5g 4GE 1POTS FTTH Modem

Minimum Order Quantity : 100 Price : 19us$-22us$
Packaging Details : Carton box Delivery Time : 15days
Supply Ability : 10000pcs/week
Place of Origin: China Brand Name: HONGKING
Certification: Anatel Model Number: HK668

Detail Information

Application: FTTH Product Name: High Quality Wholesale Ftth Epon Onu /GPON ONU Price ONU Device
Wavelength: Tx 1310nm, Rx 1490nm Dimension: 205mm*125mm*28mm(length*width*height)
Type: WIFI PON ONU Net Weight: 0.4Kg
Certification: RoHS Warranty: 1 Years
High Light:






Product Description

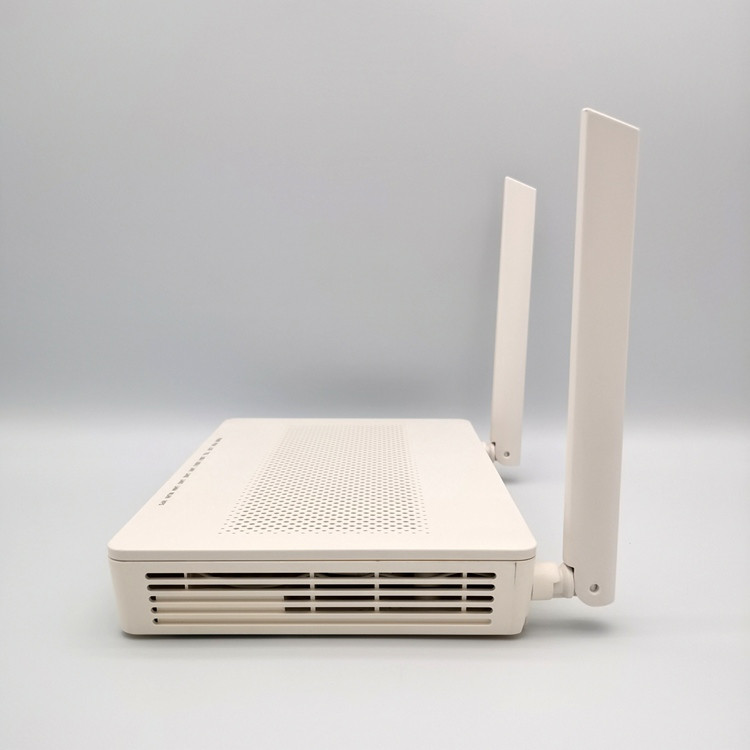

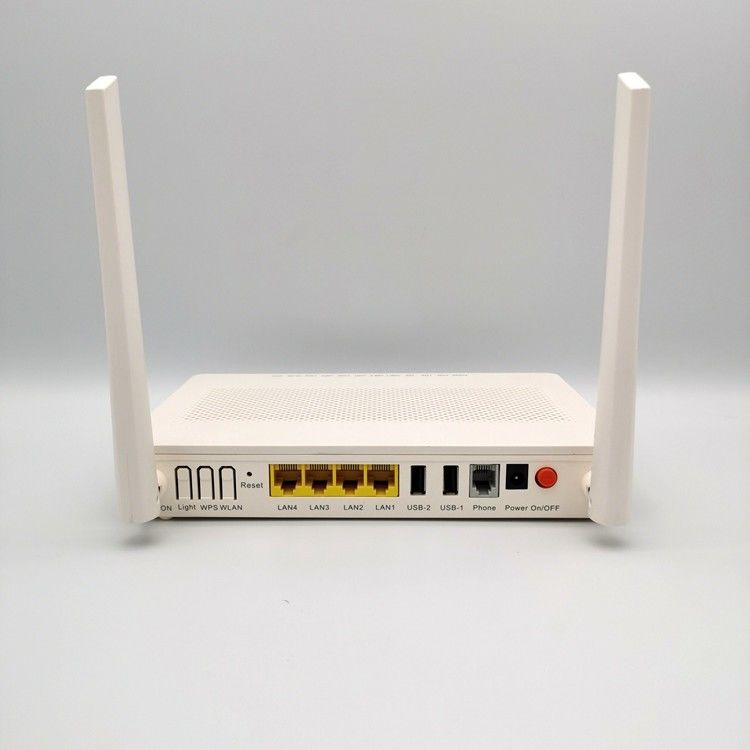

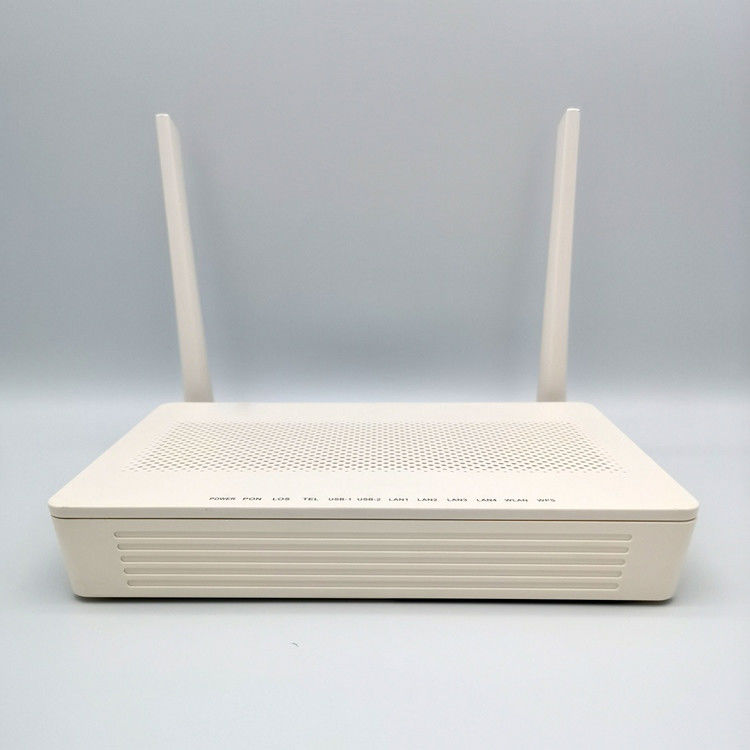

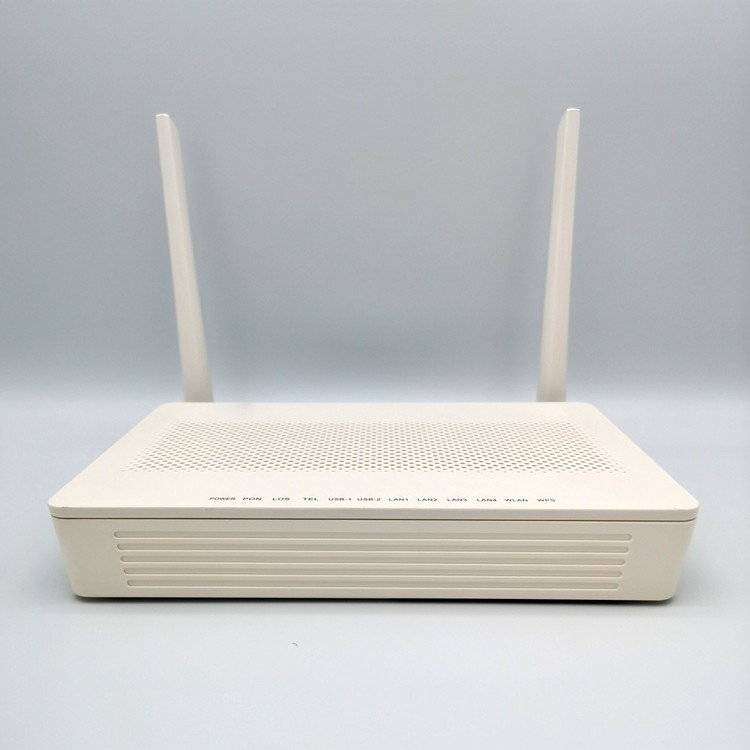

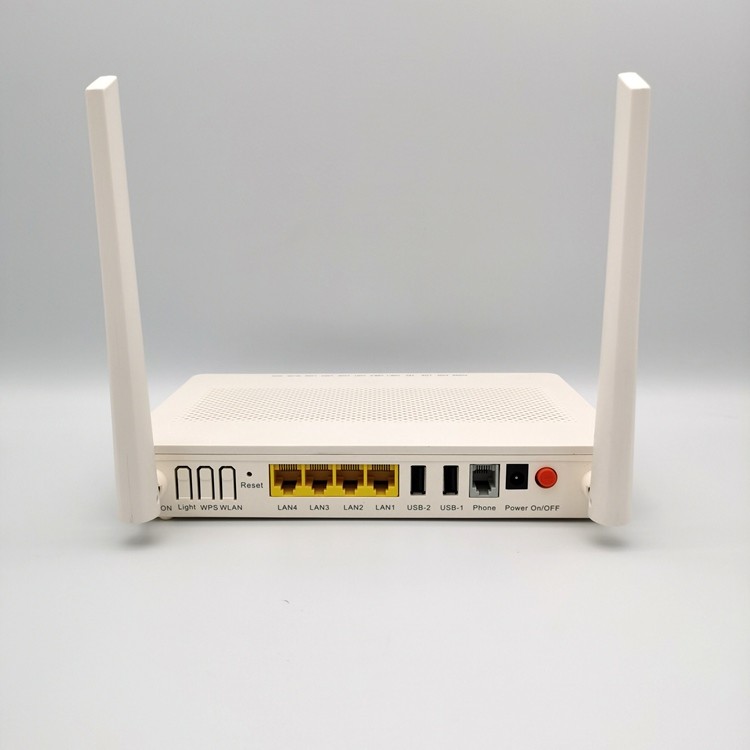

HK668 AC Wifi GPON ONT XPON ONU 2.4g 5g 4GE 1POTS FTTH Modem


HK668 AC Wifi GPON ONT XPON ONU 2.4g 5g 4GE 1POTS FTTH Modem Compatible With HUAWEI ZTE Fiberhome OLT


The HK668 is an FTTH GPON optical network unit. It provides communication and entertainment ervice in multiple modes such as data, voice and video, to meet integrated access requirement of smilies or small enterprises.


The HK668 supports these functions:

• Uses GPON uplink that is compliant with ITU-T G.984 series of standards;

• Supports the configuration of Ethernet interface rates, working modes, MDI / MDIX autonegotiation mode;

• Supports packet filtering and DoS attack protection;

• Provides performance statistics on all Ethernet lines;

• Supports obtaining the user IP address in the DHCP mode, supports reporting the physical position information of Ethernet interfaces through DHCP Option82;

• Supports obtaining the user IP address in the PPPoE mode, supports the PPP0E+ function

for accurate user identification;

• Suports IGMP snooping protocol;

• Supports the L2 / L3 wire speed forwarding;

• Supports the AES-128 algorithm for encryption of downlink data;

• Supports global configuration of queue priorities and flexible 802.1p-to-queue mapping;

• Supports the PQ queue scheduling mode. You can configure the weight of scheduling queue to ensure the QoS of the services with high QoS requirement such as voice and video under multiple service conditions;

• Supports wireless access mode, compliant with the IEEE 802.11 b/g/n standard;

• Supports the authentication modes such as OPEN, SHARED, WPA-PSK, WPA2-PSK, WPA- PSK/WPA2-PSK. Sup ports the encryption modes such as NONE, WEP, TKIP, AES, and TKIP/AES.


Type item Description
Mechanical Parameter Dimension 204mm×149mm×36mm
Weight 0.50Kg
Power Supply DC DC 12V/1.5A
Power Consumption Power Consumption < 12W
Environmental Parameter Operating Condition -5℃~+50℃
Storage Temperature -40℃~+70℃
Environmental Humidity 10%to 90%, non-dondensing


HK668 AC Wifi GPON ONT XPON ONU 2.4g 5g 4GE 1POTS FTTH Modem 0
