HK620D CATV XPON ONU 1ge 3fe catv dual band wifi ont GPON EPON 2.4g 5g wifi ftth modem

Minimum Order Quantity :	20pcs	Price :	Negociatable
Packaging Details :	carton box	Delivery Time :	15 days
Payment Terms :	L/C, T/T	Supply Ability :	20000pcs/Week

Place of Origin:	shenzhen	Brand Name:	CATV ONU
Certification:	CE ROHS Anatel	Model Number:	HK620D

Detail Information
Model:	HK620D	Warranty Time:	1year
Fiber Connector:	SC/APC Connector	Wavelength(nm):	TX 1310nm,RX 1490nm
Use:	FTTX	Material:	Plastic

Product Description

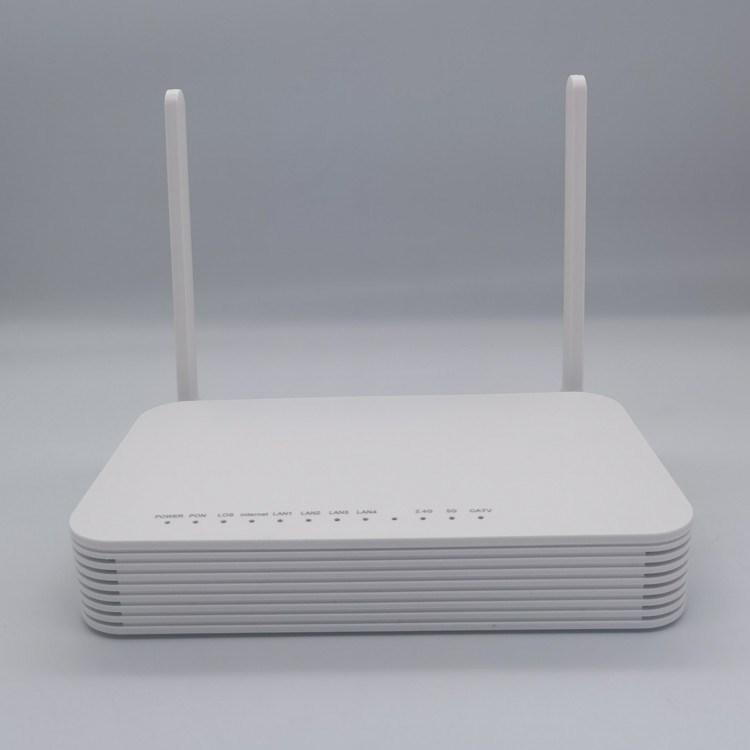

HK620D

HK620 is a home gateway unit equipment of a series of xPON which comply fully with ITU-G.984.1/2/3/4 standard and meet the energy-saving of G.987.3 protocol,onu is based on mature and stable and high cost-effective GPON technology which adopts high-performance xPON ZTE ZX279128 chipset and has high reliability, easy management,flexible configuration,robustness,good quality service guarantee(Qos). HK620 adopts MT7603EN(2.4GHz)+ MT7612EN(5GHz) scheme for WIFI application that supports IEEE802.11b/g/n 802.11a/n/ac standard , at the same time,a WEB system provided simplifies the configuration of the ONU and connects to INTERNET conveniently for users. HK620 has G / E PON mutual conversion function, which is realized by pure software HK620 support one RF signal for TV.

Specification

			Parameters

			HK620D CATV Dual Band English Firmware

			Dimensions (H x W x D)

			223.5*133*41.7mm(mainframe)

			Weight

			0.5Kg(mainframe)

			Operating Temperature

			Operating Temperature

			Firmware Language

			Firmware Language

			Power Adapter Input

			100 V to 240 V AC, 50 Hz/60 Hz

			System Power Supply

			11 V to 14 V DC, 1.5 A

			Static Power Consumption

			3.1W

			Maximum Power Consumption

			7.5W

			Ports

			4GE+WIFI+USB+TEL

			Optical Connector

			Optical Connector

			Indicators

			Power/PON/LOS/LAN/TEL/WLAN/WPS
