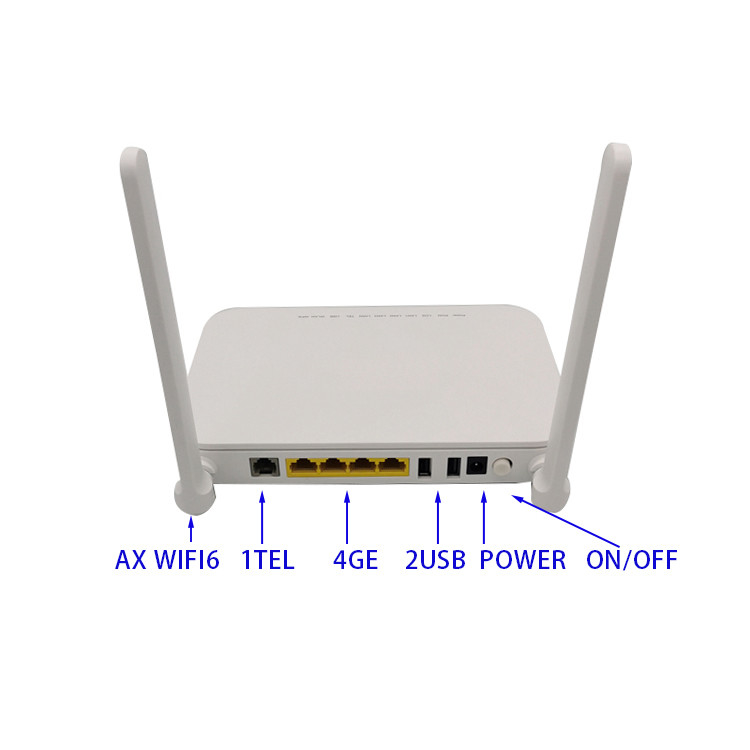

FTTH SC UPC GPON ONU ONT PON LOS LAN WLAN GPON Modem Router
Contact Person : Anna
Phone Number : +852 68416561
WhatsApp : +85268416561
| Minimum Order Quantity : | 10pcs | Price : | Negociatable |
|---|---|---|---|
| Packaging Details : | carton box | Delivery Time : | 15 |
| Payment Terms : | L/C, T/T | Supply Ability : | 20000pcs/Week |
| Place of Origin: | CHINA | Brand Name: | GPON EPON ONT |
|---|---|---|---|
| Certification: | CE ROHS Anatel | Model Number: | EG8145X6 |
|
Detail Information |
|||
| Use: | FTTX, FTTH | Warranty Time: | 1 YEAR |
|---|---|---|---|
| Network: | WIFI | Firmware: | English |
| Type: | ONT GPON With Wi-Fi 6 | Power Supply Input: | 100-240 V AC, 50/60 Hz |
Product Description
SPECIFICATION
Features / filters
Number of LAN ports
4x 10/100/1000BaseTX (RJ45)
Number of WAN ports
1x RJ11
PON standard
GPON
Wireless network standards
IEEE 802.11ax
USB port
2x USB
VoIP ports
1x POTS
Basic general data
Manufacturer
Huawei
Model
EG8145X6
Type
ONT GPON with Wi-Fi 6
Interface parameters
GPON port
Class B
Receiver sensitivity: -27 dBm
Optical power at overload: -8 dBm
Wavelength: US 1310 nm, DS 1490 nm
Wavelength Blocking Filter (WBF) G.984.5
Flexible mapping between GEM Port and TCONT
GPON: SN or password authentication compliant as defined in G.984.3
Bidirectional FEC
SR-DBA and NSR-DBA
Type B (single-homing
POTS port
Maximum REN value: 4
Encoding/decoding G.711A/μ, G.729a/b and G.722
Fax mode T.30/T.38/G.711
DTMF
Emergency call (with SIP protocol)
USB port
USB2.0
FTP based network storage
SAMBA based file/print sharing
DLNA function
WLAN
IEEE 802.11 b/g/n/ax (2.4G)
IEEE 802.11 a/n/ac/ax (5G)
2 × 2 MIMO (2.4G)
2 × 2 MIMO (5G)
Antenna Gain: 5 dBi
WMM/Multiple SSID/WPS
2.4G
Ethernet port
Ethernet port-based VLAN tagging and tag removal
1:1 VLAN, N:1 VLAN or transparent broadcast VLAN
QinQ VLAN
MAC address learning limit
MAC address learning
Auto-adaptive 10 Mbit/s, 100 Mbit/s or 1000 Mbit/s
Product features
Smart connection
Smart connection
Intelligent Wi-Fi coverage
SIP/H.248 auto-negotiation
Any port, any service
Parental control
Intelligent Service
Scheduled Wi-Fi network shutdown
Smart Wi-Fi sharing: Portal/802.1x authentication; SoftGRE-based sharing
Intelligent operation and maintenance
IPTV video quality diagnostics
eMDI
Detection and isolation of rogue ONT from OLT
Connection emulation, circuit test and loop line test
PPPoE/DHCP simulation testing
WLAN emulation
Multicast
IGMP v2/v3 proxy/snooping
MLD v1/v2 snooping
Joint operation and maintenance
OMCI/Web UI/TR069
Variable-length OMCI messages
Backing up and restoring two-system software
Energy saving
Energy saving indicator
COC V7
Security
SPI Firewall
Filtering based on MAC/IP/URL addresses
QoS
Ethernet port speed limit
802.1p Priority
SP/WRR/SP WRR
Broadcast packet rate limiting
Layer 3 functions
PPPoE/Static IP/DHCP
NAT/NAPT
Port forwarding
ALG, UPnP
DDNS/ DNS Server/ DNS Client
Dual stack IPv6/IPv4, DSLite and IPv6 SPI
Static/Default Routing
Multiple services on one WAN port
Device parameters
Memory
128M Flash, 256M RAM
Home network function
Visualization of home network management
User-defined bandwidth allocation
Wi-Fi Optimization and Wi-Fi Roaming
Wi-Fi Network Operation and Maintenance
Intelligent Identification and Interference Protection
Maximum power consumption
18 W
Static energy consumption
6 W
Power supply input
100-240 V AC, 50/60 Hz
System power supply
11-14 V DC, 1.5 A
Operating temperature
0°C to 40°C
Operating humidity
5% RH to 95% RH (noncondensing)
Indicators
Power/PON/LOS/LAN/TEL/USB/WLAN/WPS
Weight
Approximately 372 g
Dimensions (H x W x D) (without external antenna and pads)
35 mm x 195 mm x 125 mm
