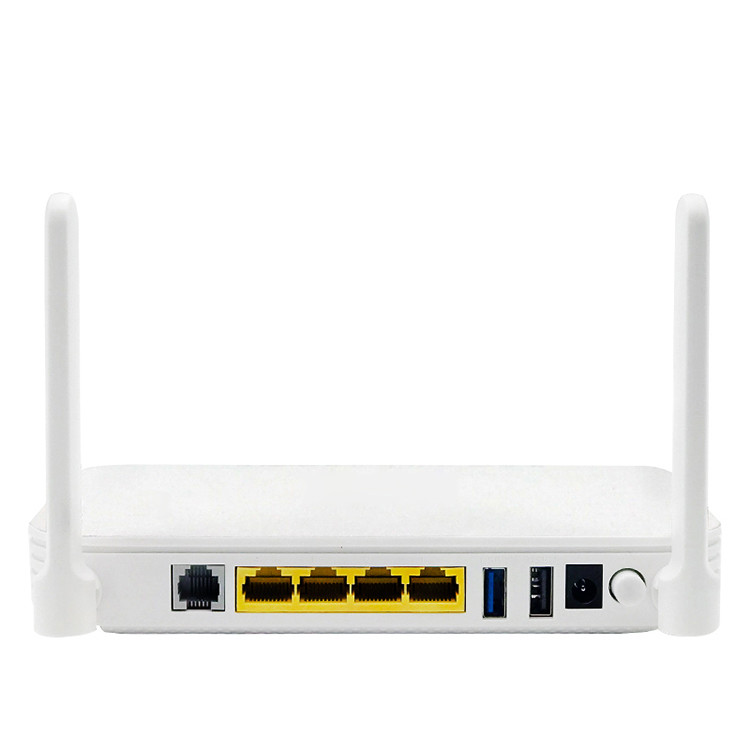

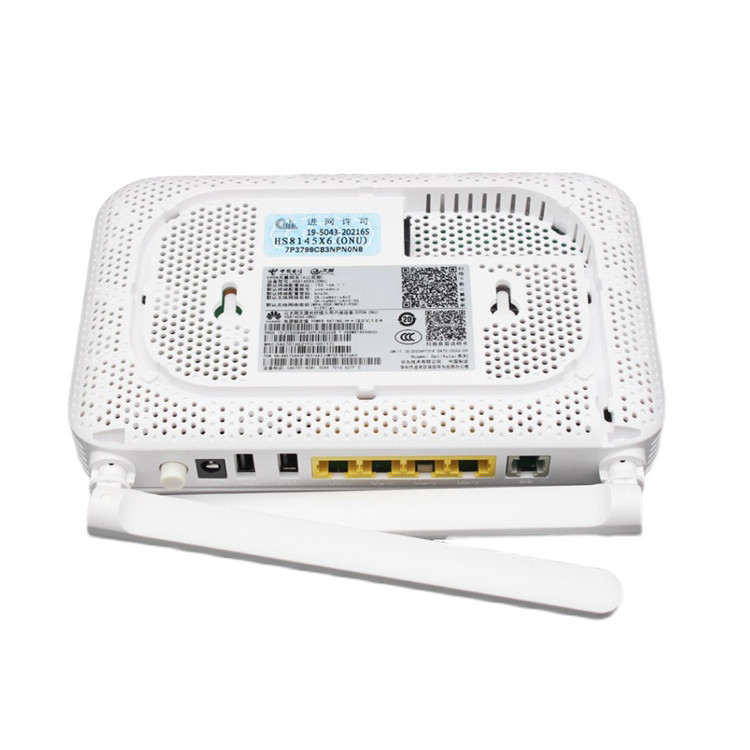

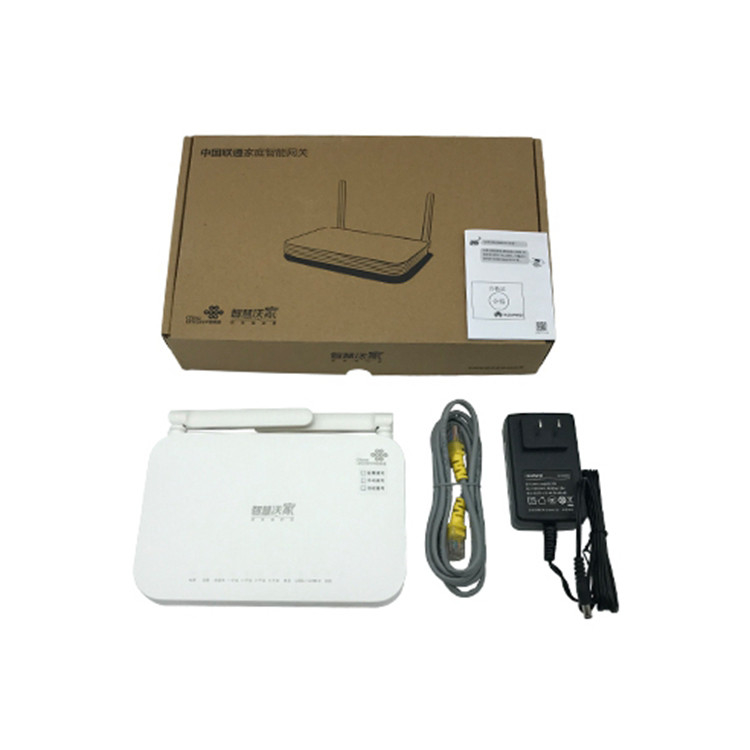

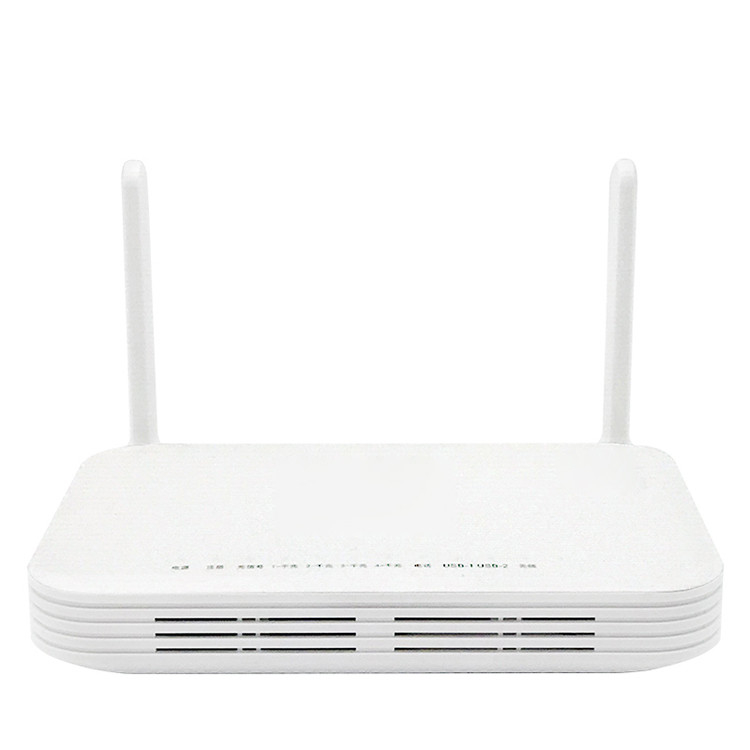

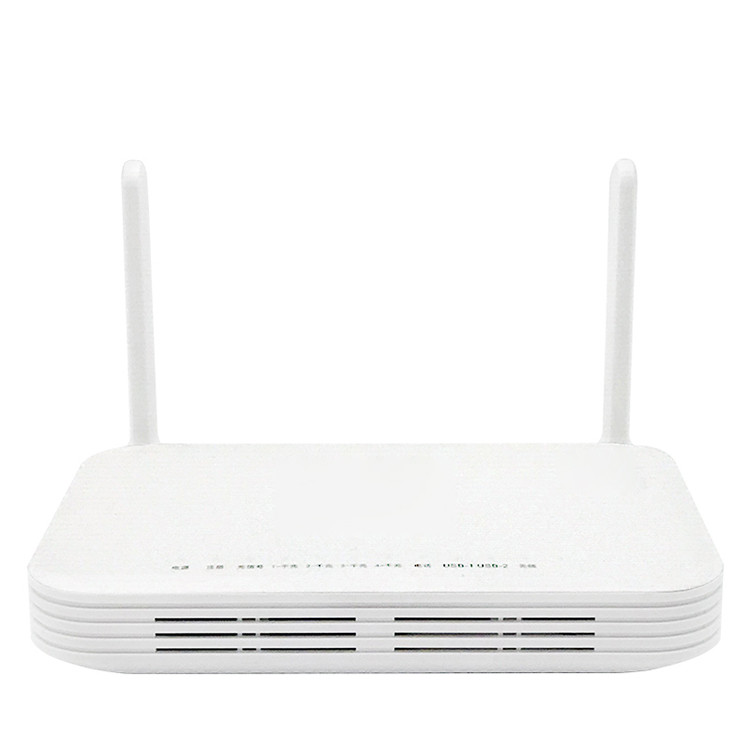

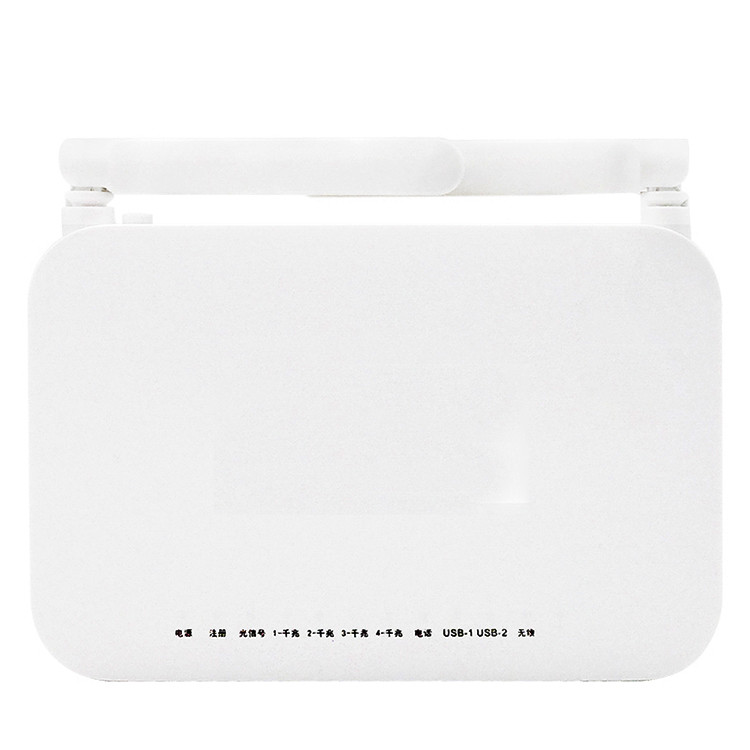

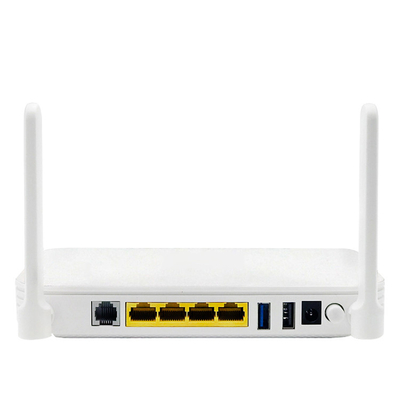

Echolife HN8346V5 10G PON ONU ONT FTTH is XG-PON Optical Terminal with 4GE Port+1POTS +2 USB+2.4G/5G WIFI English Firmware.
|Out Port contains
|1*10/100/1000Mbps adaptive Ethernet ports, full/half duplex, RJ45 interface
|H248/Sip Voice protocol
|1 10G-EPON interface, ingle-fiber, Downstream rate 2.5Gbps, Upstream rate 1.25Gbps
|Tx 1310nm, Rx 1490nm
|SC/FC-UPC/APC Dual mode/Singal mode
|12V 2.0A, external AC-DC power adapter
|Working temperature: -5- +55℃ working humidity:10-90%(non-condensation)
|Storage temperature: -30℃- +60℃ storage humidity: 10-90%(non-condensation)
10G PON ONT Rate Evolution
PON terminals are greatly faster than xDSL/LAN terminals and are the mainstream choice for home users. With network development, the following issues occur:
To address the preceding issues, the 10G PON technology is introduced. It can reach a rate of up to 10 Gbit/s.
- EPON and GPON technologies cannot provide sufficient bandwidths for increasingly bandwidth-intensive services.
- As user-side access technologies are continuously developing and user access bandwidths are continuously increasing, the EPON and GPON technologies will become bandwidth bottlenecks.
- The split ratio and transmission distance directly affect the investment in network construction.
Echolife HN8346V5 10G PON ONT FTTH Product Overview
HN8346V5 10G FTTH is an intelligent Wi-Fi 6 routing-type Optical Network Terminal with four GE ports, one POTS port, and two USB port, and 2.4G and 5G Wi-Fi connectivity.
Huawei HN8346V5 10G FTTH adopts Gigabit Passive Optical Network (GPON) technology to offer ultra-broadband access, high performance, and wide coverage for users, ensuring an exceptional experience for voice, data, and High Definition (HD) video services and future-oriented service support capabilities and visualized network management, Huawei HS8145X6 10G FTTH supports enterprises construct powerful all-optical access solutions.
