HS8145V5 for Huawei Ont dual frequency WIFI FTTH GPON ONU 4GE 1TEL AC WIFI
Contact Person : Anna
Phone Number : +852 68416561
WhatsApp : +85268416561
Minimum Order Quantity : | 50pcs | Price : | $11.8-$13.5 |
---|---|---|---|
Packaging Details : | Carton Box | Delivery Time : | 7-15days |
Payment Terms : | T/T,Western Union | Supply Ability : | 10000pcs/Week |
Place of Origin: | China | Brand Name: | HUAWEI |
---|---|---|---|
Certification: | CE ROHS Anatel | Model Number: | HG8245C |
Detail Information |
|||
Chipset: | Hisilicon | Lan: | 4 |
---|---|---|---|
Use: | FTTH | WiFi: | 2.4GHz |
Optical Interface: | SC/UPC Interface Class B+ | WiFi Standard: | 2 X 2 MIMO 802.11b/g/n |
Maximum Number Of MAC Addresses Learned: | 1024 | Power Supply: | EU Power / US Power/ UK Power Optional |
Product Description

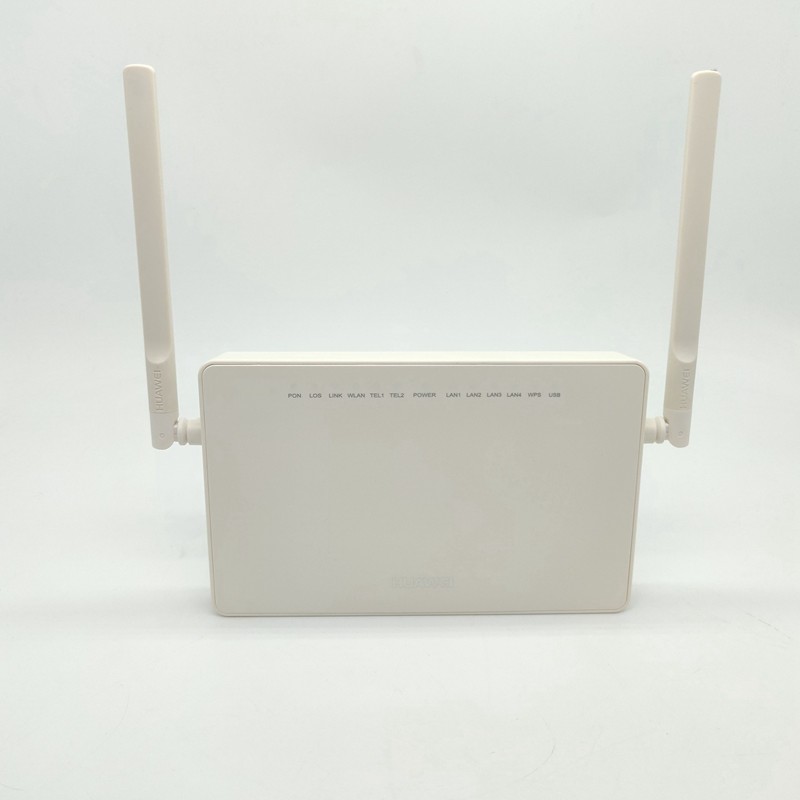

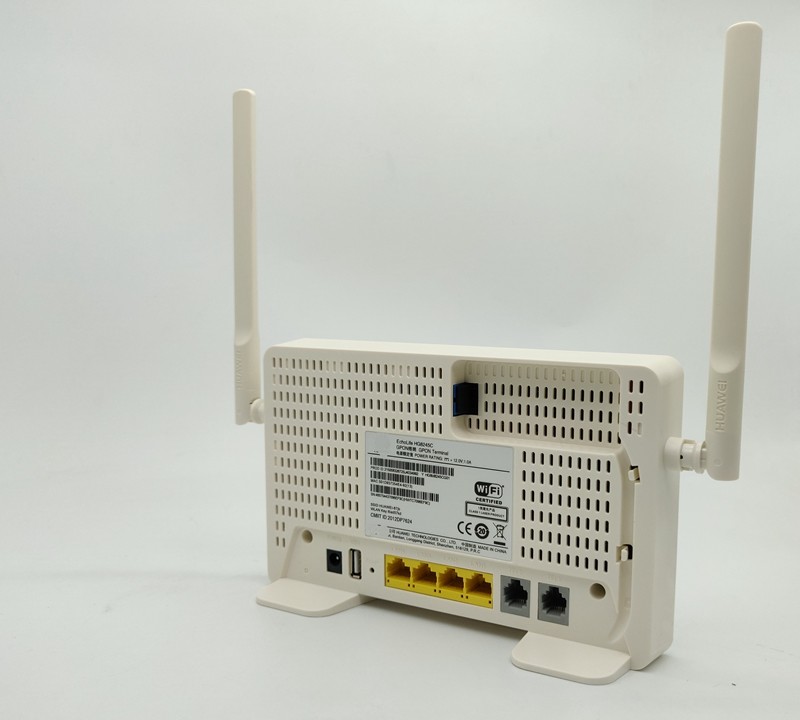

HUAWEI GPON ONU HG8245C 4FE 2POTS 1USB 2.4G WiFi FTTH Router Modem
The convergence and high-density features of Huawei OLT can help operators effectively simplify network architecture, reduce network nodes, reduce station sites, computer rooms and other supporting facilities, reduce equipment investment and operation and maintenance costs, and improve network deployment efficiency; at the same time, PON/10G PON/GE/10GE common platform can realize smooth network evolution and protect investment; OLT’s full service access realizes unified access of individuals, enterprises, and base stations, reducing network construction costs, enriching user service experience, and enhancing service stickiness. Increase ARPU value.
Huawei HG8245C FTTH Product Specification
Brand | Huawei |
Model | HG8245C |
Port | 4xFE+2xPOTS+1xUSB+WIFI |
Optical interface | GPON / EPON SC/UPC |
Class B+ | |
Working environment | Operating temperature: 0ºC to 40ºC |
Environment humidity: 5% to 95% (noncondensing) | |
Power specifications | Power adapter input: 90 to 270 V AC, 50–60 Hz |
System power supply: 11–14 V DC, 2 A | |
Antenna gain | 5dBi |
Weight | About 0.5 kg |
NNI |
GPON |
Optical interface |
SC/UPC interface |
UNI |
4FE+WiFi+USB |
WiFi standard |
2 x 2 MIMO 802.11b/g/n |
Antenna gain |
2dBi |
Dimensions(W x D x H) |
156mm×125mm×30mm |
Power supply |
Power supply: 11-14V DC, 1A; |
Operating temperature and operating humidity |
0°C-+40°C; |
Cooling |
Passive cooling |
Maximum number of MAC addresses learned |
1024 |
L2 forwarding capability |
2 Gbit/s downstream (with any length packets); |
IPv4 L3 forwarding capability |
2 Gbit/s downstream (with any length packets); |
IPv6 L3 forwarding capability |
500 Mbit/s (V300R013C00 to V300R015C00); |
