Home ProductsZTE GPON ONUF660 V8.0 ZTE GPON ONU English Firmware Hisilicon Chipset WiFi Router Modem

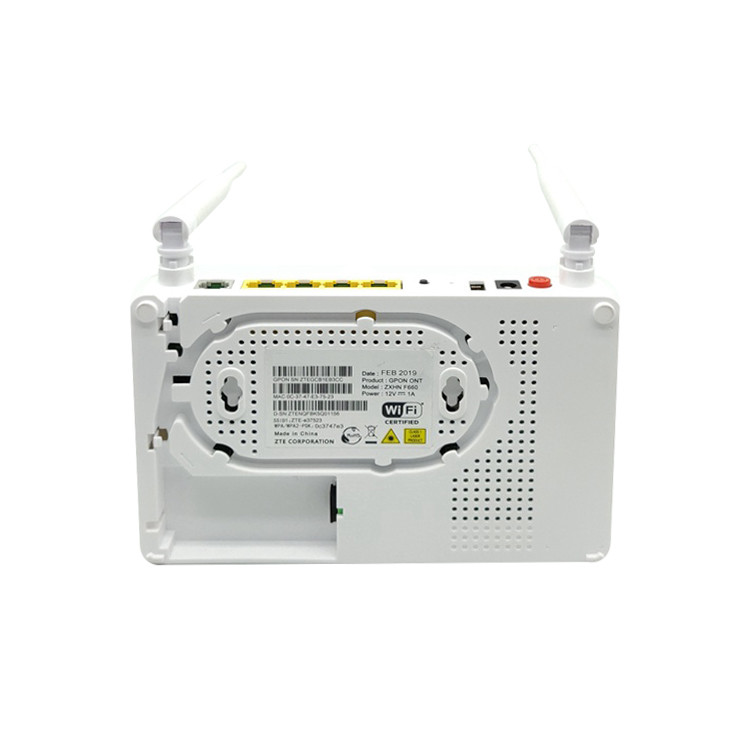

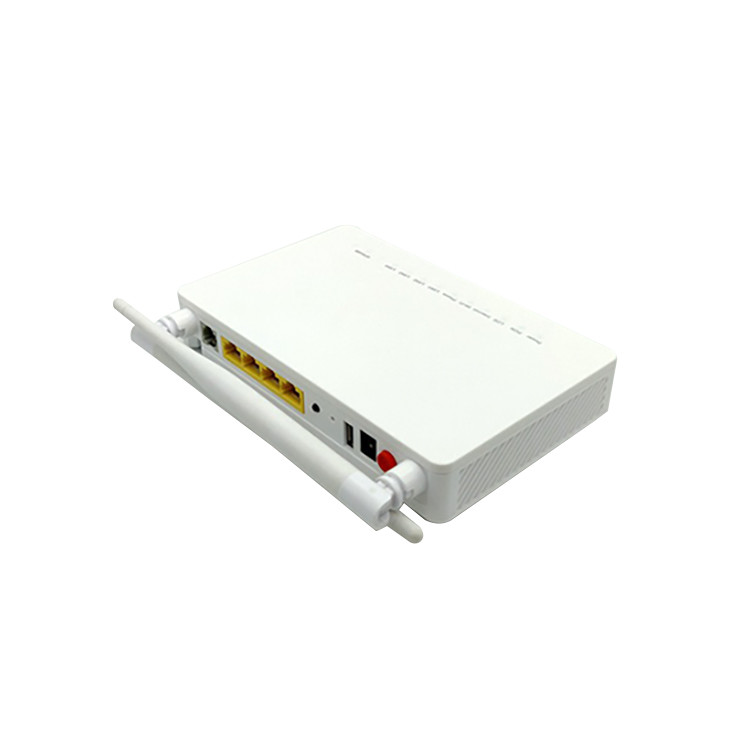

F660 V8.0 ZTE GPON ONU English Firmware Hisilicon Chipset WiFi Router Modem
F660 V8.0 ZTE GPON ONU English Firmware Hisilicon Chipset WiFi Router Modem
F660 V8.0 ZTE GPON ONU English Firmware Hisilicon Chipset WiFi Router Modem F660 V8.0 ZTE GPON ONU English Firmware Hisilicon Chipset WiFi Router Modem F660 V8.0 ZTE GPON ONU English Firmware Hisilicon Chipset WiFi Router Modem F660 V8.0 ZTE GPON ONU English Firmware Hisilicon Chipset WiFi Router Modem F660 V8.0 ZTE GPON ONU English Firmware Hisilicon Chipset WiFi Router Modem F660 V8.0 ZTE GPON ONU English Firmware Hisilicon Chipset WiFi Router Modem
Contact Now

F660 V8.0 ZTE GPON ONU English Firmware Hisilicon Chipset WiFi Router Modem

Minimum Order Quantity : 50pcs Price : US $11.9-12.6
Packaging Details : Carton Box Delivery Time : 7-15days
Payment Terms : T/T,Western Union Supply Ability : 5000pcs/Week
Place of Origin: China Brand Name: ZTE
Certification: CE ROHS Anatel Model Number: F660 V8.0

Detail Information
Ports Model: 1ge 3fe 1tel Wifi 1voice Type Version: GPON Epon
Weight: 120 Dimensions (H X W X D): 100X100X10CM
Chipset: Hisilicon Firmware: English Firmware
Operating Temperature: 0°C To +40°C Operating Humidity: 5% RH To 95% RH (non-condensing)
Power Adapter Input: 100 V To 240 V AC, 50 Hz/60 Hz System Power Supply: 11 V To 14 V DC, 1.5 A
Optical Connector: SC/APC SC/UPC Indicators: Power/PON/LOS/LAN/TEL/WLAN/WPS
Power Supply: EU Power / US Power/ UK Power Optional

Product Description

                                   ZTE F660 V8.0 1ge 3fe voice 1tel wifi 5dbi onu ont olt network

Overview

Quick Details

Model Number: ZXA F660V8.0
Type: Gpon/ Epon , ONT ONU
Place of Origin: Guangdong, China
Brand Name: ZTE
Use: Terminal
Warranty Time: 1 year
Name: ZTE F660V8.0
Condition: Original and Brand New
Antenna: 5 dBi
Ports: 1GE+3FE+1TEL+Wi-Fi
Optical connecto: SC/UPC, SC/APC
Color: White
Gross Weight: About 330g
MOQ: 50 SET
Single-Mode Fiber: SMF
Application: FTTH FTTB FTTX Network

Specification
item
value
Fiber port
1 GPON interface, SC single-mode/single-fiber, Downstream rate 2.5Gbps, Upstream rate 1.25Gbps
Wavelength
Tx 1310nm, Rx 1490nm
Fiber interface
SC/PC
RX sensitivity
<-28dBm (1490nm)
WLAN
IEEE802.11b/g/n,300Mbps, a built-in antenna
LAN
1*10/100/1000Mbps adaptive Ethernet ports, full/half duplex, RJ45 interface
Throughput
Throughput can reach 900Mbps or more
DC power
12V 1A, external AC-DC power adapter
Button
Reset, power
Color
White
Power
≤8W
Operation
Working temperature: -5-+55ºC working humidity:10-90%(non-condensation)
Storage
Storage temperature: -30ºC-+60ºC storage humidity: 10-90%(non-condensation)
Net weight
≤0.2Kg
Power supply
American/EU,Chinese standard
Transmit rate
2.488Gbps downstream; 1.244Gbps upstream

F660V8.0, an optical network terminal (ONT), is a high-end home gateway in FTTH solution. By using the GPON technology,
ultra-broadband access is provided for home and SOHO users.
The F660 provides 1* POTS ports, 1GE+3FE(or 4* FE )auto-adapting Ethernet ports, and 2* Wi-Fi port. The F660 features
high-performance forwarding capabilities to ensure excellent experience with VoIP, Internet and HD video services. Therefore, the
F660 provides a perfect terminal solution and future oriented service supporting capabilities for FTTH deployment.

For any detailed information, please send us an inquiry, thank you.

Product Description

Fiber Optical Unit Zte Ont ONU F660 V8 Sc/Upc Gpon Ont with 5dBi WiFi Antenna Zxhn F660 V8 Chipset, ONU F660 V8Fiber Optical Unit Zte Ont ONU F660 V8 Sc/Upc Gpon Ont with 5dBi WiFi Antenna Zxhn F660 V8 Chipset, ONU F660 V8Fiber Optical Unit Zte Ont ONU F660 V8 Sc/Upc Gpon Ont with 5dBi WiFi Antenna Zxhn F660 V8 Chipset, ONU F660 V8Fiber Optical Unit Zte Ont ONU F660 V8 Sc/Upc Gpon Ont with 5dBi WiFi Antenna Zxhn F660 V8 Chipset, ONU F660 V8
ZTE F660 V8.0: 1GE +3Fe+1Tel + WIFI + USB

ZTE F600 V6.0:GPON 2GE
ZTE F600 V6.0: GPON 2GE+2FE English Firmware
ZTE F600W(5.0): GPON 4FE+WIFI+1USB Internal antenna English Firmware
ZTE F600W(5.2): GPON 4GE+WIFI+1USB External antenna English Firmware
ZTE F612(5.0): GPON 2FE+1POTS English Firmware
ZTE F612W(5.0): 2FE+1POTS+WIFI+1USB English Firmware
ZTE F660 V5.0: GPON 4FE+2PHONE+WIFI+USB Internal antenna English Firmware
ZTE F660 V6.0:GPON 1GE+3FE+1PHONE+WIFI+USB Internal antenna English Firmware
ZTE F660 V5.2: GPON 4GE+2PHONE+WIFI+USB External antenna English Firmware
ZTE F400G: GEPON 4GE English Firmware

Fiber Optical Unit Zte Ont ONU F660 V8 Sc/Upc Gpon Ont with 5dBi WiFi Antenna Zxhn F660 V8 Chipset, ONU F660 V8Fiber Optical Unit Zte Ont ONU F660 V8 Sc/Upc Gpon Ont with 5dBi WiFi Antenna Zxhn F660 V8 Chipset, ONU F660 V8Fiber Optical Unit Zte Ont ONU F660 V8 Sc/Upc Gpon Ont with 5dBi WiFi Antenna Zxhn F660 V8 Chipset, ONU F660 V8Fiber Optical Unit Zte Ont ONU F660 V8 Sc/Upc Gpon Ont with 5dBi WiFi Antenna Zxhn F660 V8 Chipset, ONU F660 V8Fiber Optical Unit Zte Ont ONU F660 V8 Sc/Upc Gpon Ont with 5dBi WiFi Antenna Zxhn F660 V8 Chipset, ONU F660 V8Fiber Optical Unit Zte Ont ONU F660 V8 Sc/Upc Gpon Ont with 5dBi WiFi Antenna Zxhn F660 V8 Chipset, ONU F660 V8Fiber Optical Unit Zte Ont ONU F660 V8 Sc/Upc Gpon Ont with 5dBi WiFi Antenna Zxhn F660 V8 Chipset, ONU F660 V8
