Place of Origin:	China	Brand Name:	ZTE
Certification:	CE ROHS Anatel	Model Number:	ZTE F663

Detail Information
Ports:	1GE+3FE+1VOICE+5DBIWiFi	Type:	XPON/epon EPON
Weight:	120	Dimensions (H X W X D):	100X100X10CM
Chipset:	Hisilicon	Firmware:	English Firmware
Operating Temperature:	0°C To +40°C	Operating Humidity:	5% RH To 95% RH (non-condensing)
Power Adapter Input:	100 V To 240 V AC, 50 Hz/60 Hz	System Power Supply:	11 V To 14 V DC, 1.5 A
Optical Connector:	SC/APC SC/UPC	Indicators:	Power/PON/LOS/LAN/TEL/WLAN/WPS
Power Supply:	EU Power / US Power/ UK Power Optional
High Light:	ZTE F663 FTTH ONT Modem , 1GE 3FE FTTH ONT Modem , USB 1POTS FTTH ONT Modem

Product Name	F663
Place of Origin	Guangdong,China
Type	FTTx Solutions Fiber Adapter & Connectors, Route/Bridge
Connector Type	SC/UPC APC
Warranty	1 Year
Delivery time	3~10 working days
Ports	4FE+2TEL+1USB+WIFI
Power supply	EU, US, UK, AU
Certification	CE RoHS FCC
WIFI signal	2.4GWiFi
Wireless gain	5db
USB	/
LAN	1*10/100Mbps adaptive Ethernet ports, full/half duplex, RJ45 interface
TEL	H248/Sip Voice protocol
PPPOE	support
Firmware	English
Dimension/weight	220mm160mm40mm/342g
Fiber port	1 GPON interface, ingle-fiber, Downstream rate 2.5Gbps, Upstream rate 1.25Gbps
Wavelength	Tx 1310nm, Rx 1490nm
Fiber interface	SC/FC-UPC/APC Dual mode/Singal mode
RX sensitivity	>-28dBm (1490nm)
DC power	12V 1.5A, external AC-DC power adapter
Button	Reset, power,LIGHT
Operation	Working temperature: -5- +55℃ working humidity:10-90%(non-condensation)
Storage	Storage temperature: -30℃- +60℃ storage humidity: 10-90%(non-condensation)

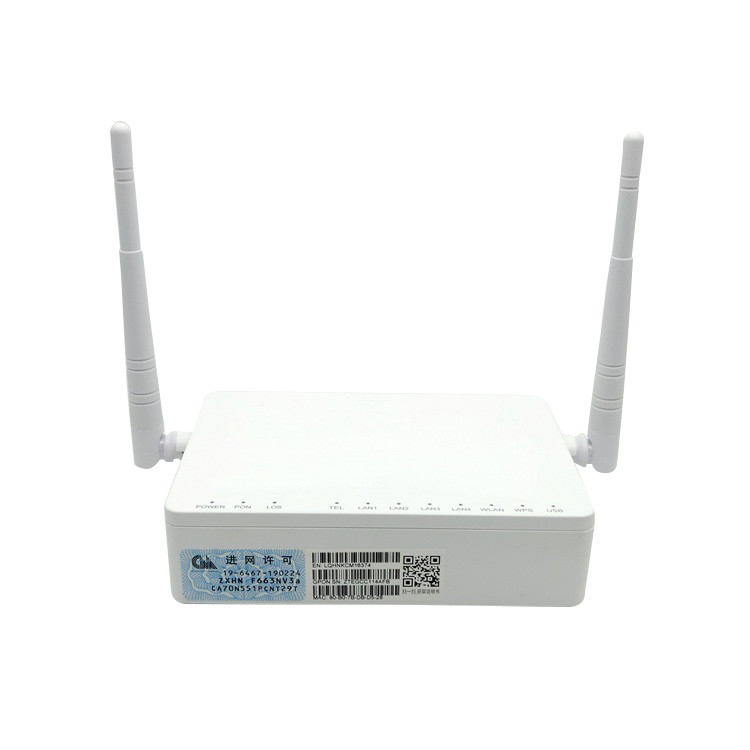

ZTE F663 FTTH ONT Modem 1GE 3FE USB 1POTS WIFI GPON ONU 100V - 240V AC

ZTE F663 FTTH ONT Modem
