Hg8546m Gpon ONU Router 1GE 3FE 1POTS 1USB WiFi With PPOE Bridge Mode
Hg8546m Gpon ONU Router 1GE 3FE 1POTS 1USB WiFi With PPOE Bridge Mode
Hg8546m Gpon ONU Router 1GE 3FE 1POTS 1USB WiFi With PPOE Bridge Mode Hg8546m Gpon ONU Router 1GE 3FE 1POTS 1USB WiFi With PPOE Bridge Mode Hg8546m Gpon ONU Router 1GE 3FE 1POTS 1USB WiFi With PPOE Bridge Mode Hg8546m Gpon ONU Router 1GE 3FE 1POTS 1USB WiFi With PPOE Bridge Mode Hg8546m Gpon ONU Router 1GE 3FE 1POTS 1USB WiFi With PPOE Bridge Mode Hg8546m Gpon ONU Router 1GE 3FE 1POTS 1USB WiFi With PPOE Bridge Mode
Contact Now

Hg8546m Gpon ONU Router 1GE 3FE 1POTS 1USB WiFi With PPOE Bridge Mode

Minimum Order Quantity : 100pcs Price : US $13.8-15.5
Packaging Details : carton box Delivery Time : 10-15days
Payment Terms : T/T, Western Union Supply Ability : 10000pcs/week
Place of Origin: china Brand Name: huawei
Certification: CE Rosh Model Number: hg8546m

Detail Information
Product Name: HUAWEI GPON ONT Type: ONU ONT
Certification: CE ROSH Warranty: 1years
Power Supply: 12V 1A Optical Interface: SC UPC
Tpye: HG8546M Pom Model: 1GE+3FE
High Light:

Hg8546m Gpon ONU Router

,

PPOE Bridge Gpon ONU Router

Product Description

HG8546M GPON/EPON 1GE 3FE 1TEL WIFI 5DBI ONU ONT



Description/Introduction of GPON ONU ONT



Ftth epon ont wifi HG8456M sc/apc upc gpon onu english firmware

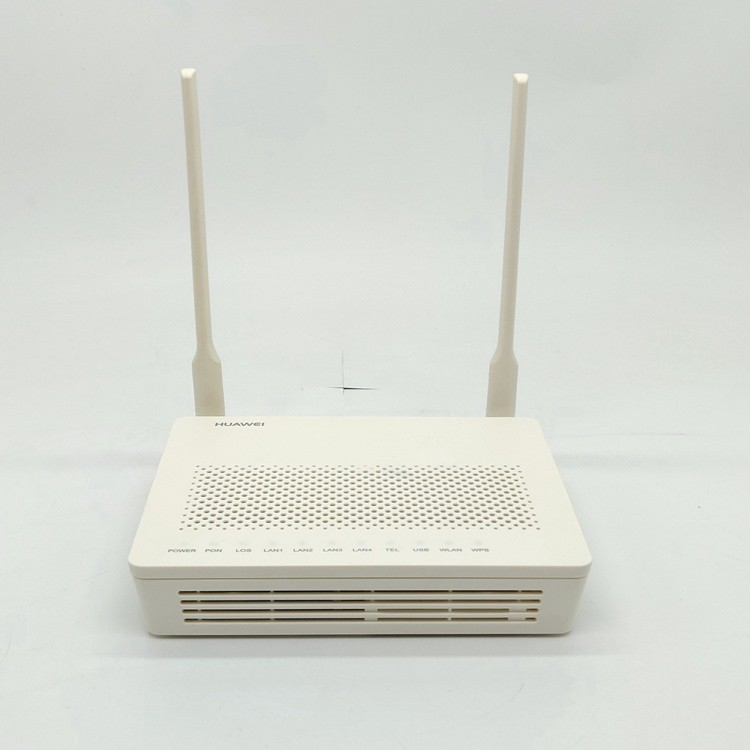

The EchoLife HG8546M is a routing-type ONT in the all-optical access solution. It uses the GPON technology to implement ultra broadband access for users, and provides 1GE port, 3 FE ports,1 POTS port and 1 2.4G WiFi port. The high forwarding performance ensures the user experience of data and HD video services, and provides customers with an ideal all-optical access solution and future-oriented service support capability.



Huawei Gpon Epon onu ont HG8456M Same function as EG8141A5

The EchoLife HG8546M provides one GE port, one POTS port, three FE ports and supports 2.4G Wi-Fi. The ONT features high-performance forwarding capabilities to ensure excellent experiences with VoIP, Internet, and HD video services. These features make the HG8546M a perfect choice for broadband access.



Parameters
EchoLife HG8546M
Dimensions (H x W x D)
152 x 105 x 30 mm
Weight
192g
Operating Temperature
0°C to +40°C
Operating Humidity
5% RH to 95% RH (non-condensing)
Power Adapter Input
100 V to 240 V AC, 50 Hz/60 Hz
System Power Supply
11 V to 14 V DC, 1.5 A
Static Power Consumption
3.1W
Maximum Power Consumption
7.5W
Ports
1 POTS + 1 GE + 3 FE + 2.4G Wi-Fi
Optical Connector
SC/APC
Indicators
Power/PON/LOS/LAN/TEL/WLAN/WPS


Optic Fiber Echolife GPON EPON ONT Router


HG8546M 1GE 3FE 1POT WIFI Router ONU






1.Full compatible with ITU-T G.984.
2.Support port-based rate limitation and bandwidth control
3.Integrated OMCI remote configuration and maintenance function.
4.Support data enscryption, group broadcasting, port Vlan separation ,RSTP,etc.
5.Support Dynamic Bandwidth Allocation (DBA)
6.Support ONT auto-discovery/Link detection/remote upgrade of software;
7.Support VLAN division and user separation to avoid broadcast storm;
8.Support power-off alarm function ,easy for link problem detection
9.Support broadcasting storm resistance function
10.Support port isolation between different ports
11.Support ACL and SNMP to configure data packet filter flexibly
12.Specialized design for system breakdown prevention to maintain stable system
13.Support software online upgrading
14.EMS network management based on SNMP ,convenient for maintenance



Hg8546m Gpon ONU Router 1GE 3FE 1POTS 1USB WiFi With PPOE Bridge Mode 0

Hg8546m Gpon ONU Router 1GE 3FE 1POTS 1USB WiFi With PPOE Bridge Mode 1



Hg8546m Gpon ONU Router 1GE 3FE 1POTS 1USB WiFi With PPOE Bridge Mode 2
Hg8546m Gpon ONU Router 1GE 3FE 1POTS 1USB WiFi With PPOE Bridge Mode 3Hg8546m Gpon ONU Router 1GE 3FE 1POTS 1USB WiFi With PPOE Bridge Mode 4Hg8546m Gpon ONU Router 1GE 3FE 1POTS 1USB WiFi With PPOE Bridge Mode 5Hg8546m Gpon ONU Router 1GE 3FE 1POTS 1USB WiFi With PPOE Bridge Mode 6Hg8546m Gpon ONU Router 1GE 3FE 1POTS 1USB WiFi With PPOE Bridge Mode 7Hg8546m Gpon ONU Router 1GE 3FE 1POTS 1USB WiFi With PPOE Bridge Mode 8



Our Services



1. Quick Reply: Your inquiry related to our products or price will be replied within 24 hours.

2. OEM&ODM: We can help you to design and put your good idea into products.

3. Warranty: 365days





FAQ

We are new in this PON fields, can you help me and recommend me some items?

Yes, of course. It is our pleasure to help you with it.

You only need to offer us more details about your application.



OEM/ODM Service is available?

Yes, V-Solution have strong ability to offer customers ODM&OEM ONU ONT of highest quality.

And it will require the MOQ.
