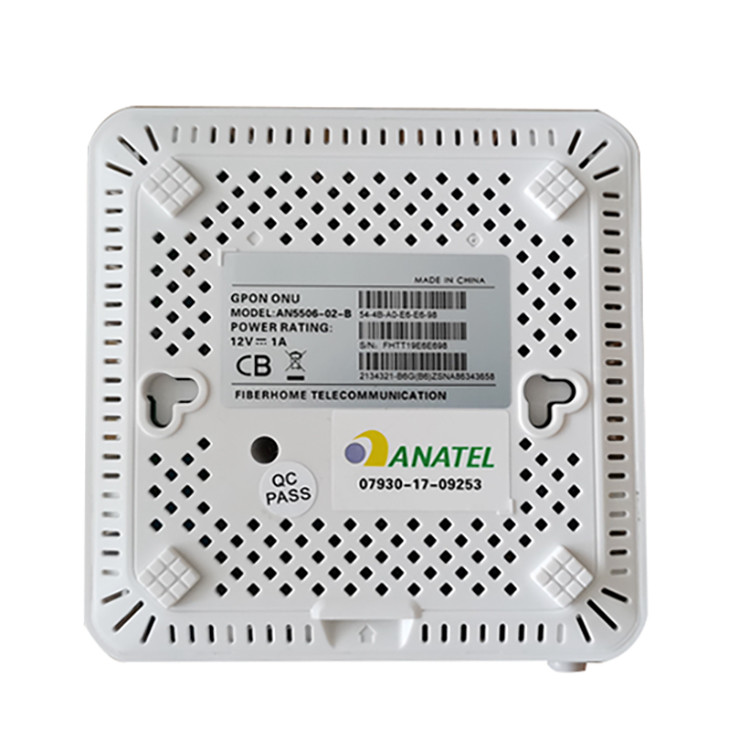

AN5506-02-B GPON ONU ONT 1GE 1FE 1TEL Hisilicon Chipset English Firmware

Minimum Order Quantity : 50pcs Price : $7.3-8.6
Packaging Details : Carton Box Delivery Time : 7-15days
Payment Terms : T/T,Western Union Supply Ability : 10000pcs/Week
Place of Origin: China Brand Name: GPON ONU
Certification: CE ROHS Anatel Model Number: AN5506-02-B

Detail Information

Chipset: Hisilicon Firmware: English
Dimensions (H X W X D): 580*380*350mm Weight: 13.5KG
Ports: AN5506-02-B GPON,1GE+1FE+1TEL WLAN1: 2.4GHz 2 * 2 MIMO 802.11b/g/n
L2 Forwarding Capability: 200 Mbit/s Down/upstream System Power Supply: 12V 1.0A
Optical Connector: SC/UPC Indicators: Power/PON/INTERNET/LAN//USB
Power Supply: EU Power / US Power/ UK Power Optional
High Light:

Hisilicon Chipset GPON ONU ONT

,

1FE GPON ONU ONT

Product Description

Fiberhome ONU Cheap Price Ont An5506-02-B Mini 1Ge+1FE Gpon Onu



Product Description

Model Number: AN5506-02-B
Type: Gpon/ Epon, ONT ONU
Place of Origin: Guangdong, China
Brand Name: FiberHome
Use: Terminal
Warranty Time: 1 year
Name: FiberHome AN5506-02-B
Condition: Original and Brand New
Antenna: External antenna
Ports: AN5506-02-B GPON,1GE+1FE+1TEL
Optical connecto: SC/UPC, SC/APC
Color: White
Gross Weight: About 400g
MOQ: 50 SET
Single-Mode Fiber: SMF
Application: FTTH FTTB FTTX Network



Product Introduction


GPON ONTs series equipments are manufactured and developed by FiberHome for home and SOHO users used in FTTH solution.
They are properly managed with
features such as high-bandwidth, high-reliability, low power consumption and satisfy the user's triple-play requirements. AN5506-02-B is a FiberHome ONT without Wi-Fi.

Product Details
FiberHome GPON ONTs provide these key features:
- Suitable for home broadband, e-governmerit and enterprise access with integrated access demands of broadband/voice/data/video etc.
- Providing complete series of FTTH solutions for pure data, double play and triple play services, both indoor and outdoor types can be applied to meet the different
application environment.
- Smart connection by multiple kinds of UN Is: GE/FE, POTS, Wi-Fi, CATV.
- User-friendly GUI with plug-in and play capability instead of field configuration High efficiency management and maintenance with port-based mode configuration as
well as port-based status query.
- Telecom-level reliability in hardware/software and other system design to fully guarantee the normal operation of equipment.
FAQ

1: All indicator LEDs are extinguished after power-on.
1. Check whether the power cable is correctly connected;
2. Check whether the power supply and the power adapter are normal;
3. Check whether the power switch on the device's rear panel is in the ON position.
FAQ2: The device fails to work.
1. If the device works abnormally, check whether the power is connected normally or the voltage
is not within specifications;
2. If the equipment is overheated, check the ventilation. Make sure the equipment is not exposed
to direct sunshine or is near the heat source.
FAQ3: The LOS indicator LED blinks.
1. Check whether the optical fiber is damaged;
2. Check whether the optical fiber is connected normally to the appropriate interface;
3. Check whether the received optical power of the ONU is below specifications with an optical power meter;
4. Check whether the ONU optical module is aged or damaged;
5. Check whether the device at the central office end is operating normally.
FAQ4: The LAN indicator LED is extinguished.
1. Check if the network cable is damaged or incorrectly connected;
2. Check if the wiring color-coding scheme of the network cable is incorrect. If so, replace
the original network cable with a standard CAT-5 twisted-pair network cable;
3. Check if the network cable crosses the allowed range.
FAQ5: The ONU cannot be visited via WIFI.
1. Check whether the WIFI function for the ONU is enabled, and whether the SSID is set to
"Hidden" so that the WIFI signal cannot be detected.
2. Check whether the network card driver is normally installed on the computer and whether the
WLAN function for the wireless terminals like computers and mobile phones is enabled.
3. Adjust the location of the ONU, so as to reduce obstacles such as walls on the path of the signal.
The distance between the ONU and the wireless terminals should be within the required range.
FAQ6: Logging into the Web page failed.
1. Check the network card configuration and the browser version of the user's computer;
2. Check whether the IP address of the user's computer is correctly configured.









AN5506-02-B GPON ONU ONT 1GE 1FE 1TEL Hisilicon Chipset English Firmware 0AN5506-02-B GPON ONU ONT 1GE 1FE 1TEL Hisilicon Chipset English Firmware 1AN5506-02-B GPON ONU ONT 1GE 1FE 1TEL Hisilicon Chipset English Firmware 2AN5506-02-B GPON ONU ONT 1GE 1FE 1TEL Hisilicon Chipset English Firmware 3AN5506-02-B GPON ONU ONT 1GE 1FE 1TEL Hisilicon Chipset English Firmware 4AN5506-02-B GPON ONU ONT 1GE 1FE 1TEL Hisilicon Chipset English Firmware 5
