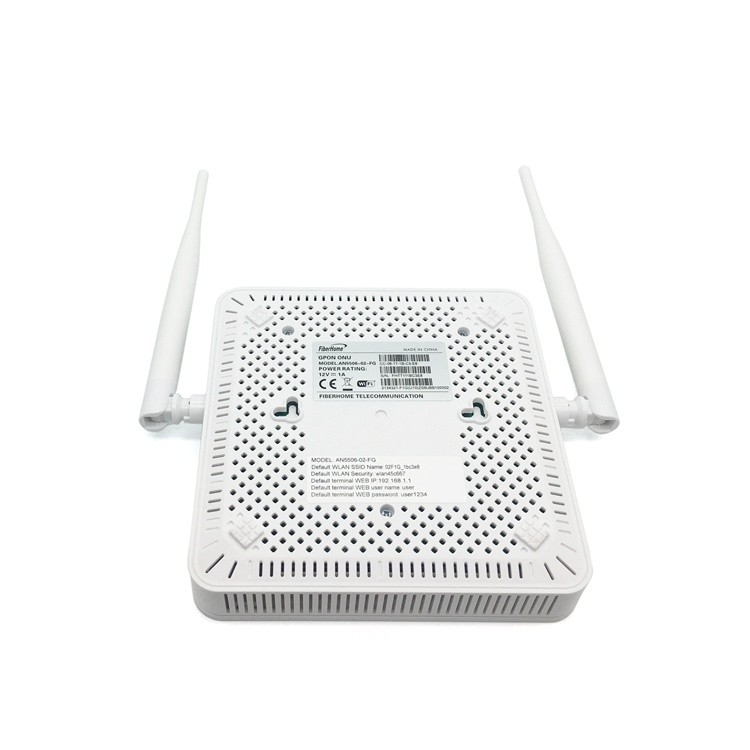

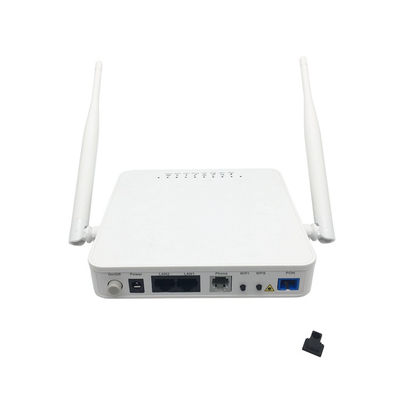

SMF SC UPC Optical Network Terminal 1GE 1FE 1TEL GPON Modem Router

Minimum Order Quantity : 50pcs Price : US $17.5-18.5
Packaging Details : Carton Box Delivery Time : 7-15days
Payment Terms : T/T,Western Union Supply Ability : 10000pcs/Week
Place of Origin: China Brand Name: FiberHome
Certification: CE ROHS Anatel Model Number: AN5506-02-FG

Detail Information

Type: Gpon/ Epon, ONT ONU Use: FTTH
CPU: Descriptions WLAN: 2.4GHz
Place Of Origin: Guangdong, China Antenna: External Antenna
Optical Connecto: SC/UPC, SC/APC Single-Mode Fiber: SMF
Warranty Time: 1 Year
High Light:

SMF Optical Network Terminal


SC UPC Optical Network Terminal


1TEL GPON Modem Router

Product Description


                Factory Price English Firmware An5506-02-Fg 1ge+1fe+1pots

         Optical Network Terminal Gpon Modem Router Xpon Ont Gpon ONU








Product Description

Model Number: AN5506-02-FG
Type: Gpon/ Epon, ONT ONU
Place of Origin: Guangdong, China
Brand Name: FiberHome
Use: Terminal
Warranty Time: 1 year
Name: FiberHome AN5506-02-FG
Condition: Original and Brand New
Antenna: External antenna
Ports: AN5506-02-FG GPON,1GE+1FE+1TEL+WIFI
Optical connecto: SC/UPC, SC/APC
Color: White
Gross Weight: About 400g
Single-Mode Fiber: SMF
Application: FTTH FTTB FTTX Network


Product Introduction
The AN5506-02-FG is a GPON optical network unit with high performance and low power consumption.
It is used in FTTH network to provide subscribers with Internet access, multicast and
voice services and meet the demand
for broadband access of family subscribers.
The AN5506-02-
FG supports these functions:
1.Uses GPON uplink that is compliant with ITU-T G.984 series of standards;
2.Supports the configuration of Ethernet interface rates, working modes, MDI / MDIX auto-negotiation mode,and Pause flow control;
3.Supports voice protocols including H.248 and SIP; and supports multiple voice encoding modes;
4.Supports packet filtering and protection against illegal packets; suppresses unknown unicast, multicast and broadcast packets;
5.Provides performance statistics on all Ethernet lines;
6.Supports obtaining the user IP address in the DHCP mode, supports reporting the physical position information of
Ethernet interfaces through DHCP Option82;

7.Supports obtaining the user IP address in the PPPoE mode, supports the PPPoE+ function for accurate user identification;
8.Supports IGMP snooping protocol;
9.Supports the L2 / L3 wire speed forwarding;
10.Supports the NAT function;
11.Supports the WEB configuration function;
12.Supports the AES-128 algorithm for encryption of downlink data;
13.Provides the QoS function; supports global configuration of queue priority and flexible mapping of the 802.1p values for packet priority.
14.Supports the PQ, WRR and PQ+WRR queue scheduling modes. Users can configure the weight of scheduling queue
to ensure the quality of the services with high QoS
requirement such as video services under multiple service conditions;
15.Supports wireless access mode, compliant with the IEEE 802.11 b/g/n standard;
16.Supports the following authentication modes: OPEN, SHARED, WPA-PSK, WPA2-PSK and WPA-PSK/WPA2-PSK;
supports the following encryption modes: NONE, WEP,

SMF SC UPC Optical Network Terminal 1GE 1FE 1TEL GPON Modem Router 0SMF SC UPC Optical Network Terminal 1GE 1FE 1TEL GPON Modem Router 1SMF SC UPC Optical Network Terminal 1GE 1FE 1TEL GPON Modem Router 2SMF SC UPC Optical Network Terminal 1GE 1FE 1TEL GPON Modem Router 3SMF SC UPC Optical Network Terminal 1GE 1FE 1TEL GPON Modem Router 4

FAQ1: All indicator LEDs are extinguished after power-on.
1. Check whether the power cable is correctly connected;
2. Check whether the power supply and the power adapter are normal;
3. Check whether the power switch on the device's rear panel is in the ON position.
FAQ2: The device fails to work.
1. If the device works abnormally, check whether the power is connected normally or the voltage
is not within specifications;
2. If the equipment is overheated, check the ventilation. Make sure the equipment is not exposed
to direct sunshine or is near the heat source.
FAQ3: The LOS indicator LED blinks.
1. Check whether the optical fiber is damaged;
2. Check whether the optical fiber is connected normally to the appropriate interface;
3. Check whether the received optical power of the ONU is below specifications with an optical power meter;
4. Check whether the ONU optical module is aged or damaged;
5. Check whether the device at the central office end is operating normally.
FAQ4: The LAN indicator LED is extinguished.
1. Check if the network cable is damaged or incorrectly connected;
2. Check if the wiring color-coding scheme of the network cable is incorrect. If so, replace
the original network cable with a standard CAT-5 twisted-pair network cable;
3. Check if the network cable crosses the allowed range.
FAQ5: The ONU cannot be visited via WIFI.
1. Check whether the WIFI function for the ONU is enabled, and whether the SSID is set to
"Hidden" so that the WIFI signal cannot be detected.
2. Check whether the network card driver is normally installed on the computer and whether the
WLAN function for the wireless terminals like computers and mobile phones is enabled.
3. Adjust the location of the ONU, so as to reduce obstacles such as walls on the path of the signal.
The distance between the ONU and the wireless terminals should be within the required range.
FAQ6: Logging into the Web page failed.
1. Check the network card configuration and the browser version of the user's computer;
2. Check whether the IP address of the user's computer is correctly configured.
SMF SC UPC Optical Network Terminal 1GE 1FE 1TEL GPON Modem Router 5SMF SC UPC Optical Network Terminal 1GE 1FE 1TEL GPON Modem Router 6SMF SC UPC Optical Network Terminal 1GE 1FE 1TEL GPON Modem Router 7SMF SC UPC Optical Network Terminal 1GE 1FE 1TEL GPON Modem Router 8SMF SC UPC Optical Network Terminal 1GE 1FE 1TEL GPON Modem Router 9SMF SC UPC Optical Network Terminal 1GE 1FE 1TEL GPON Modem Router 10
1:Is your PON ONT & ONU product compatible with my OLT device ?

Our ONT ONU Products compatbile with 99% of OLT brand, including HUAWEI ZTE Nokia Fiberhome & all OEM OLT
We can provide Unlock OLT Service For you if you need any OLT Equipment configuration support

2: Are you a manufacturer ?

Yes! We are manufacturer of FTTH PON ONU ONT Routers in china with more than 10years experience
We provide our products and technical service for different ISP company in over than 30 countries in the past 10years

3: Where is your company located?

Our company is located in shenzhen, China. Our office and warehouse is Near Guangzhou and hongkong,
We can provide better and economic delivery solution and payment solution for you.

4: How can I get the sample? What's the lead time?

By DHL/UPS/FedEx express. Samples lead time is 3-7days.

5: How does your company control product quality?

All Brand name ONT and OEM ONT we sold is original brand New and 100% tested before shipment,
We used good quality material for all component like power adaper / antenna We guarantee the good quality for 1-3years ,
We can provide fast and effective technical support remotly If Any OLT ONU configuration support you need .

6: Do you provide ODM/OEM service?

OEM/ODM is welcome, For printing your own logo and customized firmware, MOQ only 100pcs-1000pcs,
We have happy to do ODM OEM service for you

7: How to place the order?

a: please contact us to confirm the model and price of your order
b: We will issue the Proforma invoice for your to final confirm the order and delivery detail
c: Pay Deposit or full payment by (T/T Western-Union Trade-Assurance )
d: Your order will effected and ship out in time per the PI / Contract
