Home ProductsGPON ONU ONTHuawei CATV EG8143A5 GPON ONU ONT 1GE 3FE 1TEL WiFi 5dBi AC Router

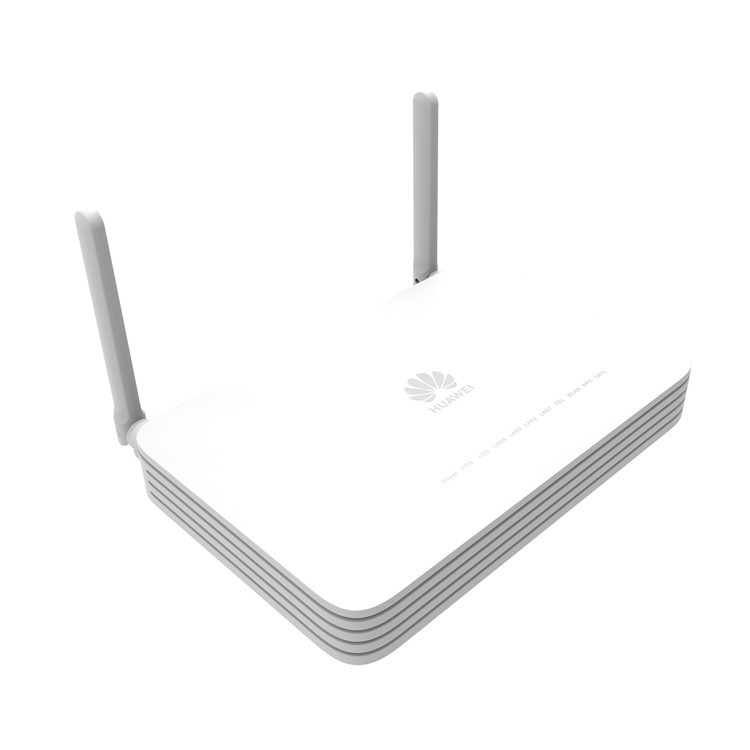

Huawei CATV EG8143A5 GPON ONU ONT 1GE 3FE 1TEL WiFi 5dBi AC Router
Huawei CATV EG8143A5 GPON ONU ONT 1GE 3FE 1TEL WiFi 5dBi AC Router
Huawei CATV EG8143A5 GPON ONU ONT 1GE 3FE 1TEL WiFi 5dBi AC Router Huawei CATV EG8143A5 GPON ONU ONT 1GE 3FE 1TEL WiFi 5dBi AC Router Huawei CATV EG8143A5 GPON ONU ONT 1GE 3FE 1TEL WiFi 5dBi AC Router Huawei CATV EG8143A5 GPON ONU ONT 1GE 3FE 1TEL WiFi 5dBi AC Router Huawei CATV EG8143A5 GPON ONU ONT 1GE 3FE 1TEL WiFi 5dBi AC Router Huawei CATV EG8143A5 GPON ONU ONT 1GE 3FE 1TEL WiFi 5dBi AC Router
Contact Now

Huawei CATV EG8143A5 GPON ONU ONT 1GE 3FE 1TEL WiFi 5dBi AC Router

Minimum Order Quantity : 100pcs Price : USD30-32/pcs
Packaging Details : Packed with Polyfoam, Outer Packed with Brown Box Delivery Time : 5-8days
Payment Terms : T/T Supply Ability : 100000/week
Place of Origin: China Brand Name: HKING
Certification: CE,ISO,RoHS Model Number: EG8143A5

Detail Information
COLOR: WHITE Usage: FTTH
Firmware: English Condition: New
PON: XPON
High Light:

1GE 3FE GPON ONU ONT

,

EG8143A5 GPON ONU ONT

Product Description

Product Description

Original Huawei CATV EG8143A5 EPON XGPON Gpon onu 1GE+3FE 1TEL with English version
Product Description



Model Configuration Dimension/pcs
LAN Telephone Wifi PPPOE Firmware
CATV EG8143A5 1GE+3FE 1pots yes yes English 250*185*35mm/0.44kgs
Remarks External Antenna
Features:
1 .Full compatible with ITU-T G.984.
2.Support port-based rate limitation and bandwidth control
3.Integrated OMCI remote configuration and maintenance function.
4.Support data enscryption, group broadcasting, port Vlan separation ,RSTP,etc.
5.Support Dynamic Bandwidth Allocation (DBA)
6.Support ONT auto-discovery/Link detection/remote upgrade of software;
7.Support VLAN division and user separation to avoid broadcast storm;
8.Support power-off alarm function ,easy for link problem detection
9.Support broadcasting storm resistance function
10.Support port isolation between different ports
11.Support ACL and SNMP to configure data packet filter flexibly
12.Specialized design for system breakdown prevention to maintain stable system
13.Support software online upgrading
14.EMS network management based on SNMP ,convenient for maintenance
Hardware Specifications
PON Interface
Interface Type
SC/PC, CLASS B+
Rate
Uplink: 1.25Gbps; Downlink: 2.5Gbps
User-Side Interface
1*10/100/1000BASE-T;1*10/100BASE-T;1*RF interface
Size (Mm)
167(L)×118(W)×30(H)
Maximum Power Consumption
<8W
Weight
120g
Operating Environment
Temperature: -10°C ~ 55°C
Humidity: 5% ~ 95% (no condensation)
Power Supply
External Power Adapter 12V/1A
Power Adapter Input
100-240V AC, 50/60Hz
Power Interface Size
metal inner diameter: φ2.1±0.1mmouter diameter : φ5.5±0.1mm; length: 9.0±0.1mm
WLAN Module
External dual antenna, antenna gain 5db, antenna power 16~21dbm
Support 2.4GHz, 300M transmission rate

Tag:

EG8141A5 Optical Network Terminal

1GE 3FE gpon onu wifi router

USB TEL FTTH GPON EPON
