HS8145V HUAWEI GPON ONU Dual Band 2.4g 5g WiFi FTTH EPON ONT

Minimum Order Quantity :	50pcs	Price :	US $22-23.5
Packaging Details :	Carton Box	Delivery Time :	7-15days
Payment Terms :	T/T,Western Union	Supply Ability :	10000pcs/Week

Place of Origin:	China	Brand Name:	GPON ONU
Certification:	CE ROHS Anatel	Model Number:	HS8145V

Detail Information
Chipset:	Hisilicon	Firmware:	English Firmware
Dimensions (H X W X D):	250x130 X 35mm	Weight:	650g
Ports:	4GE +1TEL+1USB+2.4g/5g Wi-Fi Dual Band	Operating Temperature:	0°C To +40°C
Operating Humidity:	5% RH To 95% RH (non-condensing)	Power Adapter Input:	100 V To 240 V AC, 50 Hz/60 Hz
System Power Supply:	11 V To 14 V DC, 1.5 A	Optical Connector:	SC/APC
Indicators:	Power/PON/LOS/TEL/LAN/WPS/USB	Type:	GPON ONU ONT
Power Supply:	EU Power / US Power/ UK Power Optional
Highlight:	Dual Band HUAWEI GPON ONU , HS8145V HUAWEI GPON ONU , WiFi FTTH EPON ONT

Product Description

HUAWEI HS8145V GPON ONU ONT DUAL BAND WiFi AC 2.4g/5g FTTH 4GE 1TEL 1USB Termial

The Echo Life HS8145V GPON ONU, an optical network terminal (ONT), is a high-end home in FTTH solution.

By using the GPON technology, ultra-broadband access is provided for home and SOHO users. The HS8145V provides 1 POTS port, 4GE Ethernet ports,1USB port and dual band wireless,2.4G/5G,featuring high-performance forwarding capabilities to ensure excellent experience with VoIP, Internet and IPTV services.

HS8145V Specification

Model	HUAWEI Echolife HS8145V
Dimensions (H x W x D)	250x130 x 35mm
Weight	0.65Kg (Include Package)
Operating Temperature	0°C to 40°C
Operating Humidity	5% RH to 95% RH (non-condensing)
Power Adapter Input	100 V to 240 V AC, 50 Hz/60 Hz
System Power Supply	11 V to 14 V DC, 1.5A
Ports	4GE +1TEL+1USB+2.4g/5g Wi-Fi Dual band
Optical Connector	SC / UPC
Indicators	Power/PON/LOS/TEL/LAN/WPS/USB

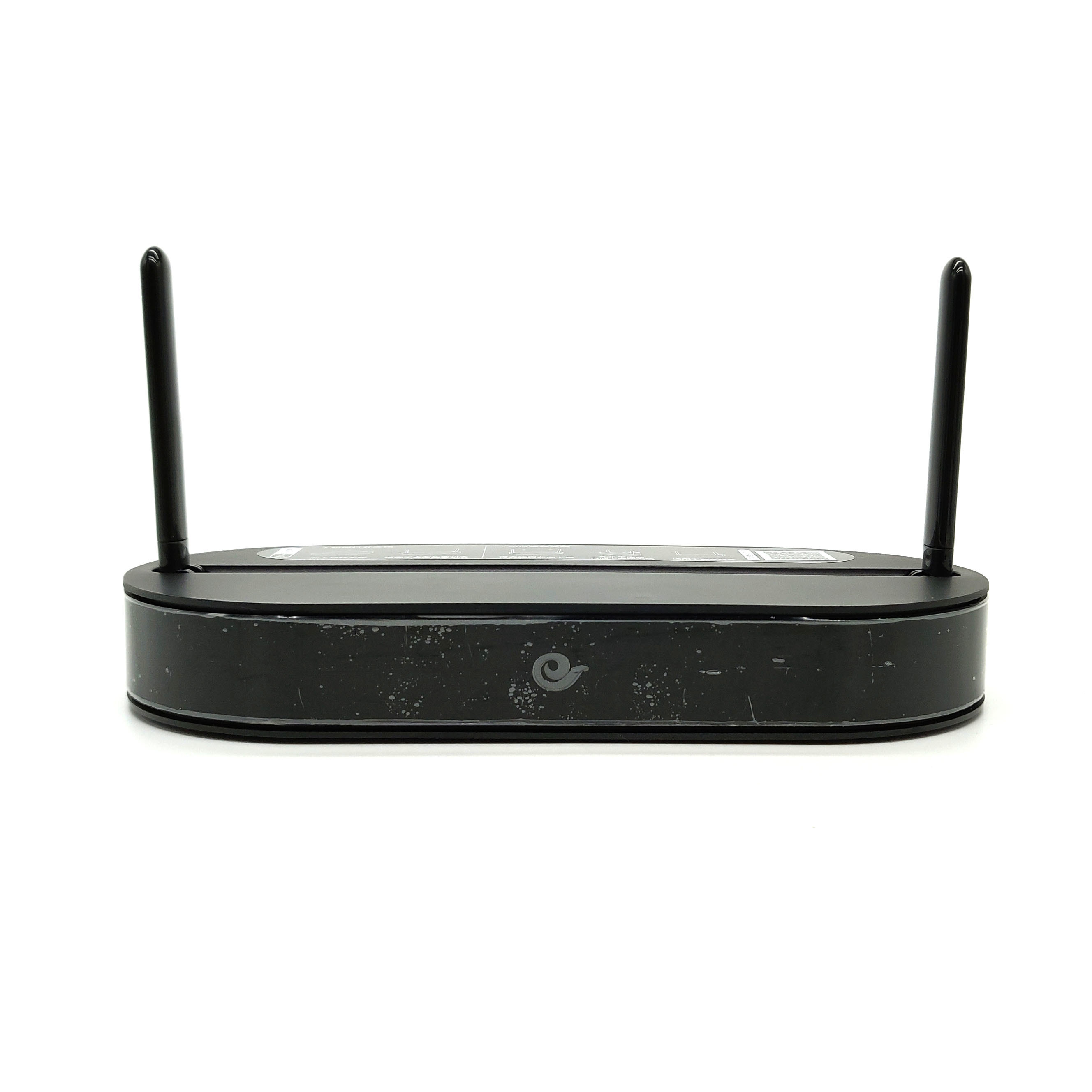

HS8145V HUAWEI GPON ONU Dual Band 2.4g 5g WiFi FTTH EPON ONT 0

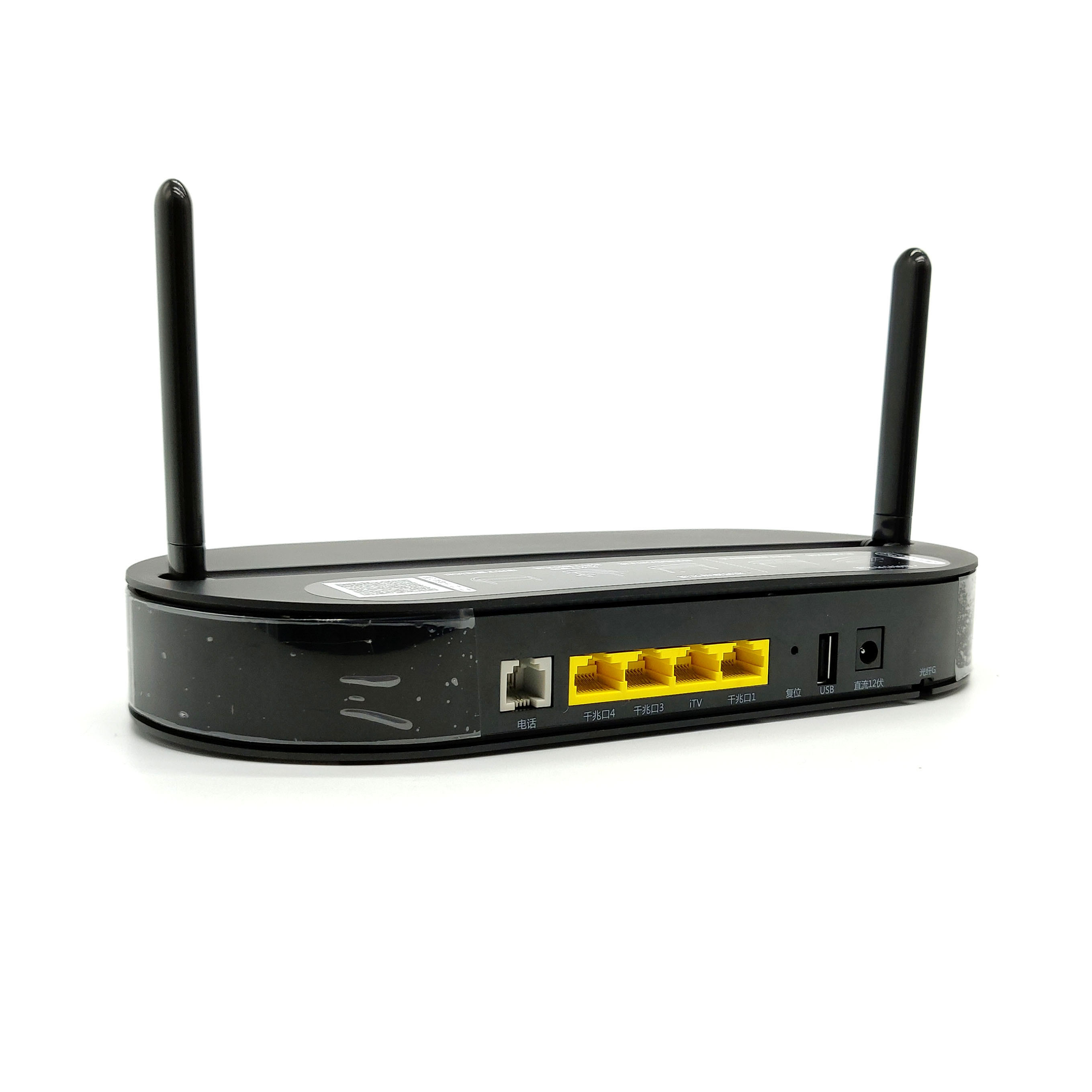

HS8145V HUAWEI GPON ONU Dual Band 2.4g 5g WiFi FTTH EPON ONT 1

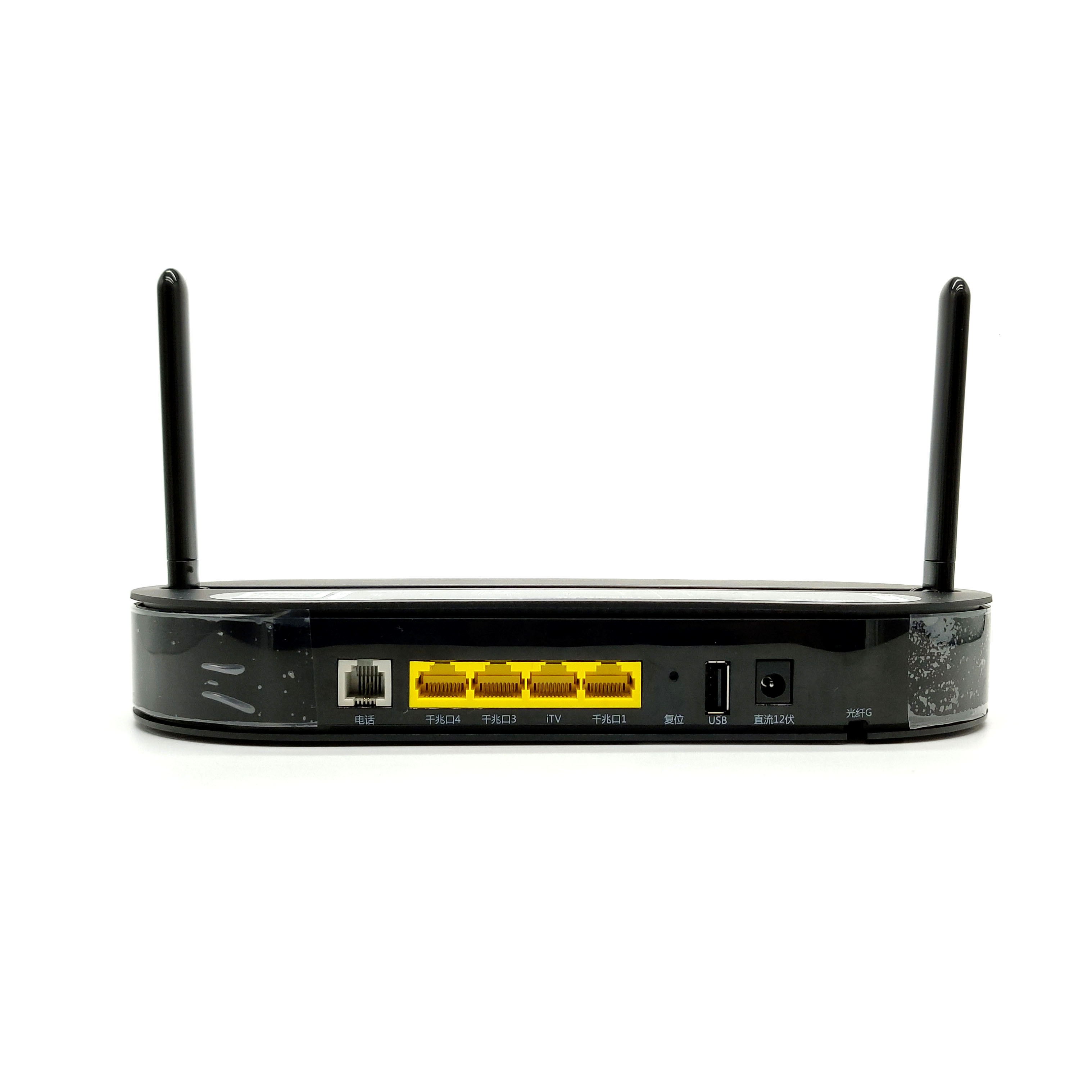

HS8145V HUAWEI GPON ONU Dual Band 2.4g 5g WiFi FTTH EPON ONT 2

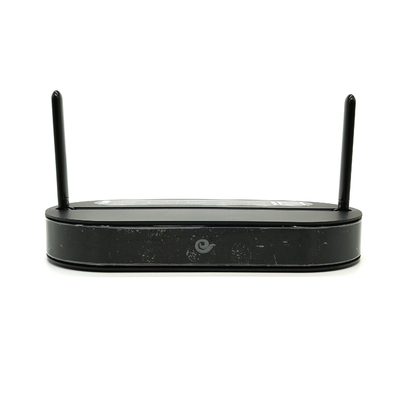

HS8145V HUAWEI GPON ONU Dual Band 2.4g 5g WiFi FTTH EPON ONT 7

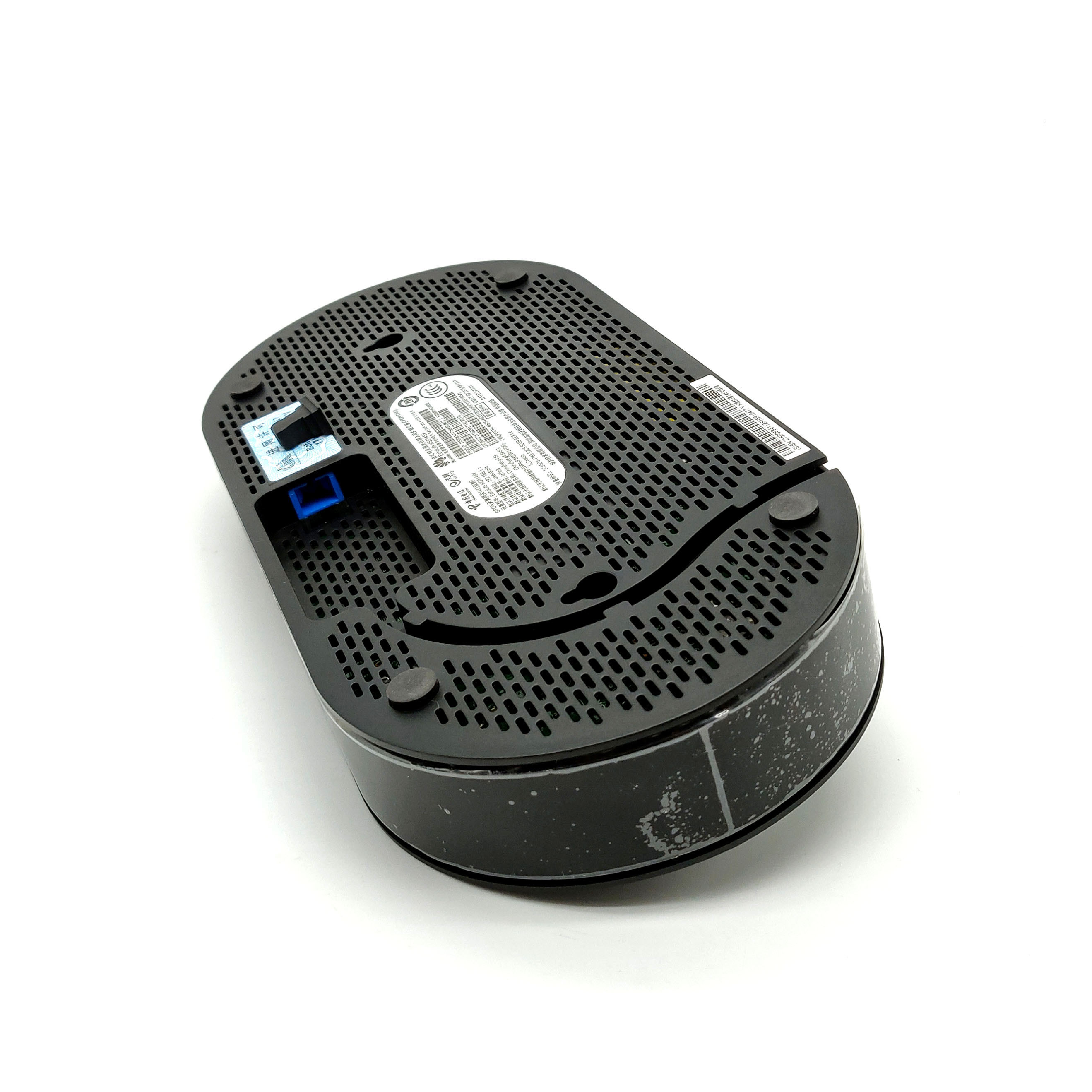

HS8145V HUAWEI GPON ONU Dual Band 2.4g 5g WiFi FTTH EPON ONT 8

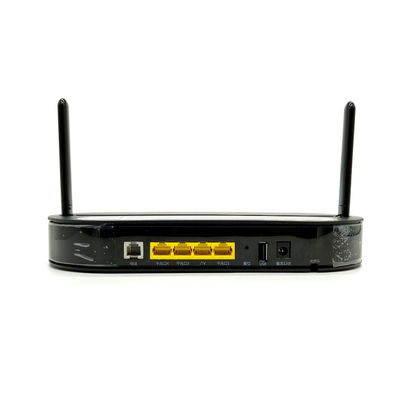

HS8145V HUAWEI GPON ONU Dual Band 2.4g 5g WiFi FTTH EPON ONT 11

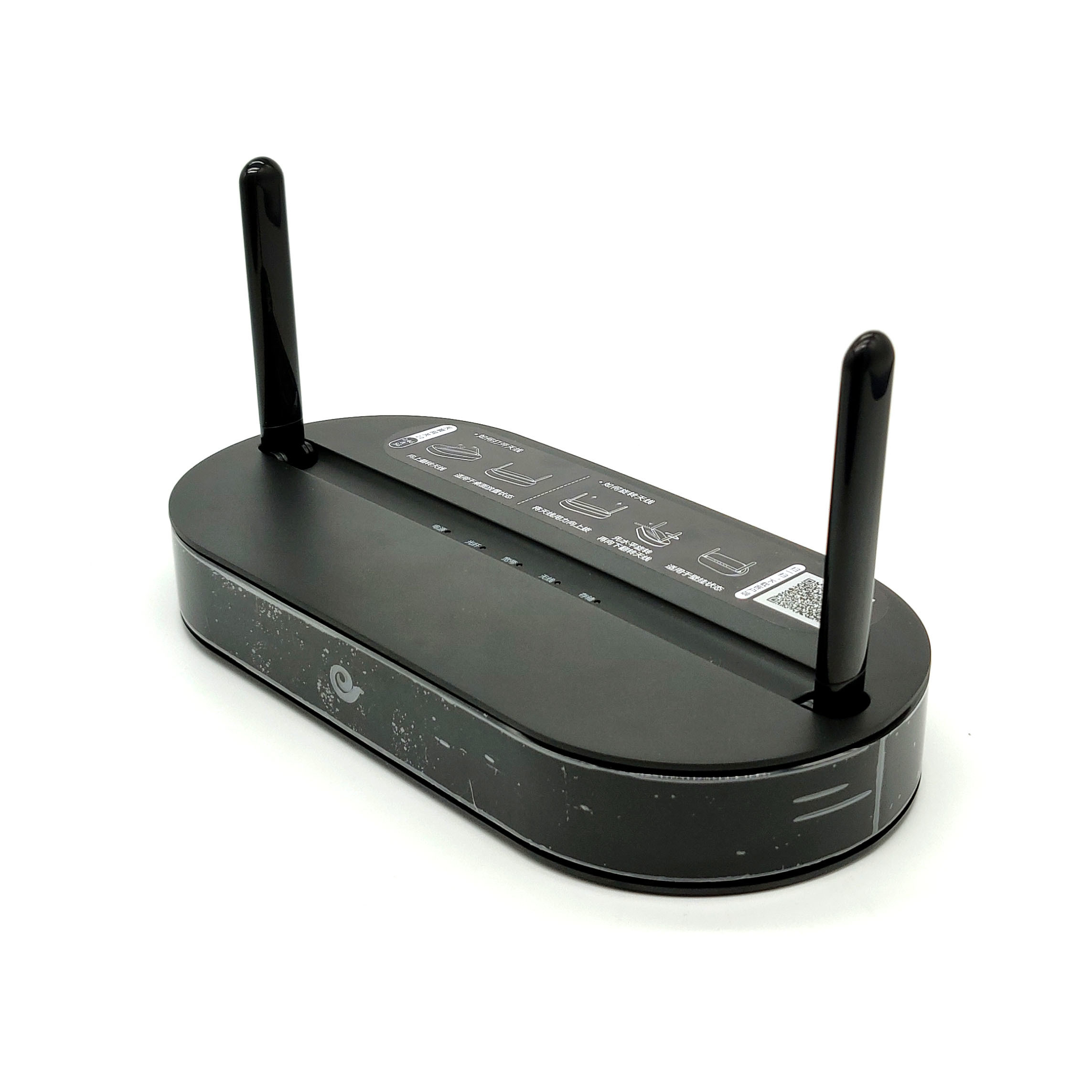

HS8145V HUAWEI GPON ONU Dual Band 2.4g 5g WiFi FTTH EPON ONT 12
