Place of Origin:	China	Brand Name:	ZTE
Certification:	CE ROHS Anatel	Model Number:	F609 V5.0

Detail Information
Ports:	1USB+WIFI+4FE+2TEL	Type:	GPON XPON
Weight:	120	Dimensions (H X W X D):	100X100X10CM
Chipset:	Hisilicon	Firmware:	English Firmware
Operating Temperature:	0°C To +40°C	Operating Humidity:	5% RH To 95% RH (non-condensing)
Power Adapter Input:	100 V To 240 V AC, 50 Hz/60 Hz	System Power Supply:	11 V To 14 V DC, 1.5 A
Optical Connector:	SC/APC SC/UPC	Indicators:	Power/PON/LOS/LAN/TEL/WLAN/WPS
Power Supply:	EU Power / US Power/ UK Power Optional
High Light:	4FE ZTE ONU ONT , 7 W ZTE ONU ONT , F609 V5 FTTH ONU ONT

Model	F609
User Ports	4FE + 3TEL+USB +WIFI 2.4G
Application	FTTH FTTB FTTX Network
GPON Interface	1x, SC/APC, 2,448 Gbit/s downstream 1,244 Gbit/s upstream
Operation Modes	Bridge, Router, AP
Wavelength for downstream	1480 nm – 1500 nm
Wavelength for upstream	1290 nm – 1330 nm
Sensitivity	-28 dBm
Power Consumption	7 W
Dimensions	220 mm x 34 mm x 187 mm
Working temperature and humidity	0°C – 40°C, 5% – 95%
Power	12 V DC
GPON features	8x T-CONT, 32 GEM port
Support	VLAN (802.1Q, 802.1P, 802.1ad), Multicast, QoS, DHCP Server/Client, NAT, IPv6 Dual Stack
Management	Local (WEB), OMCI, TR069

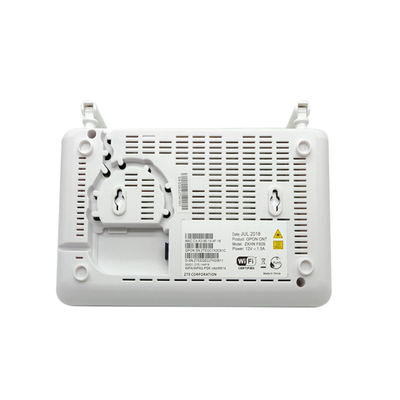

English Firmware ZTE ONU ONT 4FE 2TEL 1USB WIFI ROUTER F609 V5.0

4FE ZTE ONU ONT
