FTTH SC UPC GPON ONU ONT PON LOS LAN WLAN GPON Modem Router
Contact Person : Anna
Phone Number : +852 68416561
WhatsApp : +85268416561
|Minimum Order Quantity :||100pcs||Price :||$7.3-$8.2|
|Packaging Details :||Carton Box,162*141*36mm/0.2kgs||Delivery Time :||15days|
|Payment Terms :||T/T||Supply Ability :||100000/week|
|Place of Origin:||China||Brand Name:||HW|
|Specification:||1GE 1FE 1TEL||Usage:||FTTH|
The HG8321R FTTH is an optical network terminal (ONT), is a high-end home Bridge in FTTH solution. By using the GPON technology, ultra-broadband access is provided for home and SOHO users.
The HG8321R: 2LAN+1POT
The EG8120L features high-performance forwarding capabilities to ensure excellent experience with VoIP, Internet and HD video services. Therefore, the EG8120L provides a perfect terminal solution and future-oriented service supporting capabilities for FTTH deployment.
The EG8120L Provide English firmware and EU, US, UK, AU Power adapter for your choice.

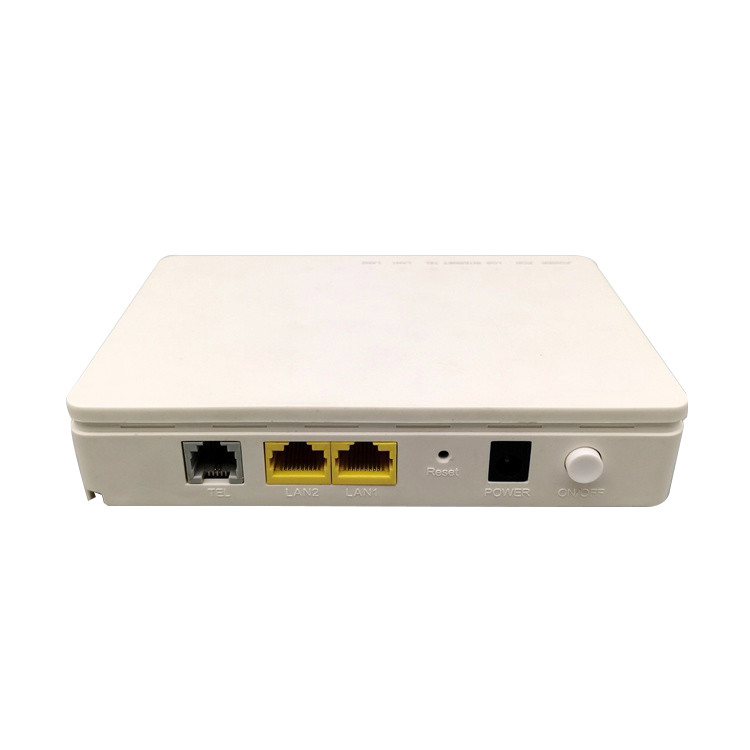

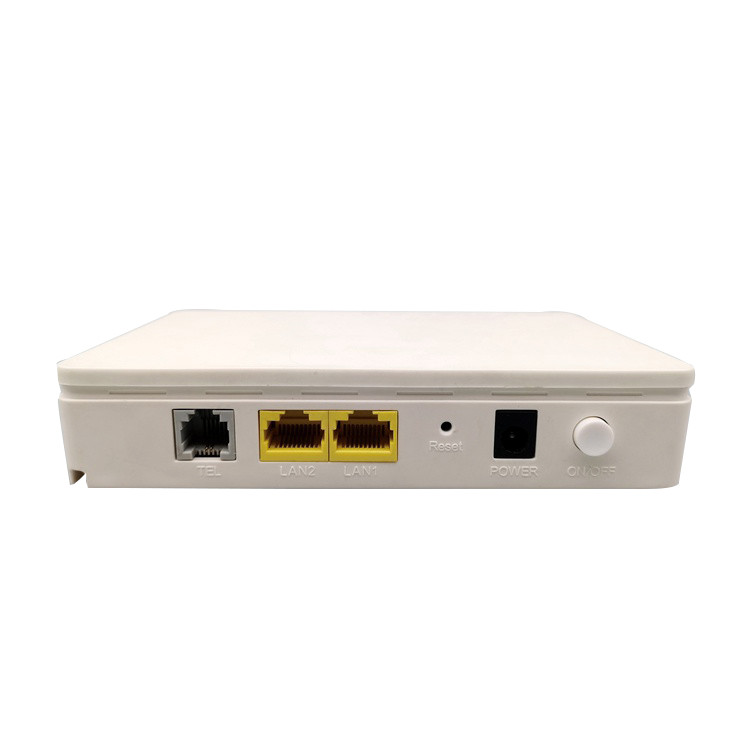

|Out Port contains||2FE+1TEL|
|LAN||1*10/100Mbps adaptive Gigabit ports, full/half duplex, RJ45 interface|
|TEL||H248/SIP Voice Protocol|
|Fiber port||1 GPON /EPON/XPON interface, ingle-fiber, Downstream rate 2.5Gbps, Upstream rate 1.25Gbps|
|Wavelength||Tx 1310nm, Rx 1490nm|
|Fiber interface||SC/UPC/APC Dual mode/Singal mode|
|RX sensitivity||>-28dBm (1490nm)|
|DC power||12V 0.5A, external AC-DC power adapter|
|Operation||Working temperature: -5- +55ºC working humidity:10-90%(non-condensation)|
|Storage||Storage temperature: -30ºC- +60ºC storage humidity: 10-90%(non-condensation)|
* Rich interfaces to meet multiple application scenarios
Huawei HG8321R FTTH provides multiple interfaces including FE, GE, VoIP, E1, WiFi, RF, USB, etc., to meet the needs of
scenarios such as FTTH, FTTB, FTTO and applications for home users and business users.
* Flexible and diverse business support
It supports the development of large-bandwidth data and Internet access, VoIP, IPTV, CATV video services, and L2VPN services, and provides good QoS and security guarantees.
* Fast deployment and easy operation
Convenient installation methods and disk fibre design make installation easier. Through the batch configuration operation of the network management system, zero-configuration on-site is achieved.
* Low power consumption, green and energy saving
The corresponding status monitoring can be performed according to whether the ONT is idle or not, and enter a low power consumption state, which fully reflects the design of green energy saving and emission reduction.
* Fast fault location
It can track protocol signals and monitor ONT performance to quickly locate equipment faults.
