EG8141A5 HUAWEI GPON ONU 1GE 3FE 1TEL WIFI SC UPC Interface

Contact Now

EG8141A5 HUAWEI GPON ONU 1GE 3FE 1TEL WIFI SC UPC Interface

Name: EG8141A5 HUAWEI GPON ONU 1GE 3FE 1TEL WIFI SC UPC Interface
Brand: huawei
SKU: eg8141a5
Price: 13.8 USD
Availability: InStock
Rating: 4.7 (192 reviews)

Minimum Order Quantity :	100pcs	Price :	US $13.8-15.5
Packaging Details :	carton box	Delivery Time :	10-15days
Payment Terms :	T/T, Western Union	Supply Ability :	10000pcs/week

Place of Origin:	china	Brand Name:	huawei
Certification:	CE Rosh	Model Number:	eg8141a5

Detail Information
Product Name:	HUAWEI GPON ONT	Type:	ONU ONT
Certification:	CE ROSH	Warranty:	1years
Power Supply:	12V 1A	Optical Interface:	SC UPC
Tpye:	EG8141A5	Pom Model:	1GE+3FE
High Light:	EG8141A5 HUAWEI GPON ONU , 1GE 3FE HUAWEI GPON ONU , 3FE 1TEL GPON ONU ONT

Product Description

EG8141A5 GPON/EPON 1GE 3FE 1TEL WIFI 5DBI ONU ONT

Description/Introduction of GPON ONU ONT

Ftth epon ont wifi eg8141a5 sc/apc upc gpon onu english firmware

The EchoLife EG8141A5 is a routing-type ONT in the all-optical access solution. It uses the GPON technology to implement ultra broadband access for users, and provides 1GE port, 3 FE ports,1 POTS port and 1 2.4G WiFi port. The high forwarding performance ensures the user experience of data and HD video services, and provides customers with an ideal all-optical access solution and future-oriented service support capability.

Huawei Gpon Epon onu ont 8141a5 Same function as HG8456M EG8141A5

The EchoLife EG8141A5 provides one GE port, one POTS port, three FE ports and supports 2.4G Wi-Fi. The ONT features high-performance forwarding capabilities to ensure excellent experiences with VoIP, Internet, and HD video services. These features make the EG8141A5 a perfect choice for broadband access.

Parameters	EchoLife EG8141A5
Dimensions (H x W x D)	152 x 105 x 30 mm
Weight	192g
Operating Temperature	0°C to +40°C
Operating Humidity	5% RH to 95% RH (non-condensing)
Power Adapter Input	100 V to 240 V AC, 50 Hz/60 Hz
System Power Supply	11 V to 14 V DC, 1.5 A
Static Power Consumption	3.1W
Maximum Power Consumption	7.5W
Ports	1 POTS + 1 GE + 3 FE + 2.4G Wi-Fi
Optical Connector	SC/APC
Indicators	Power/PON/LOS/LAN/TEL/WLAN/WPS

Optic Fiber Echolife GPON EPON ONT Router

EG8141A5 1GE 3FE 1POT WIFI Router ONU

1.Full compatible with ITU-T G.984.

2.Support port-based rate limitation and bandwidth control

3.Integrated OMCI remote configuration and maintenance function.

4.Support data enscryption, group broadcasting, port Vlan separation ,RSTP,etc.

5.Support Dynamic Bandwidth Allocation (DBA)

6.Support ONT auto-discovery/Link detection/remote upgrade of software;

7.Support VLAN division and user separation to avoid broadcast storm;

8.Support power-off alarm function ,easy for link problem detection

9.Support broadcasting storm resistance function

10.Support port isolation between different ports

11.Support ACL and SNMP to configure data packet filter flexibly

12.Specialized design for system breakdown prevention to maintain stable system

13.Support software online upgrading

14.EMS network management based on SNMP ,convenient for maintenance

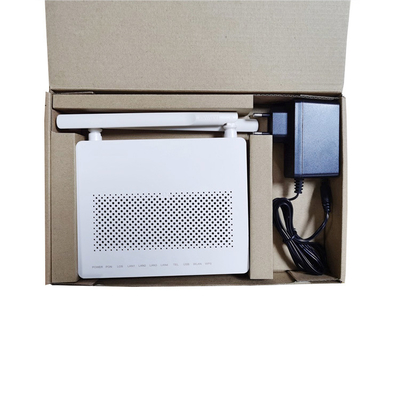

EG8141A5 HUAWEI GPON ONU 1GE 3FE 1TEL WIFI SC UPC Interface 0

EG8141A5 HUAWEI GPON ONU 1GE 3FE 1TEL WIFI SC UPC Interface 1

EG8141A5 HUAWEI GPON ONU 1GE 3FE 1TEL WIFI SC UPC Interface 2

Our Services

1. Quick Reply: Your inquiry related to our products or price will be replied within 24 hours.

2. OEM&ODM: We can help you to design and put your good idea into products.

3. Warranty: 365days

FAQ

We are new in this PON fields, can you help me and recommend me some items?

Yes, of course. It is our pleasure to help you with it.

You only need to offer us more details about your application.

OEM/ODM Service is available?

Yes, V-Solution have strong ability to offer customers ODM&OEM ONU ONT of highest quality.

And it will require the MOQ.
