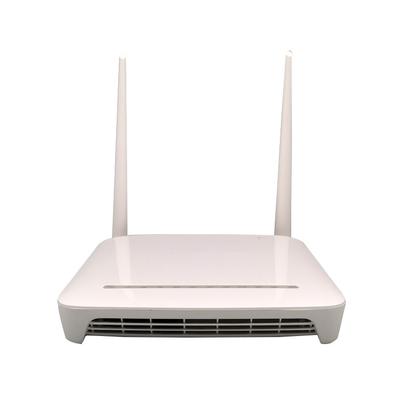

HK720 Gpon/Epon 4ge 1tel 2.4G/5g AC WiFi Hongking OEM Router ONU Olt Ont FTTH

Minimum Order Quantity :	100pcs	Price :	USD12-14/pcs
Packaging Details :	Packed with Polyfoam, Outer Packed with Brown Box,25018535mm/0.44kgs	Delivery Time :	15days
Payment Terms :	T/T	Supply Ability :	100000/week

Place of Origin:	China	Brand Name:	HKING
Certification:	CE,ISO,RoHS	Model Number:	HK720

Detail Information
Color:	White	PON:	XPON
Condition:	New	Warranty Time:	1year
Usage:	FTTH	Firmware:	English
Specification:	4FE 1TEL

Product Description

Original HK720 OEM EPON XGPON Gpon onu 4GE 1TEL AC WIFI with English version

Product Description

Model	Configuration					Dimension/pcs
Model	LAN	Telephone	Wifi	PPPOE	Firmware	Dimension/pcs
HK720	4GE	1pots	yes	yes	English	25018535mm/0.44kgs
Remarks	External Antenna

Features:

1 .Full compatible with ITU-T G.984.
2.Support port-based rate limitation and bandwidth control
3.Integrated OMCI remote configuration and maintenance function.
4.Support data enscryption, group broadcasting, port Vlan separation ,RSTP,etc.
5.Support Dynamic Bandwidth Allocation (DBA)
6.Support ONT auto-discovery/Link detection/remote upgrade of software;
7.Support VLAN division and user separation to avoid broadcast storm;
8.Support power-off alarm function ,easy for link problem detection
9.Support broadcasting storm resistance function
10.Support port isolation between different ports
11.Support ACL and SNMP to configure data packet filter flexibly
12.Specialized design for system breakdown prevention to maintain stable system
13.Support software online upgrading
14.EMS network management based on SNMP ,convenient for maintenance

Hardware Specifications

PON Interface	Interface Type	SC/PC, CLASS B+
	Rate	Uplink: 1.25Gbps; Downlink: 2.5Gbps
User-Side Interface	110/100/1000BASE-T;110/100BASE-T;1*RF interface
Size (Mm)	167(L)×118(W)×30(H)
Maximum Power Consumption	<8W
Weight	120g
Operating Environment	Temperature: -10°C ~ 55°C
	Humidity: 5% ~ 95% (no condensation)
Power Supply	External Power Adapter 12V/1A
Power Adapter Input	100-240V AC, 50/60Hz
Power Interface Size	metal inner diameter: φ2.1±0.1mmouter diameter : φ5.5±0.1mm; length: 9.0±0.1mm
WLAN Module	External dual antenna, antenna gain 5db, antenna power 16~21dbm
	Support 2.4GHz, 300M transmission rate
