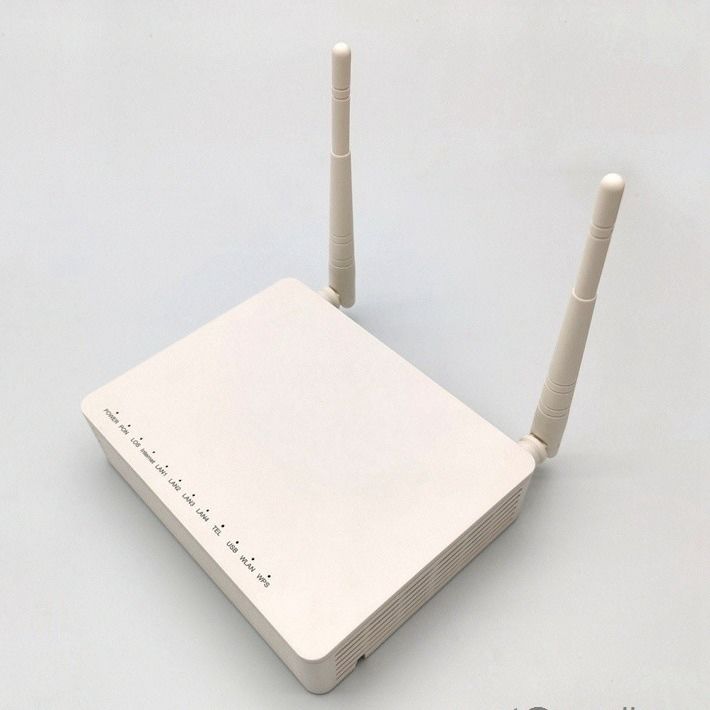

OEM HK719 XPON GPON EPON 1GE 3FE 1TEL 2.4g 3dbi
OEM HK719 XPON GPON EPON 1GE 3FE 1TEL 2.4g 3dbi
OEM HK719 XPON GPON EPON 1GE 3FE 1TEL 2.4g 3dbi OEM HK719 XPON GPON EPON 1GE 3FE 1TEL 2.4g 3dbi OEM HK719 XPON GPON EPON 1GE 3FE 1TEL 2.4g 3dbi OEM HK719 XPON GPON EPON 1GE 3FE 1TEL 2.4g 3dbi OEM HK719 XPON GPON EPON 1GE 3FE 1TEL 2.4g 3dbi OEM HK719 XPON GPON EPON 1GE 3FE 1TEL 2.4g 3dbi
Contact Now

OEM HK719 XPON GPON EPON 1GE 3FE 1TEL 2.4g 3dbi

Minimum Order Quantity : 50pcs Price : Negociatable
Packaging Details : Carton Box Delivery Time : 7-15days
Payment Terms : T/T,Western Union Supply Ability : 10000pcs/Week
Place of Origin: China Brand Name: OEM
Certification: CE ROHS Anatel Model Number: HK719

Detail Information
PON Type: XPON GPON EPON Port: 1GE 3FE 1TEL 2.4ghz WiFi
Optical Connector: SC UPC SCAPC Optional Power Supply: 12V 1.0A
Application: FTTH FTTB FTTX Network Compatible With: FiberHome OLT / HUAWEI OLT / ZTE OLT / OEM OLT
Firmware: English Firmware Antenna: 3dbi
High Light:

HK719 XPON GPON EPON

,

1TEL 2.4g XPON GPON EPON

,

OEM HK719 XPON GPON EPON

Product Description

OEM HK719 GPON ONU ONT FTTH 1GE 3FE 1TEL 2.4g 3dbi compatible with HUAWEI ZTE Fiberhome OL

S



1. Overview

  • HK719 GPON ONU ONT is designed as HGU (Home Gateway Unit) in different FTTH solutions. Carrier-grade FTTH applications provide different services.
  • HK719 GPON ONU ONT is based on the mature, stable and cost-effective XPON technology.
  • HK719 GPON ONU ONT adopts high reliability, easy management, flexible configuration and good quality of service guarantee, meeting the technical performance of China Telecom CTC3.0 EPON standard and ITU-TG.984.X GPON standard



2. Functional Feature

  • HK719 GPON ONU ONT Support GPON mode and switch mode automatically
  • HK719 GPON ONU ONT Support Route mode for PPPoE/DHCP/Static IP and Bridge mode
  • HK719 GPON ONU ONT Support IPv4 and IPv6 dual mode
  • HK719 GPON ONU ONT Support 2.4G WIFI and Multiple SSID
  • HK719 GPON ONU ONT Support LAN IP and DHCP Server configuration
  • HK719 GPON ONU ONT Support Port Mapping and Loop-Detect
  • HK719 GPON ONU ONT Support Firewall function and ACL function
  • HK719 GPON ONU ONT Support IGMP Snooping/Proxy multicast feature
  • HK719 GPON ONU ONT Support TR069 remote configuration and maintenance
  • HK719 GPON ONU ONT Specialized design for system breakdown prevention to maintain stable system



3. Hardware Specification

Technical item Details
PON Interface 1 GPON BOB (Bosa on Board)
Receiving sensitivity: ≤-28dBm
Transmitting optical power: +1~+4dBm
Transmission distance: 20KM
Wavelength TX: 1310nm, RX: 1490nm
Optical Interface SC/UPC Connector
Design Scheme RTL9603C+RTL8192FR BOB(RTL8290B)
Chip Spec CPU 950MHz,DDR2 128MB
Flash SPI Nor Flash 16MB
LAN Interface 1 x 10/100/1000Mbps(GE) and 3 x 10/100Mbps(FE) auto adaptive Ethernet interfaces. Full/Half, RJ45 connector
Wireless Compliant with IEEE802.11b/g/n,
Operating frequency: 2.400-2.4835GHz
support MIMO, rate up to 300Mbps,
2T2R,2 external antenna 5dBi,
Support: Multiple SSID
Channel: Auto
Modulation type: DSSS, CCK and OFDM
Encoding scheme: BPSK, QPSK, 16QAM and 64QAM
LED 9 LED, For Status of WIFI,WPS,PWR,LOS,PON,LAN1~LAN4
Push-Button 3,For Function of Reset, WLAN, WPS
Operating Condition Temperature: 0℃~+50℃
Humidity: 10%～90%(non-condensing)
Storing Condition Temperature: -30℃~+60℃
Humidity: 10%~90%(non-condensing)
Power Supply DC 12V/1A
Power Consumption ≤6W
Dimension 155mm×92mm×34mm(L×W×H)
Net Weight 0.24Kg




4. Panel lights Introduction

Pilot Lamp Status Description
WIFI On The WIFI interface is up.
Blink The WIFI interface is sending or/and receiving data (ACT).
Off The WIFI interface is down.
WPS Blink The WIFI interface is securely establishing a connection.
Off The WIFI interface does not establish a secure connection.
PWR On The device is powered up.
Off The device is powered down.
LOS Blink The device doses not receive optical signals or with low signals.
Off The device has received optical signal.
PON On The device has registered to the PON system.
Blink The device is registering the PON system.
Off The device registration is incorrect.
LAN1~LAN4 On Port (LANx) is connected properly (LINK).
Blink Port (LANx) is sending or/and receiving data (ACT).
Off Port (LANx) connection exception or not connected.




5. Application

  • Typical Solution:FTTH(Fiber To The Home)
  • Typical Business:INTERNET,IPTV,WIFI etc
