Product Description

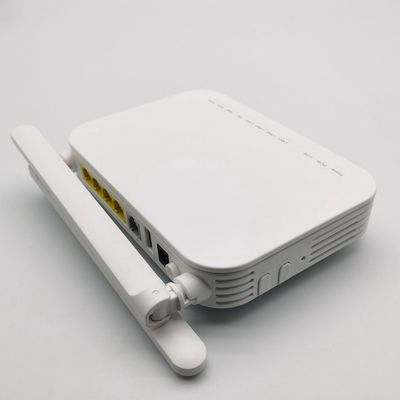

Best OEM Hisilicon HK739 GPON ONU ONT FTTH 1GE 3FE 1TEL 2.4g 5dbi compatible with HUAWEI ZTE Fiberhome OLT
nHK739XH is designed as HGU (Home Gateway Unit) in different FTTH solutions. The carrier-class FTTH application provides different services access.
nHK739XH is based on mature and stable, cost-effective XPON technology.
nHK739XH adopts high reliability, easy management, configuration flexibility and good quality of service guarantees to meet the technical performance of EPON Standard of China Telecom CTC3.0 and GPON Standard of ITU-TG.984.X
Hisilicon CPU SD5116 + Hisilicon WiFi chip Hi5620 can Guarantee ONT with Great Lan and WiFi perfomance
Support EPON/GPON mode and switch mode easily
Support Route mode for PPPoE/IPoE/Static IP and Bridge mode
Support IPv4 and IPv6 Dual mode
Support 2.4G WIFI and 2*2 MIMO
Support SIP Proctol for Voip Service
Support LAN IP and DHCP Server configuration
Support Port Mapping and Loop-Detect
Support Firewall function and ACL function
Support IGMP Snooping/Proxy multicast feature
Support TR069 remote configuration and maintenance
Specialized design for system breakdown prevention to maintain stable system
| Technical item |
Details |
| PON Interface |
1 GPON BOB (Class B+) |
| Receiving sensitivity: ≤-27dBm |
| Transmitting optical power: +0.5~+5dBm |
| Transmission distance: 20KM |
| Wavelength |
TX: 1310nm, RX: 1490nm |
| Optical Interface |
SC/UPC Connector |
| Design Scheme |
Hisilicon CPU SD5116 + Hisilion WiFi chip Hi5620 |
| LAN Interface |
1 x 10/100/1000Mbps(GE) and 3 x 10/100Mbps(FE) auto adaptive Ethernet interfaces. Full/Half, RJ45 connector |
| Wireless |
Compliant with IEEE802.11b/g/n |
| |
Operating frequency: 2.400-2.4835GHz |
| POTS interface |
support MIMO, rate up to 300Mbps |
| 2T2R,2 external antenna 5dBi |
| Support: Multiple SSID |
| Channel: Auto |
| Modulation type: DSSS, CCK and OFDM |
| Encoding scheme: BPSK, QPSK, 16QAM and 64QAM |
| 1 FXS, RJ11 connector |
| Support: G.711/G.723/G.726/G.729 codec |
| Push-ButtonLED |
Support: T.30/T.38/G.711 Fax mode, DTMF Relay |
| Line testing according to GR-909 |
| 10 LED, For Status of WIFI,WPS,PWR,LOS,PON,LAN1~LAN4,FXS |
| 3,For Function of Reset, WLAN, WPS |
| Operating Condition |
Temperature: 0℃~+50℃ |
| |
Humidity: 10%～90%(non-condensing) |
| Storing Condition |
Temperature: -30℃~+60℃ |
| Humidity: 10%~90%(non-condensing) |
| Power ConsumptionPower Supply |
DC 12V/1A |
| ≤6W |
| Dimension |
162mm×112mm×32mm(L×W×H) |
| Net Weight |
0.3Kg |
- Panel lights Introduction
| Pilot Lamp |
Status |
Description |
| WIFI |
On |
The WIFI interface is up. |
| Blink |
The WIFI interface is sending or/and receiving data (ACT). |
| Off |
The WIFI interface is down. |
| WPS |
Blink |
The WIFI interface is securely establishing a connection. |
| Off |
The WIFI interface does not establish a secure connection. |
| PWR |
On |
The device is powered up. |
| Off |
The device is powered down. |
| LOS |
Blink |
The device doses not receive optical signals or with low signals. |
| Off |
The device has received optical signal. |
| PON |
On |
The device has registered to the PON system. |
| Blink |
The device is registering the PON system. |
| Off |
The device registration is incorrect. |
| LAN1~LAN4 |
On |
Port (LANx) is connected properly (LINK). |
| Blink |
Port (LANx) is sending or/and receiving data (ACT). |
| Off |
Port (LANx) connection exception or not connected. |
| FXS |
On |
Phone has registered to the SIP Server. |
| Blink |
Phone has registered and data transmission (ACT). |
| Off |
Phone registration is incorrect. |
FAQ
1. Can we get a lower price? Any Discount?
Yes, price is not a problem, everything could be negotiated based on the quantity.
2. We are new in this PON fields, can you help me and recommend me some items?
Yes, of course. It is our pleasure to help you with it.
You only need to offer us more details about your application.
3. OEM/ODM Service is available?
Yes, We have strong ability to offer customers ODM&OEM products of highest quality.
4. What are the advantages of your products?
A. Good quality and competitive prices.
B. Strict quality control during production process.
C. Professional operations in processes of production, sales, assembling, packaging and shipping.
D. Good after-sale service. Professional online technical support can be provided. Moreover, if there is any problem of the goods, we will help to solve the problem or provide replacement of the goods.
