HS8145V5 for Huawei Ont dual frequency WIFI FTTH GPON ONU 4GE 1TEL AC WIFI
Contact Person : Anna
Phone Number : +852 68416561
WhatsApp : +85268416561
Minimum Order Quantity : | 50pcs | Price : | Negociatable |
---|---|---|---|
Packaging Details : | Carton Box | Delivery Time : | 7-15days |
Payment Terms : | T/T,Western Union | Supply Ability : | 10000pcs/Week |
Place of Origin: | China | Brand Name: | huawei |
---|---|---|---|
Certification: | CE ROHS Anatel | Model Number: | EG8010H |
Detail Information |
|||
PON Type: | GPON EPON XPON | Port: | 1GE |
---|---|---|---|
Application: | FTTH Optical Network Terminal | PON Connector: | SC/APC SC/UPC |
Firmware: | English Firmware | Power: | 12V 0.5A |
Power Supply: | EU Power / US Power/ UK Power Optional | ||
Highlight: | English Firmware HUAWEI Echolife EG8010H,echolife eg8010h ont,1GE APC UPC FTTH Bridge Modem |
Product Description

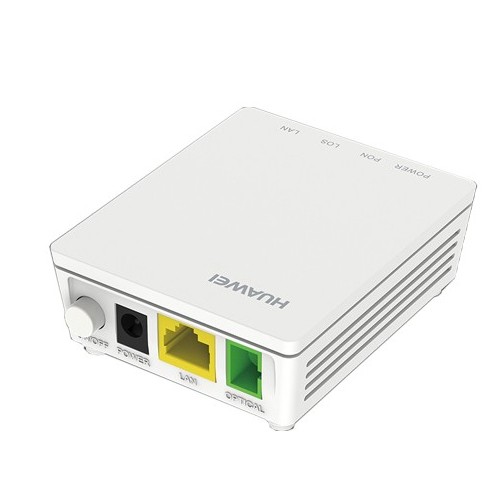

An integral part of Huawei’s Fiber To The Home (FTTH) solution, EchoLife EG8010H is an indoor Optical Network Terminal (ONT) that uses Gigabit Passive Optical Network (GPON) technology to provide ultra-broadband access for home and Small Office/Home Office (SOHO) users. The EG8010H has one Gigabit Ethernet (GE) port and features high-performance service forwarding capabilities, ensuring excellent Internet and High Definition (HD) video service experience.
Parameters | EchoLife EG8010H |
Dimensions (H x W x D) | 83 x 69 x 28 mm |
Operating Temperature | 0°C to 40°C |
Operating Humidity | 5% RH to 95% RH (non-condensing) |
Power Adapter Input | 100 V to 240 V AC, 50 Hz/60 Hz |
System Power Supply | 11 V to 14 V DC, 0.5 A |
Network-Side Ports | 1 x GPON |
User-Side Ports | 1 x GE |
Indicators | Power/PON/LOS/LAN |
Plug-and-Play
Configurations are automatically delivered by the Network Management System (NMS), eliminating the need for on-site commissioning.
Comprehensive Triple Play Service
Abundant ports available to implement multiple access services, including home network attached storage, Internet access, and video.
Energy Efficient
System on Chip (SoC) integrate PON, gateway, and LAN Switch (LSW) modules, realizing up to 25% power savings.
Huawei EG8010H provides Belowing features:
GPON Port
• Class B+
• Receiver sensitivity: -27dBm
• Wavelengths: US 1310 nm, DS 1490 nm
• Wavelength blocking filter (WBF)
• Flexible mapping between GEM Port and TCONT
• GPON: consistent with the SN or password authentication defined in G.984.3
• Bi-directional FEC
• SR-DBA and NSR-DBA
Ethernet Port
• Ethernet port-based VLAN tags and tag removal
• 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission
• QinQ VLAN
• Limit on the number of learned MAC addresses
• MAC address learning
• Transparent transmission of IPv6 packets at Layer 2
Smart O&M
• Variable-length OMCI messages
• Active/Passive rogue ONT detection and isolation
• PPPoE/DHCP simulation testing
QoS
• Ethernet port rate limitation
• 802.1p priority
• SP/WRR/SP+WRR
• Broadcast packet rate limitation
• Flow mapping based on the VLAN ID, port ID, or/and 802.1p
Power Saving
• Indicator power saving
• Power consumption reduction of idle components in power-saving state
• COCv4
Security
• MAC address filtering
Common O&M
• OMCI/Web UI
• Dual-system software backup and rollback
• 802.1ag Ethernet OAM
• Optical link measurement and diagnosis
• Loopback check
Multicast
• IGMP v2/v3 snooping
• MLD v1/v2 snooping
• Fast leave
• VLAN tag translation, transparent transmission, and removal for downstream multicast packets
• IGMP/MLD protocol packet rate limitation
