2.4G HG8245C HUAWEI GPON ONU

Name: 2.4G HG8245C HUAWEI GPON ONU
Brand: HUAWEI
SKU: HG8245C
Price: 1.00 USD
Availability: InStock
Rating: 4.7 (113 reviews)

Minimum Order Quantity :	50pcs	Price :	Negociatable
Packaging Details :	Carton Box	Delivery Time :	7-15days
Payment Terms :	T/T,Western Union	Supply Ability :	10000pcs/Week

Place of Origin:	China	Brand Name:	HUAWEI
Certification:	CE ROHS Anatel	Model Number:	HG8245C

Detail Information
Chipset:	Hisilicon	Lan:	1
Use:	FTTH	WiFi:	2.4GHz
Optical Interface:	SC/UPC Interface Class B+	WiFi Standard:	2 X 2 MIMO 802.11b/g/n
Maximum Number Of MAC Addresses Learned:	1024	Power Supply:	EU Power / US Power/ UK Power Optional
High Light:	1USB 2.4G HUAWEI GPON ONU , 2.4G HG8245C HUAWEI GPON ONU , 4FE 2POTS WiFi FTTH Router Modem

Product Description

HUAWEI GPON ONU HG8245C 4FE 2POTS 1USB 2.4G WiFi FTTH Router Modem

Huawei HG8245C FTTH optical network terminal (ONT) is a indoor optical network terminal in Huawei FTTx solution. By using GPON technology, ultra-broadband access is provided for home and SOHO users. It is used with Huawei optical line terminal

The convergence and high-density features of Huawei OLT can help operators effectively simplify network architecture, reduce network nodes, reduce station sites, computer rooms and other supporting facilities, reduce equipment investment and operation and maintenance costs, and improve network deployment efficiency; at the same time, PON/10G PON/GE/10GE common platform can realize smooth network evolution and protect investment; OLT’s full service access realizes unified access of individuals, enterprises, and base stations, reducing network construction costs, enriching user service experience, and enhancing service stickiness. Increase ARPU value.

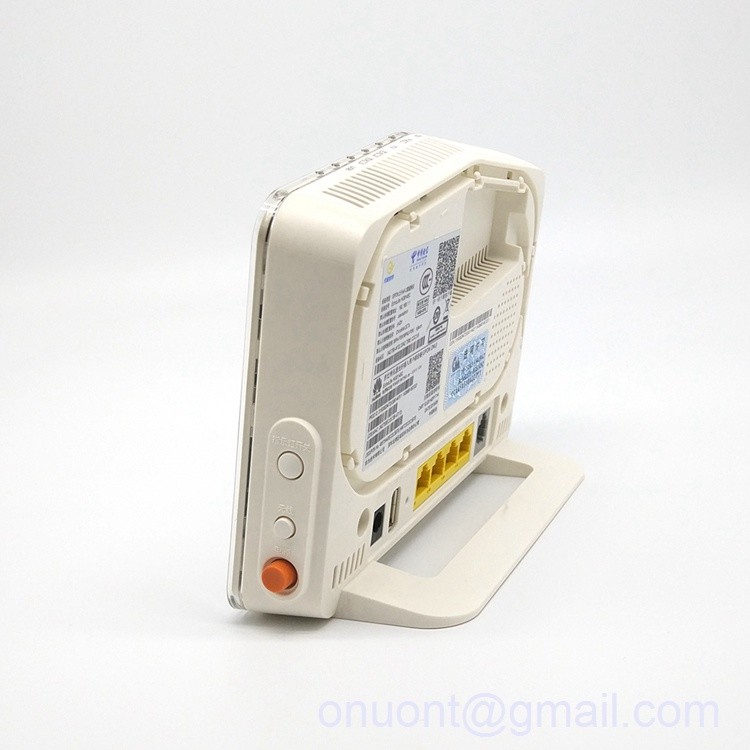

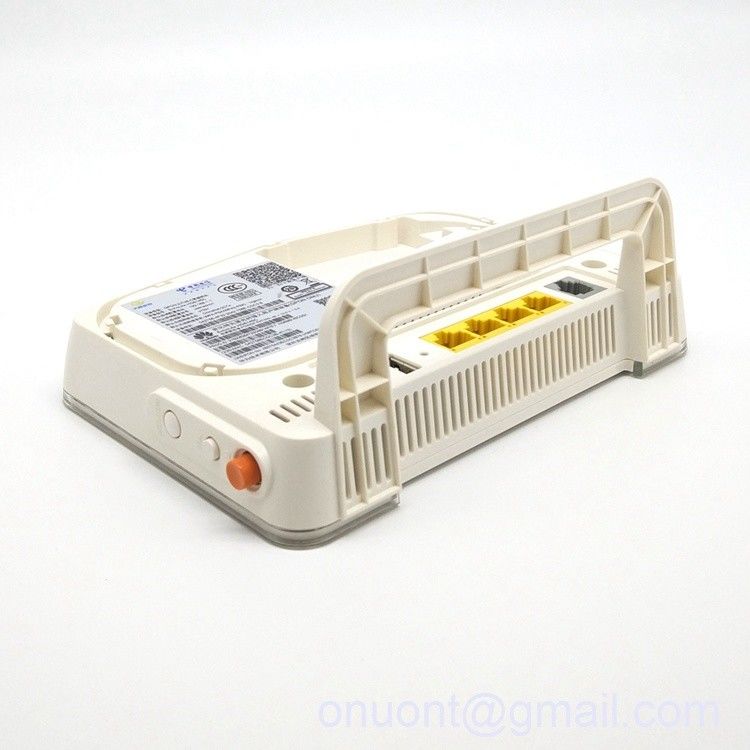

HUAWEI GPON ONU HG8245C 4FE 2POTS 1USB 2.4G WiFi FTTH Router Modem Picture

Huawei HG8245C FTTH Product Specification

Brand	Huawei
Model	HG8245C
Port	4xFE+2xPOTS+1xUSB+WIFI
Optical interface	GPON / EPON SC/UPC
	Class B+
Working environment	Operating temperature: 0ºC to 40ºC
Working environment	Environment humidity: 5% to 95% (noncondensing)
Power specifications	Power adapter input: 90 to 270 V AC, 50–60 Hz
Power specifications	System power supply: 11–14 V DC, 2 A
Antenna gain	5dBi
Weight	About 0.5 kg

Huawei HG8245C FTTH Product Feature

GPON ONT, 4*FE+2*POTS+1*USB, with WiFi
Support IPv4 and IPv6 dual stack
Support H.248 and SIP
Connector type SC/UPC
With internal antenna
Can be configured by OLT or Web or NMS
HG8245C coming with English GUI
Suitable for home and SOHO users
Support 802.11n, 300Mbps WLAN
Routing function supported
Packing dimension : 260*210*8mm
Gross Weight : about 0.8kg

NNI	GPON
Optical interface	SC/UPC interface Class B+
UNI	4FE+WiFi+USB
WiFi standard	2 x 2 MIMO 802.11b/g/n
Antenna gain	2dBi
Dimensions(W x D x H)	156mm×125mm×30mm (Without external antenna)
Power supply	Power supply: 11-14V DC, 1A; Input power: 150V~264V AC,50/60Hz
Operating temperature and operating humidity	0°C-+40°C; 5%-95%, non-condensing
Cooling	Passive cooling
Maximum number of MAC addresses learned	1024
L2 forwarding capability	2 Gbit/s downstream (with any length packets); 1 Gbit/s upstream (with any length packets)
IPv4 L3 forwarding capability	2 Gbit/s downstream (with any length packets); 1 Gbit/s upstream (with any length packets)
IPv6 L3 forwarding capability	500 Mbit/s (V300R013C00 to V300R015C00); 2 Gbit/s (V300R015C10 and later)
