Home ProductsHUAWEI GPON ONU7.5W 3.1W Huawei Echolife EG8141A5 GPON Terminal 2.4G Optical Network Terminal

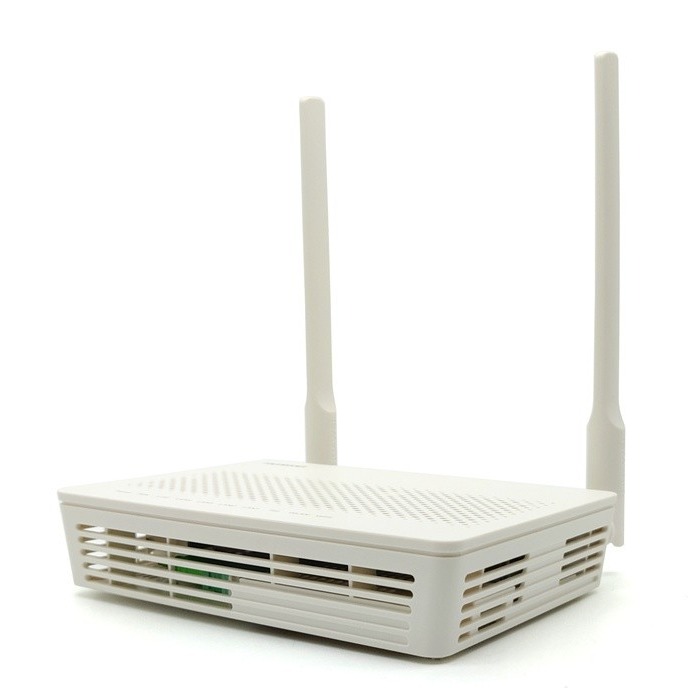

7.5W 3.1W Huawei Echolife EG8141A5 GPON Terminal 2.4G Optical Network Terminal
7.5W 3.1W Huawei Echolife EG8141A5 GPON Terminal 2.4G Optical Network Terminal 7.5W 3.1W Huawei Echolife EG8141A5 GPON Terminal 2.4G Optical Network Terminal 7.5W 3.1W Huawei Echolife EG8141A5 GPON Terminal 2.4G Optical Network Terminal 7.5W 3.1W Huawei Echolife EG8141A5 GPON Terminal 2.4G Optical Network Terminal
Contact Now

7.5W 3.1W Huawei Echolife EG8141A5 GPON Terminal 2.4G Optical Network Terminal

Minimum Order Quantity : 50pcs Price : Negociatable
Packaging Details : Carton Box Delivery Time : 7-15days
Payment Terms : T/T,Western Union Supply Ability : 10000pcs/Week
Place of Origin: China Brand Name: HUAWEI
Certification: CE ROHS Anatel Model Number: EG8141A5

Detail Information
Chipset: Hisilicon Firmware: English Firmware
Dimensions (H X W X D): 152 X 105 X 30 Mm Weight: 192g
Operating Temperature: 0°C To +40°C Operating Humidity: 5% RH To 95% RH (non-condensing)
Power Adapter Input: 100 V To 240 V AC, 50 Hz/60 Hz System Power Supply: 11 V To 14 V DC, 1.5 A
Optical Connector: SC/APC SC/UPC Indicators: Power/PON/LOS/LAN/TEL/WLAN/WPS
Ports: 1 POTS + 1 GE + 3 FE + 2.4G Wi-Fi Type: GPON EPON XPON
Power Supply: EU Power / US Power/ UK Power Optional
High Light:

7.5W optical network terminal

,

3.1W optical network terminal

,

3.1W optical network terminal ont

Product Description

HUAWEI GPON ONU EG8141A5 2.4G WiFi 1GE 3FE TEL USB FTTH optical netowork terminal



The EchoLife EG8141A5 provides 1GE port, 1POTS port, 3FE ports and supports 2.4G Wi-Fi. The ONT features
high-performance forwarding capabilities to ensure excellent experiences with VoIP, Internet, and HD video services. These features make the EG8141A5 a perfect choice for broadband access.

EG8141A5 Specification
Parameters
EchoLife EG8141A5
Dimensions (H x W x D)
152 x 105 x 30 mm
Weight
192g
Operating Temperature
0°C to +40°C
Operating Humidity
5% RH to 95% RH (non-condensing)
Power Adapter Input
100 V to 240 V AC, 50 Hz/60 Hz
System Power Supply
11 V to 14 V DC, 1.5 A
Static Power Consumption
3.1W
Maximum Power Consumption
7.5W
Ports
1 POTS + 1 GE + 3 FE + 2.4G Wi-Fi
Optical Connector
SC/APC
Indicators
Power/PON/LOS/LAN/TEL/WLAN/WPS

7.5W 3.1W Huawei Echolife EG8141A5 GPON Terminal 2.4G Optical Network Terminal 0
