1GE Ethernet Port Optical Network Terminal F601 FTTH ZTE Modem Router
Contact Person : Anna
Phone Number : +852 68416561
WhatsApp : +85268416561
Minimum Order Quantity : | 50pcs | Price : | Negociatable |
---|---|---|---|
Packaging Details : | Carton Box | Delivery Time : | 7-15days |
Payment Terms : | T/T,Western Union | Supply Ability : | 10000pcs/Week |
Place of Origin: | China | Brand Name: | ZTE |
---|---|---|---|
Certification: | CE ROHS Anatel | Model Number: | F601 |
Detail Information |
|||
Pon Type: | GPON | Chips: | ZTE |
---|---|---|---|
Port: | 1GE | Optical Connector: | SC UPC |
Power Supply: | DC 12V 0.5A | Warranty: | 1 Years |
Application: | FTTH/FTTB/FTTx Network | Compatible With: | ZTE OLT / HUAWEI OLT / Nokia OLT / OEM OLT |
Dimensions: | 110mm(W) X 90mm(H) X 53mm(D) | ||
High Light: | 8 TCONTs ZTE ZXA10 F601,32 GEM Ports ZTE ZXA10 F601,ZXA10 F601 GPON ONU ONT |
Product Description

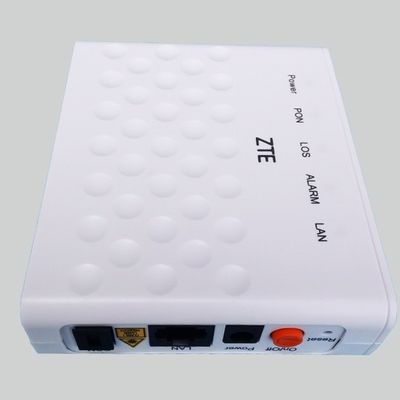

ZTE ZXA10 F601 GPON ONU ONT FTTH Optical Network Terminal 1GE Ethernet Port
ZXHN F601 is a GPON Optical Network Terminal designed for FTTH scenario.
It provides high-performance forwarding capabilities to ensure excellent experience with Internet and HD video services.
It has a small, smart appearance and green, energy-saving advantage.
ZTE F601 GPON Interface
ZXHN F601 Datasheet
Optical port: 1 x GPON interface (SC/PC or SC/APC)
Transmit rate: 2.488Gbps downstream; 1.244Gbps upstream
ZTE F601 User Network Interface
Transmission Distance: 0 ~ 20km
1 x10/100/1000Base-T
Half/full duplex; Auto MDI/MDIX; Auto negotiation
ZTE F601 Optical Module
Wavelength: Receiving: 1480~1500 nm Transmitting: 1290~1330 nm
Receiving Sensitivity: -28dBm
Transmitting Optical Power: 0.5~5dBm
ZTE F601 Physical Performance
Power consumption: <6W
Dimensions: 110mm(W) x 90mm(H) x 53mm(D)
Working temperature: 0oC ~ 40oC
Working humidity: 5% ~ 95%
Weight: about 190g
Power supply: 12V DC
Mounting mode: Desktop/Wall mounting
ZTE F601 Main Function
Supported service: Internet, IPTV
GPON: 8 T-CONTs, 32 GEM Ports
VLAN: 802.1Q, 802.1P, 802.1ad
MAC address table: 256
Multicast: IGMP v1/v2 Snooping
Multicast group per user port: 256
QoS: service flow classification based on physical port, Ethernet type; ingress rate limit; egress shaping
Management: local web management, OMCI
