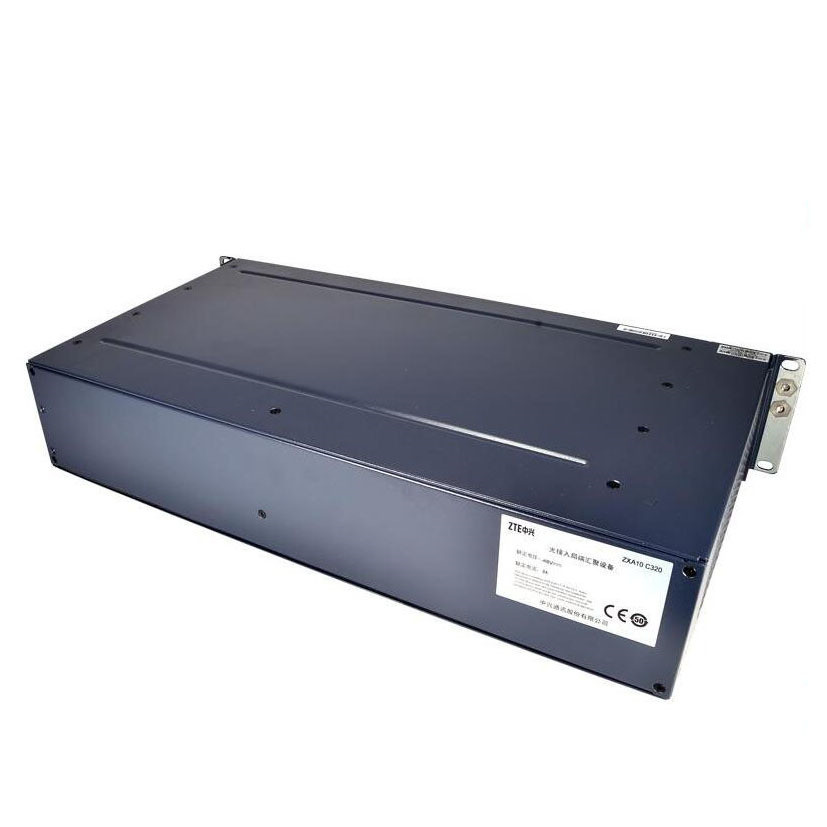

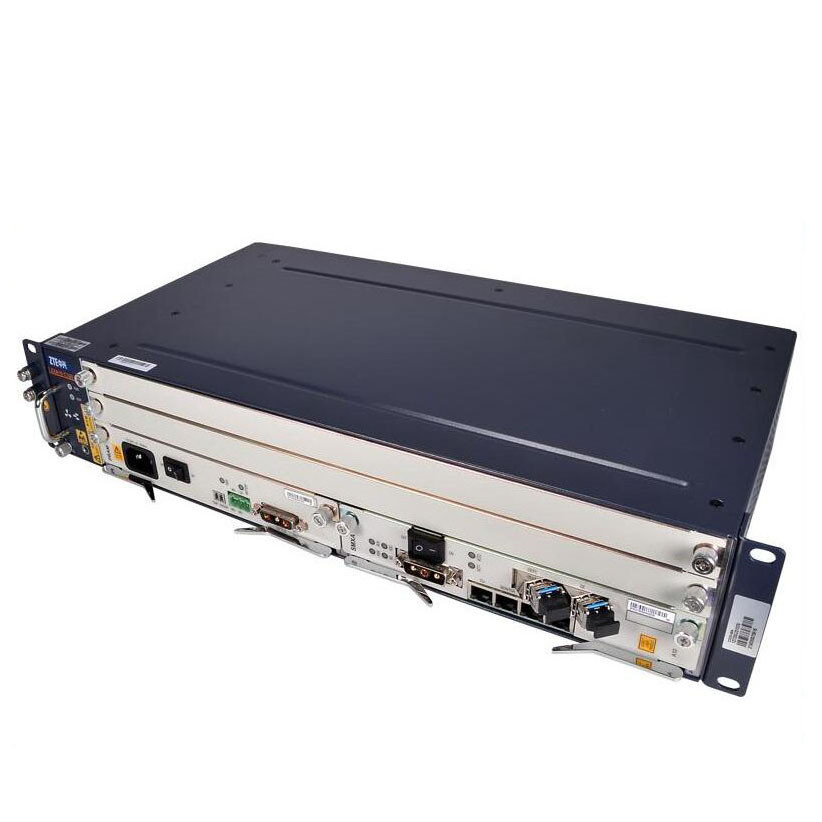

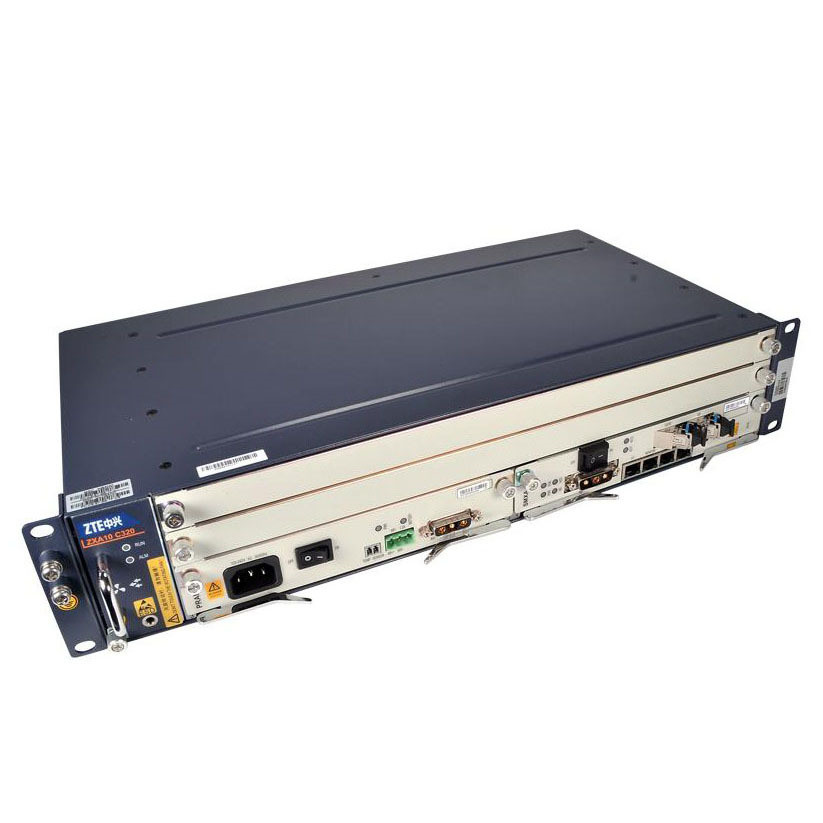

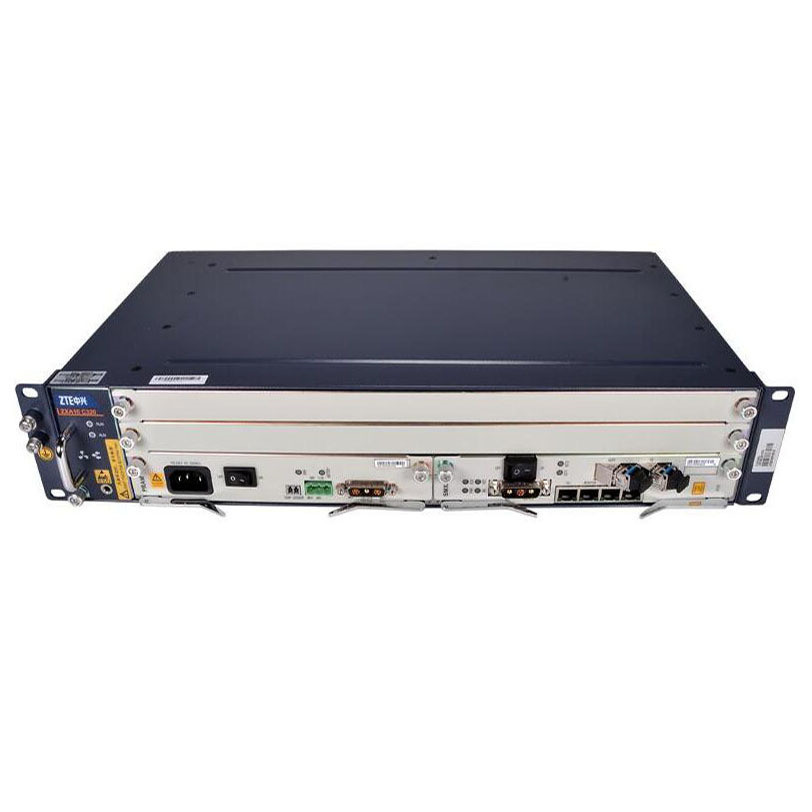

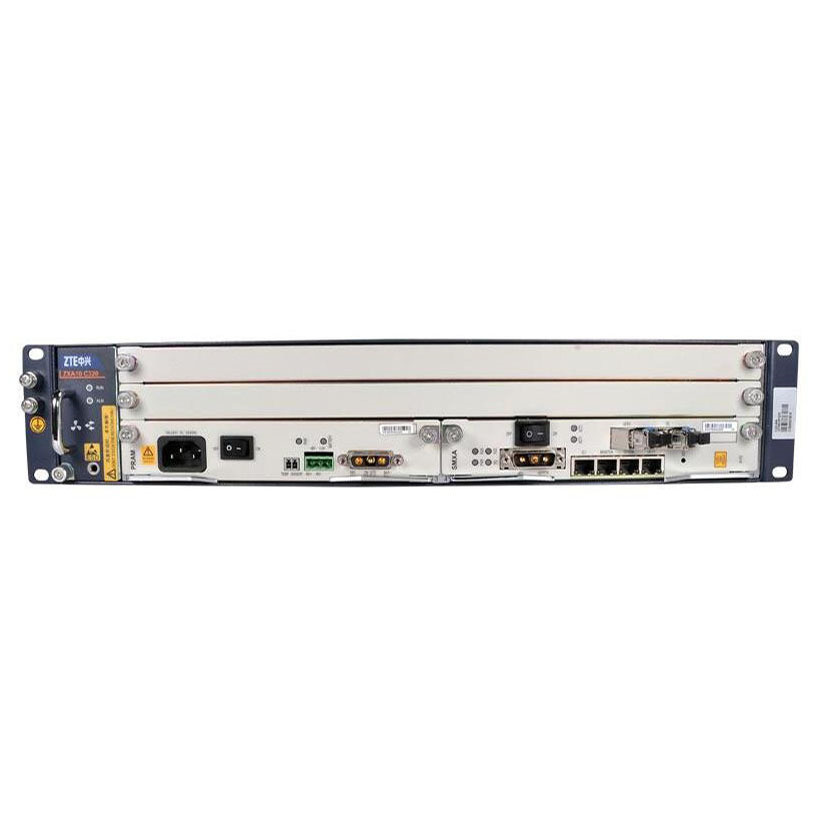

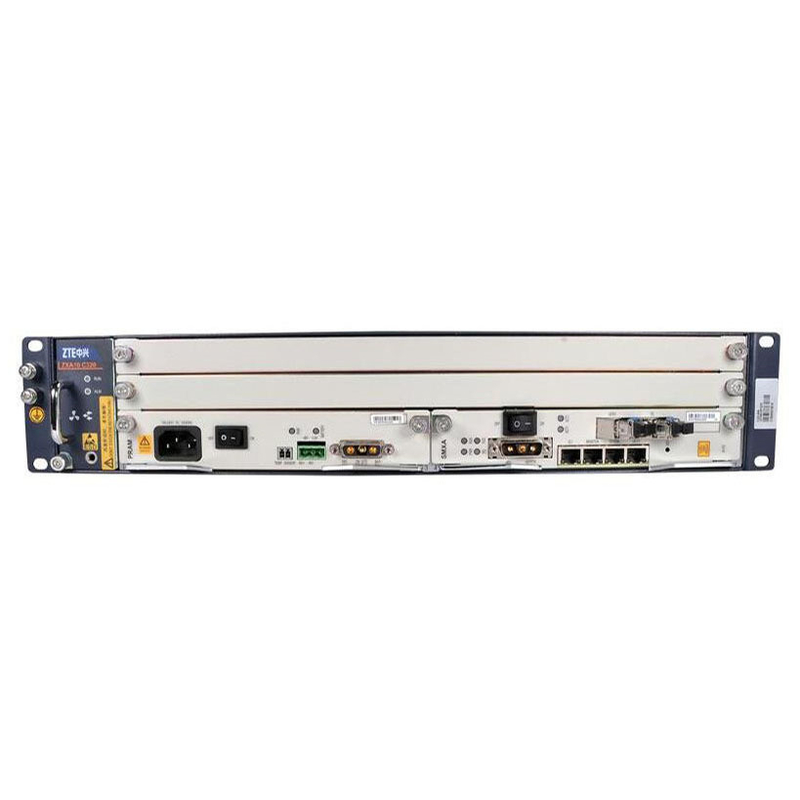

C320 OLT AC 8 ports 16 Ports Gpon Mini OLT 10G 1G 2slots GTGH AC/DC C320 c300 gpon olt With OLT Test Video

Name: C320 OLT AC 8 ports 16 Ports Gpon Mini OLT 10G 1G 2slots GTGH AC/DC C320 c300 gpon olt With OLT Test Video
Brand: ZTE OLT
SKU: C320
Price: 1.00 USD
Availability: InStock
Rating: 4.6 (168 reviews)

Minimum Order Quantity :	1pcs	Price :	Negociatable
Packaging Details :	carton box	Delivery Time :	15 WORK DAYS
Payment Terms :	L/C, T/T	Supply Ability :	15000pcs/Week

Place of Origin:	shenzhen	Brand Name:	ZTE OLT
Certification:	CE ROHS Anatel	Model Number:	C320

Detail Information
Platform Capabilities:	420 Gb/s	Switching Speed:	84 Gb/s
Division Coefficient:	Up To 1:128	Support:	FEC AES128 SCB OLS

Product Description

C320 OLT AC 8 ports 16 Ports Gpon Mini OLT 10G 1G 2slots GTGH AC/DC C320 c300 gpon olt With OLT Test Video 0

The C320 platform is suitable for long-distance applications where OLT should be close to users and where it cannot be used centrally.
The S+C VLAN, QoS, multicast, E-OAM, synchronization and security functions make C320 a stable and reliable network.

SPECIFICATION

Platform capabilities	420 Gb/s
Switching speed	84 Gb/s
Number of places for service cards	2 (GPON / P2P / XG-PON1)
Number of places for combined control cards	2
Number of power card slots	1
Number of Uplink card slots	1 (10GE / GE / FE / E1 / T1)
Maximum number of GPON subscribers	4 096
Management interfaces	CLI, SSH, SNMP, telnet
Dimensions	2U (86.1 x 482.6 x 270 mm)
Power supply	48 V (DC), 230 V (AC)
Working conditions	Temperature: -25°C to 55°C Humidity: 5%-95%
ITU GPON features G.984.x
Division coefficient	Up to 1:128
Reach	20-60 km
Maximum damping	SFP B+ 28 dB SFP C+ 32 dB
Dynamic capacity allocation	NSR-DBA SR-DBA
Support	FEC AES128 SCB OLS
Features L2/L3
Multicast	IGMP Snooping / Proxy / SPR and MLD Snooping / Proxy 256 multicast VLAN, CAC, PRV, CDR
QoS	8 queues per port SP DWRR DSPC marking CIR PIR EIR
Safeguards	L2-L4 ACL IP and MAC Source Guard DOS protection Protection against false MAC/IP Anfi-flooding DHCP 82
Other parameters	VLAN, SVLAN, QinQ, VLAN stacks, STP/RSTP/MSTP, DHCP server, DHCP relay, DHCP proxy, IPv4/IPv6 dual stack
