Fiber To Home 16 Port OLT Optical Line Terminal 1U High For FTTH

Minimum Order Quantity : 5piece Packaging Details : 50X55X30 cm
Delivery Time : 15-20days Payment Terms : L/C, T/T, Western Union
Supply Ability : 10000piece/year
Place of Origin: SHENZHEN Brand Name: HUAWEI
Certification: CE SE Model Number: MA5800

Detail Information

Warranty Time:: 2year Color: White
PON Card:: GTGO GTXO Type: FTTx Solutions
Control Board: SMXA/3 SMXA Application: FTTH System
SFP Module:: B+ C+ C++ For Option Power Card:: PRAM
8-port Board:: GTGO Power: -48V/-60V DC 110/220V AC
High Light:

GTGO GTXO OLT Optical Line Terminal


1U High OLT Optical Line Terminal


Fiber To Home 16 ports OLT

Product Description

Fiber to Home 1U Gpon OLT 16 port for FTTH network Fiber Optica Equipment Equipamento de fibra optica

Product Description


GPON OLT 16PON(UTGP8016) is a small-capacity cassette GPON OLT, meeting the requirements of ITU-T G.984/G.988 and relative standards of China Telecom/Unicom GPON, with super GPON access capacity, carrier-class reliability and the complete security function. It can satisfy long-distance optical fiber access requirement on account of its excellent management, maintenance and monitoring capability, abundant service features and flexible network mode.GPON OLT 16PON can be used with network management system so as to provide users with the comprehensive access and perfect solution.

UTGP8010 provides 16 * downlink GPON port, 4 *GE combo port and 2* 10G SFP+ port for uplink. The height is only 1U for easy installation and space saving. GPON OLT 16PON is suitable for Broadcast three in one, video surveillance network, enterprise LAN, Internet of Things, etc.



Switching Capacity 140Gbps
Forwarding Capacity(Ipv4/Ipv6) 104MPPS
Service Port 16*PON port, 4*GE COMBO port, 2*10GE SFP+ port
Redundancy Design

Dual power supply

Support AC input, double DC input and AC+DC input

Power Supply

AC: input 90~264V 47/63Hz;

DC: input -36V~-72V;

Power Consumption ≤110W
Dimensions (Width x Height x Depth) 440mm×44mm×380mm
Weight (Full-Loaded) ≤3kg
Environmental Requirements

Working temperature: -10°C~55°C

Storage temperature: -40°C~70°C

Relative humidity: 10%~90%, non-condensing

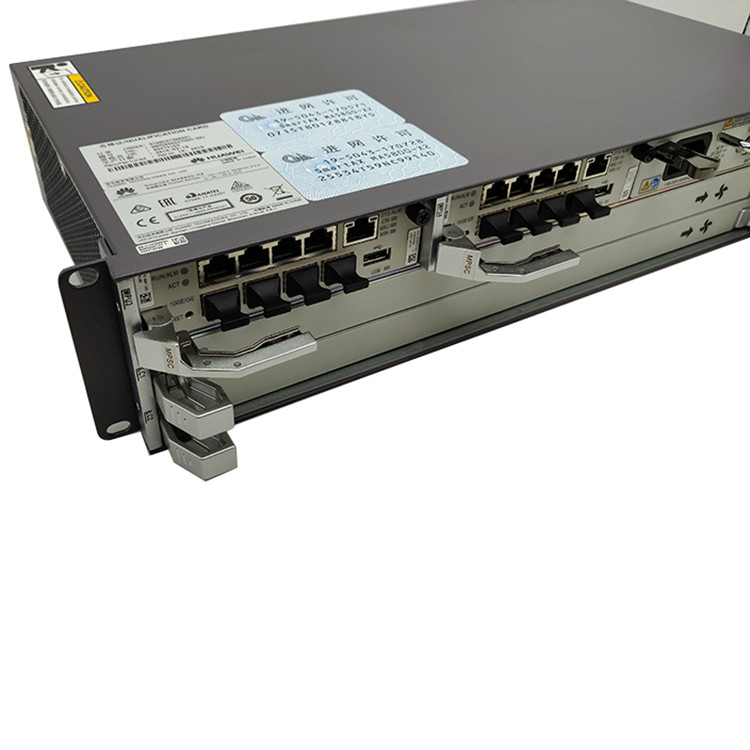

Fiber To Home 16 Port OLT Optical Line Terminal 1U High For FTTH 0

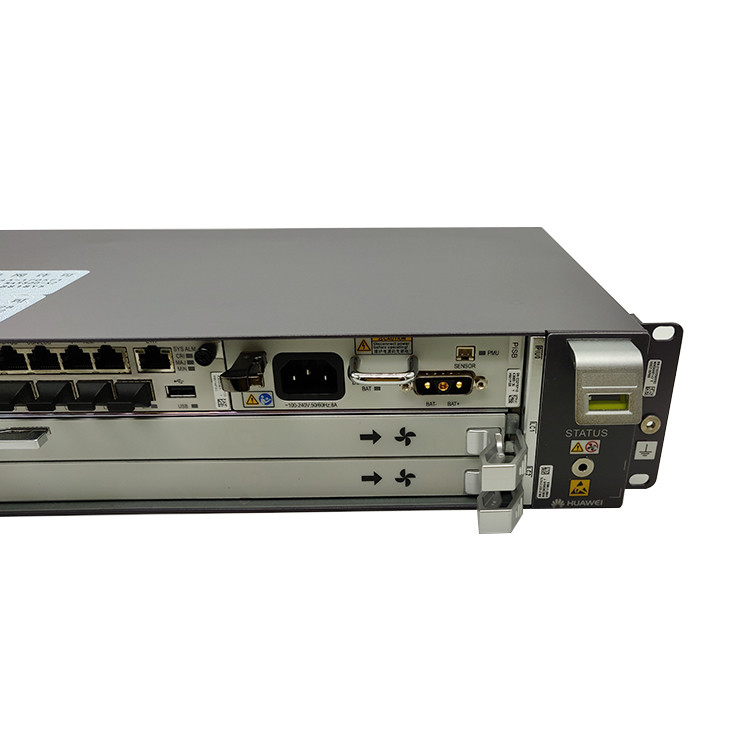

Fiber To Home 16 Port OLT Optical Line Terminal 1U High For FTTH 1

Fiber To Home 16 Port OLT Optical Line Terminal 1U High For FTTH 2
