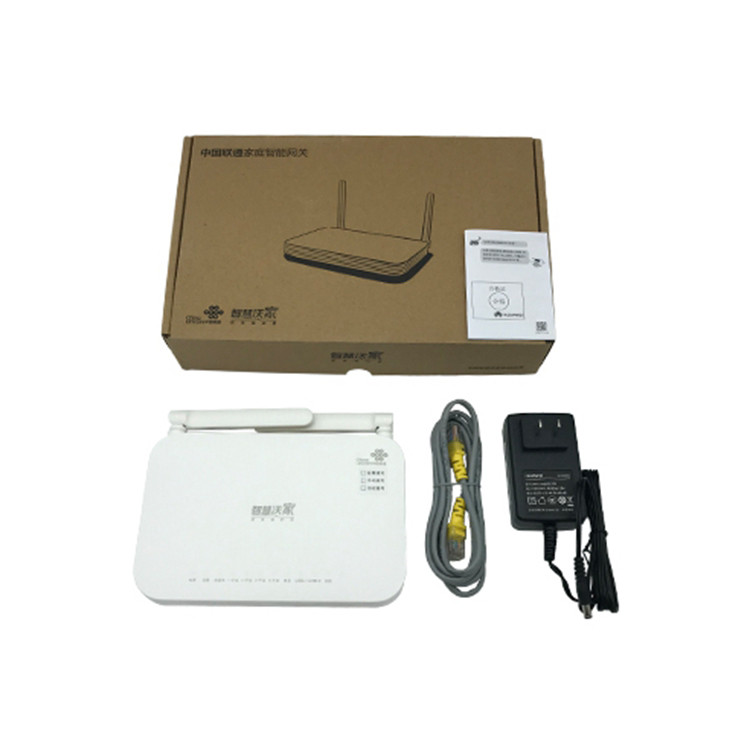

Echolife 10G ONU HN8346V5 4GE+1POTS+2USB+2.4G&5G wifi 10G-EPON huawei ONT Dual Band English Firmware Fiber Optic Equipme

Name: Echolife 10G ONU HN8346V5 4GE+1POTS+2USB+2.4G&5G wifi 10G-EPON huawei ONT Dual Band English Firmware Fiber Optic Equipme
Brand: huawei
SKU: HN8346V5
Price: 1.00 USD
Availability: InStock
Rating: 4.9 (128 reviews)

Minimum Order Quantity :	50pcs	Price :	Negociatable
Packaging Details :	Carton Box	Delivery Time :	7-15days
Payment Terms :	T/T,Western Union	Supply Ability :	10000pcs/Week

Place of Origin:	China	Brand Name:	huawei
Certification:	CE ROHS Anatel	Model Number:	HN8346V5

Detail Information
PON Type:	GPON EPON XPON	Port:	10GE
Application:	FTTH Optical Network Terminal	PON Connector:	SC/APC SC/UPC
Firmware:	English Firmware	Power:	12V 0.5A
Power Supply:	EU Power / US Power/ UK Power Optional

Product Description

HN8346V5 10G-EPON ONU 10G optical port 4LAN+1POTS+Dual Band wifi

English version

Product Description

Product Description
Technical items	Descriptions
Model	HN8346V5
Out Port contains	4GE+1POTS+2USB+2.4G&5G wifi
WIFI signal	2.4G&5G wifi
Wireless gain	5db
USB	USB2.0
LAN	1*10/100/1000Mbps adaptive Ethernet ports, full/half duplex, RJ45 interface
TEL	H248/Sip Voice protocol
PPPOE	support
Firmware	English
Dimension/weight	183mm143mm34mm/295g
Fiber port	1 10G-EPON interface, ingle-fiber, Downstream rate 2.5Gbps, Upstream rate 1.25Gbps
Wavelength	Tx 1310nm, Rx 1490nm
Fiber interface	SC/FC-UPC/APC Dual mode/Singal mode
RX sensitivity	>-28dBm (1490nm)
DC power	12V 2.0A, external AC-DC power adapter
Button	Reset, power,WLAN,WPS
Operation	Working temperature: -5- +55℃ working humidity:10-90%(non-condensation)
Storage	Storage temperature: -30℃- +60℃ storage humidity: 10-90%(non-condensation)

Feature
1.Plug-and-play: services can be deployed by one click on the NMS, and on-site configuration is not required.
2.Remote diagnosis: Remote fault locating is implemented by the loop-line test of POTS ports, call emulation and PPPoE dialup emulati
3.Link monitoring: E2E link detection is achieved using 802.1ag Ethernet OAM.
4.High speed forwarding: 900 Mbit/s forwarding in the NAT scenario.
5.IPv6 Capability: support IPv6/IPv4 dual stack and DS-Lite.
