Product Description
FTTH 1GE bridge XPON GPON ONU ONT HK110
GPON / EPON
1GE Bridge ONT
1. Overview
HK110XH is the an indoor Optical Network Terminal (ONT) that support GPON/EPON Dual mode Gigabit Ethernet , HK110XH is fully compliant with technical regulations such as ITU-T G.984.x and IEEE802.3ah.It can provide ultra-broadband access for home and Small Office/Home Office (SOHO) users.
HK110XH has one Gigabit Ethernet (GE) port and features high-performance service forwarding capabilities, ensuring excellent Internet and High Definition (HD) video service experience
2. Product Feature
Comply fully with ITU-G.984.1/2/3/4 standard and G.987.3 protocol
Support downlink 2.488Gbits/s rate and uplink 1.244Gbits/s rate
Support bidirectional FEC and RS(255,239) FEC CODEC
Support 32 TCONT and 256 GEMPORT
Support AES128 decryption function of G.984 standard
Support SBA and DBA dynamically broadband allocation
Support the PLOAM function of G.984 standard
Support Dying-Gasp check and report
Support synchronous Ethernet
Compatible with the OLT from different manufacturers,such as Huawei, Cortina etc
Support the rogue ONU alarm function
Support 1K MAC address table
3. Hardware Specification
| Technical item |
Details |
| PON Interface |
1 GPON BOB (Class B+) |
| Receiving sensitivity: ≤-27dBm |
| Transmitting optical power: +0.5~+5dBm |
| Transmission distance: 20KM |
| Wavelength |
TX: 1310nm, RX: 1490nm |
| Optical Interface |
SC/UPC SC/APC Connector |
| Dimensions (H x W x D) |
85 x 70 x 28 mm |
| Operating Temperature |
0°C to 40°C |
| Operating Humidity |
5% RH to 95% RH (non-condensing) |
| Power Adapter Input |
100 V to 240 V AC, 50 Hz/60 Hz |
| System Power Supply |
11 V to 14 V DC, 0.5 A |

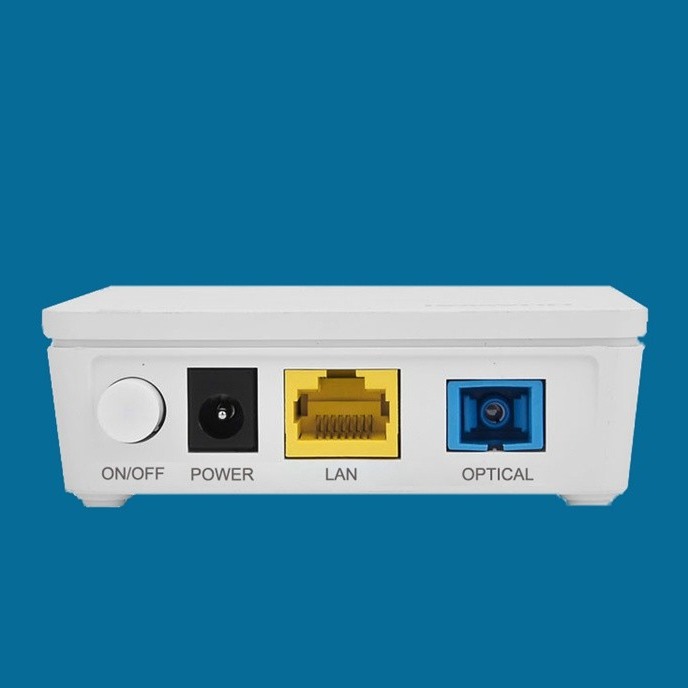

| Network-Side Ports |
1 x GPON |
| User-Side Ports |
1 x GE |
| Indicators |
Power/PON/LOS/LAN |
4. Panel lights Introduction
| Panel Light |
Status |
Description |
| POWER |
Green |
ON: successfully connect with power
OFF: fail to connect with power
|
| PON |
Green |
ON: ONU ports link correctly
Flicker: PON ports data is transmitting
OFF: ONU ports link faulty
|
| LOS |
Red |
Flicker: fail to connect with PON port
OFF: detected fiber to input
|
| LAN |
Green |
ON: correctly in link faulty
Flicker: data is transmitting in twisted-pair
OFF: link faulty in twisted-pair
|
