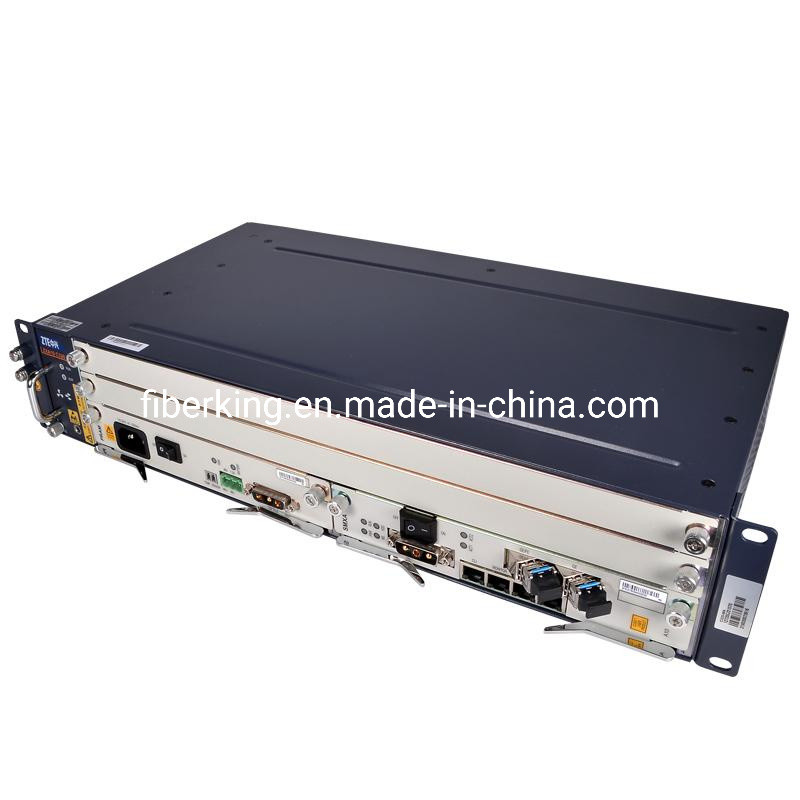

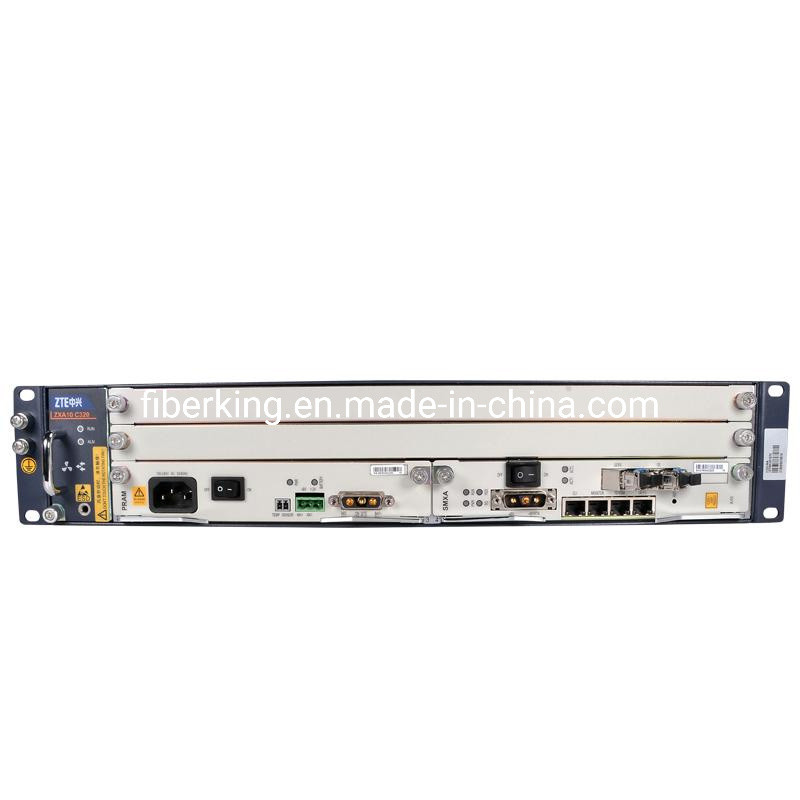

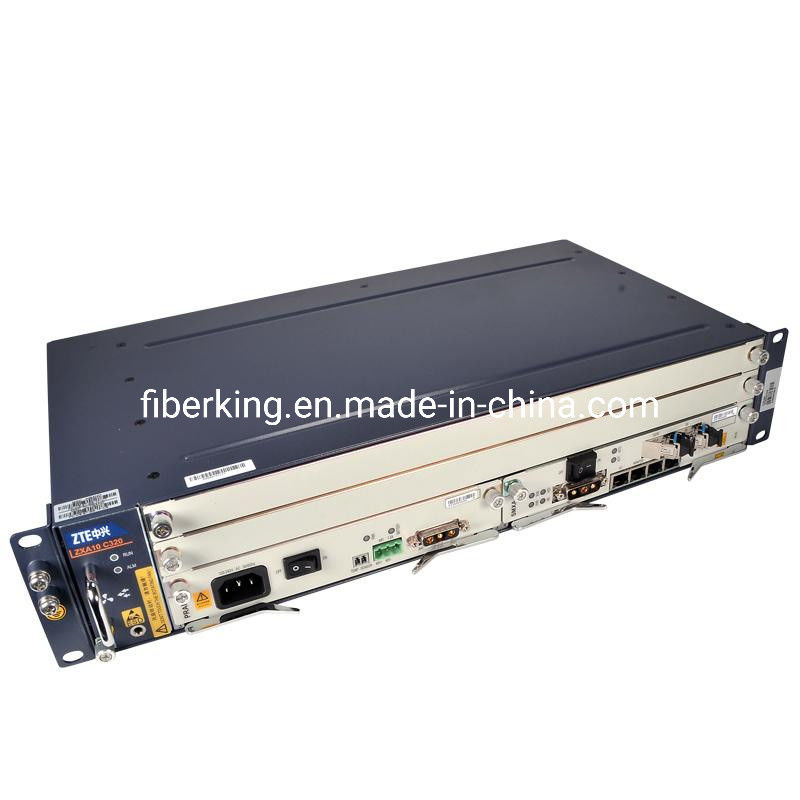

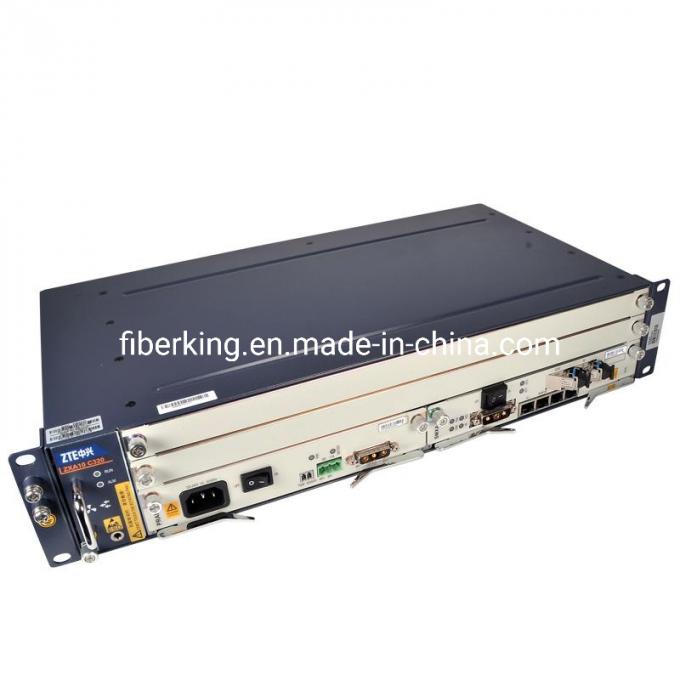

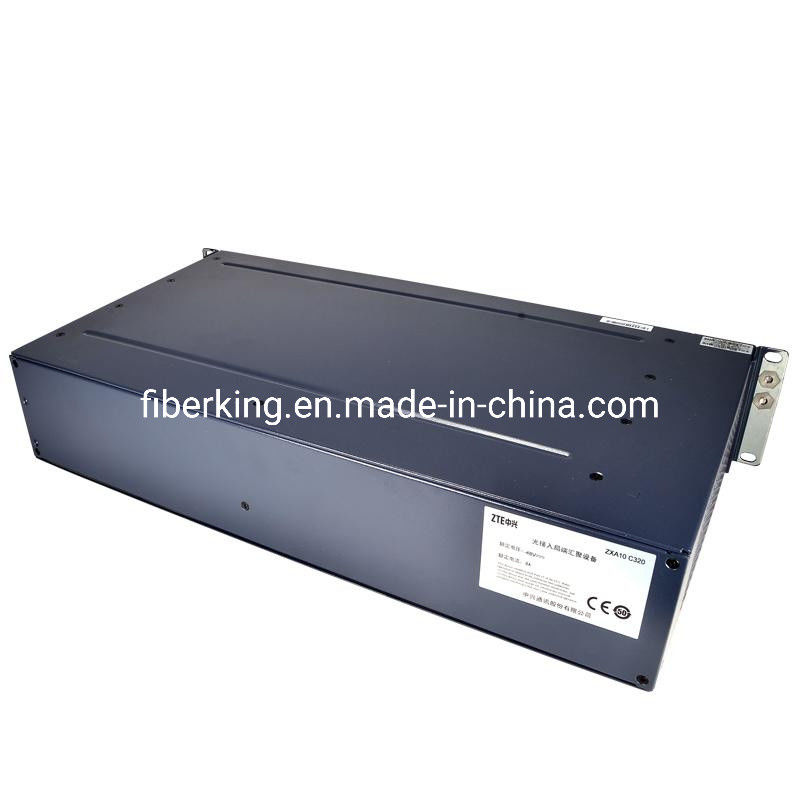

Zte Zxa10 C320 Gpon Epon Olt Smxa/10 Smxa/31 Pram AC
Zte Zxa10 C320 Gpon Epon Olt Smxa/10 Smxa/31 Pram AC Zte Zxa10 C320 Gpon Epon Olt Smxa/10 Smxa/31 Pram AC Zte Zxa10 C320 Gpon Epon Olt Smxa/10 Smxa/31 Pram AC Zte Zxa10 C320 Gpon Epon Olt Smxa/10 Smxa/31 Pram AC Zte Zxa10 C320 Gpon Epon Olt Smxa/10 Smxa/31 Pram AC
Contact Now

Zte Zxa10 C320 Gpon Epon Olt Smxa/10 Smxa/31 Pram AC

Minimum Order Quantity : 50pcs Price : Negociatable
Packaging Details : Carton Box Delivery Time : 7-15days
Payment Terms : T/T,Western Union Supply Ability : 10000pcs/Week
Place of Origin: China Certification: CE ROHS Anatel

Detail Information
Model NO.: ZTE ZXA10 C320 Trademark: ZTE
Specification: 40*25*15CM Origin: Cn
HS Code: 8517623290 Port: Yantian, China
Type: Optical Line Terminal Wiring Devices: ODF
Certification: ISO Condition: New
Application: FTTX Transport Package: Carton Box

Product Description

Product Description

Customer Question & Answer
Ask something for more details

ZTE ZXA10 C320, is a small size, full-service optical access convergentplatform, provides carrier class QoS and reliable network to meet the requirements for small-scale implementation of FTTx services.

Optional Configuration
For ZTE C320		Uplink + Control board + DC PowerAC DC Power
SMXA/12 x 1ge uplink port

PRAM
SMXA/31 x 1ge + 1 x 10ge uplink port
SMXA/52 x 10 ge uplink port

Key Features
----------------------------
Unified platform for GPON,XG-PON1 and P2P
Small size andcompact design, flexible network and fast deployment
2U frame with 2 service slots, compatible with ZXA10 C300 line cards
Abundant service support capability: IPTV, VoIP, HSI, VPN, mobile backhaul, etc
Higher security assurance: ONT authentication, user ID identification, port isolation, address binding, packet filtering, and broadcast packet suppression.
High reliability: key parts redundancy; support Type B and Type C protection for PON downlink and LACP/ UAPS/STP/ERPS for uplink
Service differentiation: Comprehensive QoS mechanisms for voice, video and high speed Internet services.
Support DC input redundancy
Support AC power supply
Support 1:1 protection for PON interfaces
Support 1:1 protection for SW (core card) card
Support 1588V2 and Synchronous Ethernet
Support embedded OTDR in SFP
System Architecture

Capacity
GPON up to 32 ports
Uplink interfaces up to 4 *GE (Optical )+2*GE(Electronic) or 2*10GE(Optical )+2*GE(Optical ) +2*GE(Electronic)

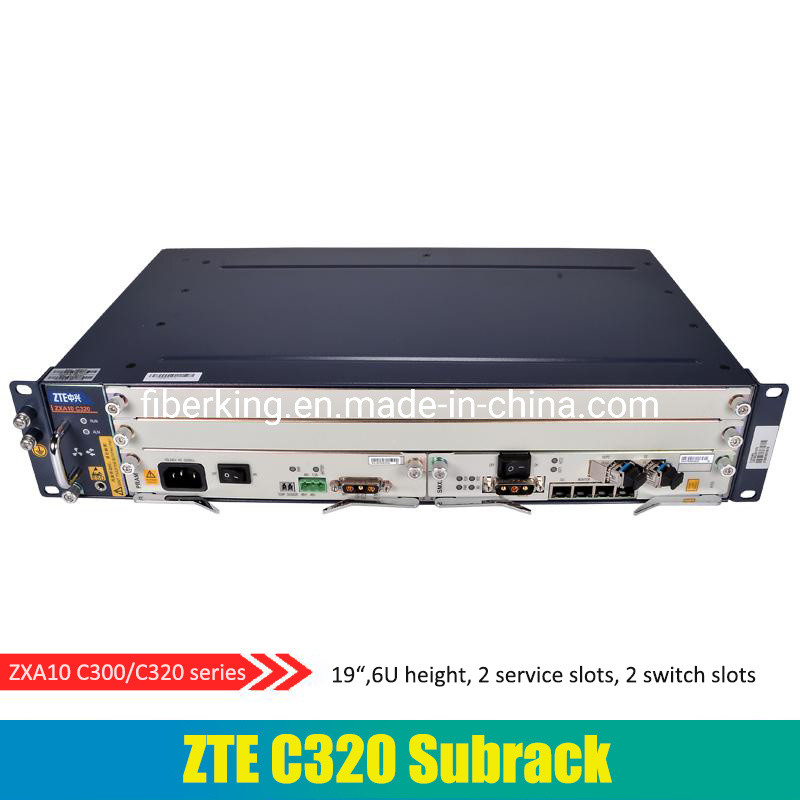

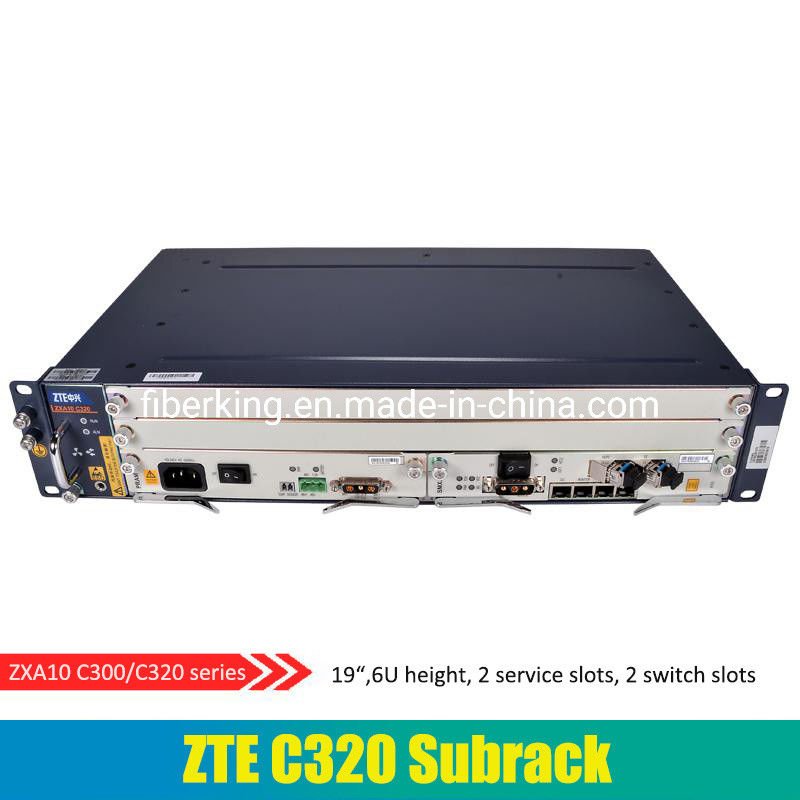

Chassis Configuration (19")
Total 5 slots
2 slots for universal line cards
2 slots for switch& control cards
1 slot for fan module
Subscriber Card Density
GPON card: 8/16 ports per card
XG-PON1 card: 8 ports per card
P2Pcard: 24/48 ports per card

Uplink interface card
1*10GE optical port ( Configurable 1*GE optical port)
1*GE optical port
1*10 M/100 M/1000 M electrical Ethernet port
Common interfaces
1*environment detecting interface
1*management interface
1*maintenance serial interface

PON Features
GPON compliant with ITU G.984.x
P2P compliant with ITU G.985/G.986
XG-PON1 compliant with ITUG.987.x andG.988
Support 1:128 optical split ratio for xPON
Support OLS (Optical Laser Supervising )
Max logical reach: 60km
Max physical reach: 20km
Max link difference: 20km
High-efficient DBA: NSR-DBA,SR-DBA
Synchronous Ethernet
GPON Transceiver power: Class B+ or class C+
XG PON1 Transceiver power: Class N1 and N2a TypeB and type C optical uplink protection
Support FEC
Support AES128
Support SCB
GPON MCM(Multi-Copy Multicast)
Support 1550nm for third party CATV broadcasting
L2/L3 Features
4K VLAN
1:1/N:1 VLAN
Zte Zxa10 C320 Gpon Epon Olt Smxa/10 Smxa/31 Pram AC 0
Zte Zxa10 C320 Gpon Epon Olt Smxa/10 Smxa/31 Pram AC 1
Zte Zxa10 C320 Gpon Epon Olt Smxa/10 Smxa/31 Pram AC 2
Zte Zxa10 C320 Gpon Epon Olt Smxa/10 Smxa/31 Pram AC 3

Packing & Delivery
----------------------------------------------
1pc in 1 carton;
12KG/carton;
60X39X25 cm
Zte Zxa10 C320 Gpon Epon Olt Smxa/10 Smxa/31 Pram AC 4
Zte Zxa10 C320 Gpon Epon Olt Smxa/10 Smxa/31 Pram AC 5
