Ma5800 X7 48gpon C+ Bundle 2xmpla 2xpila 3xgphf C+ SFP

Minimum Order Quantity : 50pcs Price : Negociatable
Packaging Details : Carton Box Delivery Time : 7-15days
Payment Terms : T/T,Western Union Supply Ability : 10000pcs/Week
Place of Origin: China Certification: CE ROHS Anatel

Detail Information

Model NO.: MA5800 X7 48GPON Trademark: HONGKING
Specification: MA5800 X7 OLT 48GPON Origin: China
HS Code: 8517622100 Port: Shenzhen, China
Type: Optical Line Terminal  Wiring Devices: ODF
Certification: ISO Condition: New
Feature: Gpon Olt Ma5800 X7 Transport Package: Carton Box

Product Description

Product Description

Customer Question & Answer
Ask something for more details

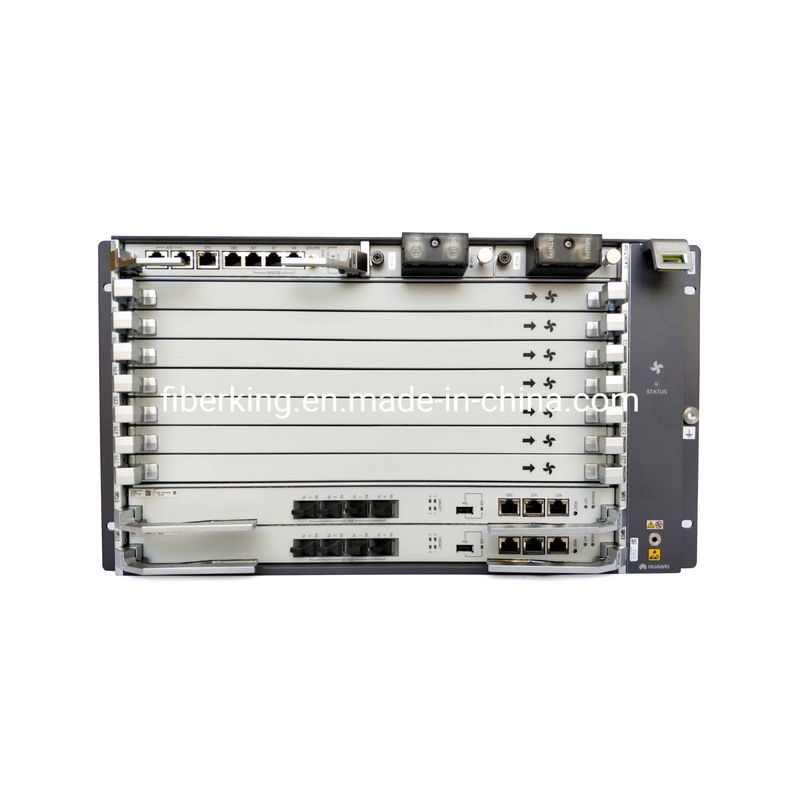

MA5800 X7 48GPON C+ bundle 2xMPLA 2xPILA 3xGPHF C+ SFP

Huawei MA5800 X7 16GPON C+ bundle equipped with 2xMPLA, 2xPILA, 3xGPHF C+ SFP Module

1+1 MPLA equipped, switching capacity 7 Tbit/s, 100 Gbit/s slot bandwidth

1+1 PILA equipped, redundance -48V DC power

3 PCS GPHF 16-Port GPON OLT Interface Board with 48 C+ SFP Module

3 Slots Occupied, 4 Slots Remain

2 power cable, 1 earth cable, 1 accessory package

Ma5800 X7 48gpon C+ Bundle 2xmpla 2xpila 3xgphf C+ SFP

Switching Capacity3.6 Tbit/s
Slot Bandwidth100 Gbit/s
Service Slots3 slot occupied, 4 remain
Power SupplyDC:  -48V DC
Number of Services EquippedService InterfaceEquippedService InterfaceEquipped
Mechanical specification
Dimensions (W x D x H excluding mounting brackets)442.00 mm x 283.20 mm x 263.90 mm
Dimensions (W x D x H, including mounting brackets)535.00 mm x 283.20 mm x 263.90 mm, for ETSI cabinet
Working environment temperatureFor an indoor cabinet
Configured with 1 subrack: -25°C to +65°C
Configured with 2 subracks: -25°C to +55°C
Power Consumption

Static power consumption 164w

Maximum power consumption 425w

Typical power consumption 294.5w

Atmosphere pressure61 kPa to 106 kPa
Altitude< 4000 m


Ma5800 X7 48gpon C+ Bundle 2xmpla 2xpila 3xgphf C+ SFP


Huawei SmartAX MA5800 X7 NG OLT, 19inch, with 6U height 7 service slots, 200G throughput per slot, support GPON, 10G PON, 40G/100G PON ready; H901BPMB subrack equipped with 2xH901MPLA, 2xH901PILA

Huawei MA5800 X7 NG OLT H901BPMB subrack equipped with 2xH901MPLA, 2xH901PILA

Comes with 2PCS power cable, 1PCS earth cable, accessory package

Huawei MA5800 X7 NG OLT MAX 7168 ONTs

Chassis supports 7 Service Slots

Supports GPON, 10G PON, smoothly evolve to 40G/100G PON

Supports 4*GE/10GE upstream ports embedded in Main Control Board MPLA/MPLB

Supports 16 port GPON interface card GPHF, GPSF

Supports 8 port 10GPON interface card XGHD, TWED

Support 262143 MAC address, 65536 ARP table

Supports over 8 times MAC address and ARP table more than MA5680T

Supports 1:64 eOTDR

Supports DOCSIS 3.1 standard

Product Specifications
Switching capacity of the system

H901MPLA/H902MPLA: 3.6 Tbit/s

H901MPLB: 7 Tbit/s

Maximum bandwidth per slotH901MPLB: 200 Gbit/s
H901MPLA/H902MPLA: 100 Gbit/s
Maximum number of MAC address262144
Maximum number of ARP/routing entries131072
Maximum number of concurrent 4K video users8000
GPON ports112
XG-PON ports112
XGS-PON ports56
GE/FE ports336
10GE ports56
Cabinet supportedN63E-22
Board Supported
Control Board
H901MPLBIt provides 4 GE/10GE upstream transmission ports and supports load sharing. By default, MA5800 connects to upstream network through the control board
H901CKUASupports stratum-3 clock functions by working with MPLB and MPLA
Upstream interface board
H901NXEDEnhanced 8-port 10GE upastream interface board, supporting 10GE/GE Ethernet upstream transmission. NXED is used when upstream ports currently provided in MA5800 are not enough.
Universal interface board
H901CIUAProvides synchronous time/clock signal input&output interfaces, alarm parameter/Boolean value input&output interface. RS485 serial ports, and provides transparent transmission Ethernet ports.
Service board
H901GPHFProvides 16 GPON ports for access services
H901GPSFProvides 16 GPON ports for home access services
H901XGHDProvides 8 asymmetric 10G GPON ports for access services.
H901TWEDProvides 8 symmetric 10G GPON ports for access services.
H901EDSH32-channel E1 upstream board, supporting native TDM mode.
H901OGHK48-port aggregated GE/FE optical interface board, supporting up to 48 channels of GE/FE
H901OXHD8-port aggregated 10GE optical interface board, supporting GE/10GE Ethernet aggregation.
Power board
H901PILAProvides -48V DC input
Fan Monitoring board
H901FMLASupplier power to fans; controls and moniotes the fans
H901FMMASupplier power to fans; controls and moniotes the fans
(W x D x H) (mm)
6 U high and 19 inch wide
Excluding mounting brackets: 442x268.7x263.9
Including IEC mounting brackets: 482.6x268.7x263.9
Including ETSI mounting brackets:535x268.7x263.9
Maximum weight(including mounting brackets)26 kg
Maximum input current40 A
Power supplyPower supply mode: DC
Working voltage range: -38.4 V to -72 V
Rated voltage: -48 V / -60 V
Ambient temperature-40°C to +65°C The MA5800 can start up at a lowest
The MA5800 can start up at a lowest temperature of -25°C and run at -40°C.
Note:The 65°C temperature refers to the highest temperature measured at the air intake vent of service subrack.
Ambient humidity5% RH to 95% RH





Q: What are the system specifications differences among MA5800 series OLT?


Switching capacity of the control boardH901MPLA/H901MPLB: 7 Tbit/sH901MPSC: 480 Gbit/s

Maximum bandwidth per service slot (load sharing mode)

H901MPLA: 100 Gbit/s
H901MPLB: 200 Gbit/s
H901MPSC: 80 Gbit/s
Maximum number of concurrent 4K video users1600080002000


Q: What are the physical specifications differences among MA5800 series OLT?


Rack type21inch19inch
Maximum weight(including mounting brackets)45kg35kg26kg9.4kg
Maximum input current60A40ADC power supply: 20A
AC power supply: 8 A


Q: What are the maximum number of ports in MA5800 series subrack?


GPON ports27224011232
10G GPON ports1361205616
GE/FE ports81672033632
10GE ports1361205616
E1 ports54448022464


Q: What is the great improvement of MA5800?

A: Great improvement:

  • Symmetric 10G GPON (XGS PON): Supports XGS PON , Improves the upstream bandwidth from 2.5G to 10G and enhances symmetric service supporting.

  • ONT energy saving: Supports the ONT sleep mode. Reduces ONU power consumption for environmental protection.

  • 8 times MAC address and ARP table than MA5680T and MA5683T.


Q: Does MA5800 have new typical New Hardware Board?

A: Yes, H901TWED, 8-port symmetric 10G GPON interface board, it works together with the optical network terminal (ONT) to provide 10G GPON access services.


Q: How to configure Ring Check of the MA5800?

A: The Ring Check feature enables the device to send the Ring Check packets periodically and monitors the Ring Check packets received on the user-side, cascade-side, and network-side to detect whether a loop occurs on the network of the carrier. If a loop occurs, the MA5800 deactivates the subscriber port on the loop and reports the corresponding alarm to the NMS. This ensures that the device runs in the normal state and that legal users are not affected.

  • Run the ring check enable command to enable the user-side ring network detection.

  • Run the ring check uplink detection enable command to enable the network-side ring network detection.

  • Run the ring check cascade detection enable command to enable the cascade-side ring network detection.


Q: Why switchover occurs between the active and standby boards?

A: Possible Causes:

  • The active/standby switchover command is manually executed.

  • The original active control board is faulty.

  • The physical port or line on the original active control board is faulty.

  • The active control board is faulty, causing a protective switchover of the system.

  • The clock daughter board of the original control board is faulty.

  • The system performs a periodical switchover.


Q: How many 10 GE ports on MA5800?

A: 8 x 10 GE SFP+ interface or 8 x GE SFP/eSFP interface.


Q: Can MA5800 support 4K video?

A: Each sub-rack supports up to 32K users with 100 Mbit/s of non-blocking bandwidth, letting everyone enjoy seamless 4K video.


Q: Does MA5800 support the Multicast?

A: Yes, it supports Layer 3 multicast networking, also supports IPv4 PIM SSM.

  • Protocol Independent Multicast-Source-Specific Multicast (PIM-SSM) enables a user host to rapidly join a multicast group if the user knows a multicast source address. PIM-SSM sets up a shortest path tree (SPT) from a multicast source to a multicast group, while PIM-SM uses rendezvous points (RPs) to set rendezvous point trees (RPTs). Therefore, PIM-SSM implements a more rapid join function than PIM-SM.

  • Different from the any-source multicast (ASM) model, the SSM model does not need to maintain an RP, construct an RPT, or register a multicast source.

  • The SSM model is based on PIM-SM and IGMPv3. The procedure for setting up a multicast forwarding tree on a PIM-SSM network is similar to the procedure for setting up an SPT on a PIM-SM network. The receiver's DR, which knows the multicast source address, sends Join messages directly to the source so that multicast data streams can be sent to the receiver's designated router (DR).


Q: Does MA5800 support the VPLS?

A: The Virtual Private LAN Service (VPLS), also called the Transparent LAN Service (TLS) or virtual private switched network service, is a Layer 2 VPN (L2VPN) technology that is based on Multi-Protocol Label Switching (MPLS) and Ethernet technologies.
