ZTE GTGH Pon port 16ports GPON Card Transmission distance 20KM
Contact Person : Anna
Phone Number : +852 68416561
WhatsApp : +85268416561
|Model NO.:||MA5800 X7 2xMPLA 2xPILA||Trademark:||HONGKING|
|Specification:||MA5800 X2 2xMPSC 1xPISB||Origin:||China|
|HS Code:||8517622100||Port:||Shenzhen, China|
|Type:||Optical Line Terminal ||Wiring Devices:||ODF|
|Feature:||Gpon Olt Ma5800 X7||Transport Package:||Carton Box|

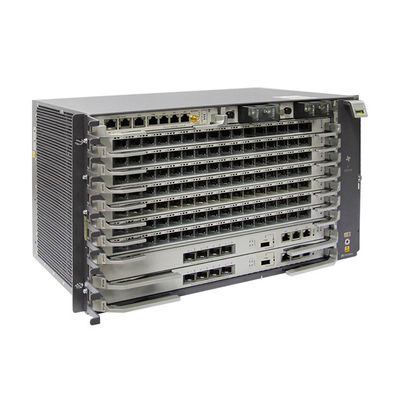

Huawei MA5800 X7 OLT H901BPMB service subrack with 2xMPLA 2xPILA

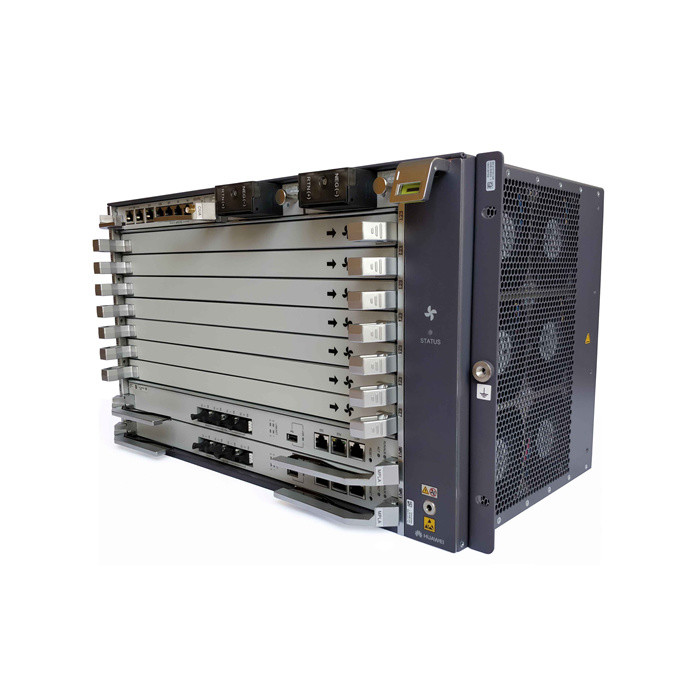

Huawei SmartAX MA5800 X7 NG OLT, 19inch, with 6U height 7 service slots, 200G throughput per slot, support GPON, 10G PON, 40G/100G PON ready; H901BPMB subrack equipped with 2xH901MPLA, 2xH901PILA
Huawei MA5800 X7 NG OLT H901BPMB subrack equipped with 2xH901MPLA, 2xH901PILA
Comes with 2PCS power cable, 1PCS earth cable, accessory package
Huawei MA5800 X7 NG OLT MAX 7168 ONTs
Chassis supports 7 Service Slots
Supports GPON, 10G PON, smoothly evolve to 40G/100G PON
Supports 4*GE/10GE upstream ports embedded in Main Control Board MPLA/MPLB
Supports 16 port GPON interface card GPHF, GPSF
Supports 8 port 10GPON interface card XGHD, TWED
Support 262143 MAC address, 65536 ARP table
Supports over 8 times MAC address and ARP table more than MA5680T
Supports 1:64 eOTDR
Supports DOCSIS 3.1 standard
|Switching capacity of the system|
H901MPLA/H902MPLA: 3.6 Tbit/s
H901MPLB: 7 Tbit/s
|Maximum bandwidth per slot||H901MPLB: 200 Gbit/s|
H901MPLA/H902MPLA: 100 Gbit/s
|Maximum number of MAC address||262144|
|Maximum number of ARP/routing entries||131072|
|Maximum number of concurrent 4K video users||8000|
|H901MPLB||It provides 4 GE/10GE upstream transmission ports and supports load sharing. By default, MA5800 connects to upstream network through the control board|
|H901CKUA||Supports stratum-3 clock functions by working with MPLB and MPLA|
|Upstream interface board|
|H901NXED||Enhanced 8-port 10GE upastream interface board, supporting 10GE/GE Ethernet upstream transmission. NXED is used when upstream ports currently provided in MA5800 are not enough.|
|Universal interface board|
|H901CIUA||Provides synchronous time/clock signal input&output interfaces, alarm parameter/Boolean value input&output interface. RS485 serial ports, and provides transparent transmission Ethernet ports.|
|H901GPHF||Provides 16 GPON ports for access services|
|H901GPSF||Provides 16 GPON ports for home access services|
|H901XGHD||Provides 8 asymmetric 10G GPON ports for access services.|
|H901TWED||Provides 8 symmetric 10G GPON ports for access services.|
|H901EDSH||32-channel E1 upstream board, supporting native TDM mode.|
|H901OGHK||48-port aggregated GE/FE optical interface board, supporting up to 48 channels of GE/FE|
|H901OXHD||8-port aggregated 10GE optical interface board, supporting GE/10GE Ethernet aggregation.|
|H901PILA||Provides -48V DC input|
|Fan Monitoring board|
|H901FMLA||Supplier power to fans; controls and moniotes the fans|
|H901FMMA||Supplier power to fans; controls and moniotes the fans|
(W x D x H) (mm)
|6 U high and 19 inch wide|
Excluding mounting brackets: 442x268.7x263.9
Including IEC mounting brackets: 482.6x268.7x263.9
Including ETSI mounting brackets:535x268.7x263.9
|Maximum weight(including mounting brackets)||26 kg|
|Maximum input current||40 A|
|Power supply||Power supply mode: DC|
Working voltage range: -38.4 V to -72 V
Rated voltage: -48 V / -60 V
|Ambient temperature||-40°C to +65°C The MA5800 can start up at a lowest|
The MA5800 can start up at a lowest temperature of -25°C and run at -40°C.
Note:The 65°C temperature refers to the highest temperature measured at the air intake vent of service subrack.
|Ambient humidity||5% RH to 95% RH|
Q: What are the system specifications differences among MA5800 series OLT?
|Switching capacity of the control board||H901MPLA/H901MPLB: 7 Tbit/s||H901MPSC: 480 Gbit/s|
Maximum bandwidth per service slot (load sharing mode)
|H901MPLA: 100 Gbit/s|
H901MPLB: 200 Gbit/s
|H901MPSC: 80 Gbit/s|
|Maximum number of concurrent 4K video users||16000||8000||2000|
Q: What are the physical specifications differences among MA5800 series OLT?
|Maximum weight(including mounting brackets)||45kg||35kg||26kg||9.4kg|
|Maximum input current||60A||40A||DC power supply: 20A|
AC power supply: 8 A
Q: What are the maximum number of ports in MA5800 series subrack?
|10G GPON ports||136||120||56||16|
Q: What is the great improvement of MA5800?
A: Great improvement:
Symmetric 10G GPON (XGS PON): Supports XGS PON , Improves the upstream bandwidth from 2.5G to 10G and enhances symmetric service supporting.
ONT energy saving: Supports the ONT sleep mode. Reduces ONU power consumption for environmental protection.
8 times MAC address and ARP table than MA5680T and MA5683T.
Q: Does MA5800 have new typical New Hardware Board?
A: Yes, H901TWED, 8-port symmetric 10G GPON interface board, it works together with the optical network terminal (ONT) to provide 10G GPON access services.
Q: How to configure Ring Check of the MA5800?
A: The Ring Check feature enables the device to send the Ring Check packets periodically and monitors the Ring Check packets received on the user-side, cascade-side, and network-side to detect whether a loop occurs on the network of the carrier. If a loop occurs, the MA5800 deactivates the subscriber port on the loop and reports the corresponding alarm to the NMS. This ensures that the device runs in the normal state and that legal users are not affected.
Run the ring check enable command to enable the user-side ring network detection.
Run the ring check uplink detection enable command to enable the network-side ring network detection.
Run the ring check cascade detection enable command to enable the cascade-side ring network detection.
Q: Why switchover occurs between the active and standby boards?
A: Possible Causes:
The active/standby switchover command is manually executed.
The original active control board is faulty.
The physical port or line on the original active control board is faulty.
The active control board is faulty, causing a protective switchover of the system.
The clock daughter board of the original control board is faulty.
The system performs a periodical switchover.
Q: How many 10 GE ports on MA5800?
A: 8 x 10 GE SFP+ interface or 8 x GE SFP/eSFP interface.
Q: Can MA5800 support 4K video?
A: Each sub-rack supports up to 32K users with 100 Mbit/s of non-blocking bandwidth, letting everyone enjoy seamless 4K video.
Q: Does MA5800 support the Multicast?
A: Yes, it supports Layer 3 multicast networking, also supports IPv4 PIM SSM.
Protocol Independent Multicast-Source-Specific Multicast (PIM-SSM) enables a user host to rapidly join a multicast group if the user knows a multicast source address. PIM-SSM sets up a shortest path tree (SPT) from a multicast source to a multicast group, while PIM-SM uses rendezvous points (RPs) to set rendezvous point trees (RPTs). Therefore, PIM-SSM implements a more rapid join function than PIM-SM.
Different from the any-source multicast (ASM) model, the SSM model does not need to maintain an RP, construct an RPT, or register a multicast source.
The SSM model is based on PIM-SM and IGMPv3. The procedure for setting up a multicast forwarding tree on a PIM-SSM network is similar to the procedure for setting up an SPT on a PIM-SM network. The receiver's DR, which knows the multicast source address, sends Join messages directly to the source so that multicast data streams can be sent to the receiver's designated router (DR).
Q: Does MA5800 support the VPLS?
A: The Virtual Private LAN Service (VPLS), also called the Transparent LAN Service (TLS) or virtual private switched network service, is a Layer 2 VPN (L2VPN) technology that is based on Multi-Protocol Label Switching (MPLS) and Ethernet technologies.
