Huawei MA5683T H802MABO OLT service subrack with 2xSCUN 2xPRTEHuawei SmartAX MA5683T GPON OLT, 19inch, with 5U height 6 service slots, support EPON, GPON, 10G PON, P2P service; H802MABO subrack equipped with 2xH801SCUN, 2xH801PRTE

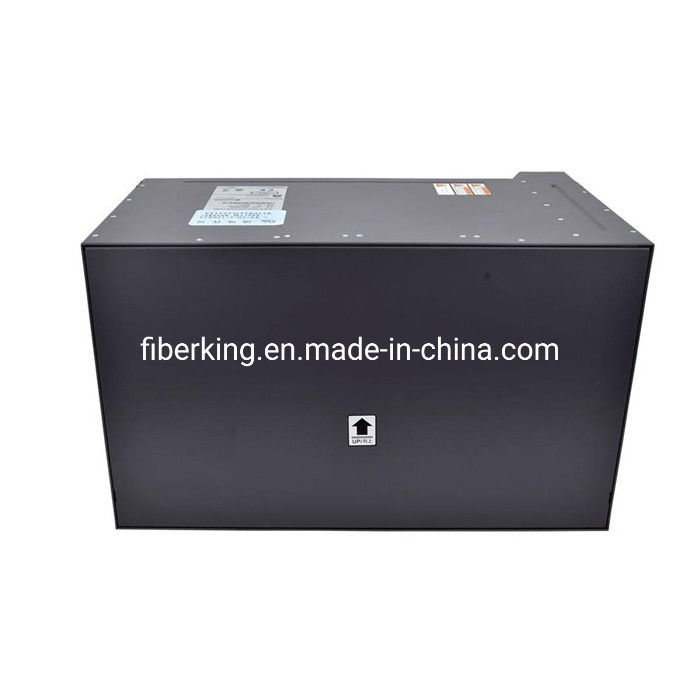

Huawei MA5683T GPON OLT H802MABO subrack equipped with 2xH801SCUN, 2xH801PRTE
Comes with 2 PCS power cable, 1 PCS earth cable, 2 PCS mount ear, accessory package
Huawei MA5683T GPON OLT system
DC power supply
Chassis supports 6 Service Slots
Two power slot redundancy for DC power input
Two slot redundancy for main control board
Two slot for uplink board
Support 10 GPON, GPON, EPON and P2P service
Support 8-GPON port interface card GPBD, 16-GPON port interface card GPFD
Support GPON split ration 1:128
Support GE uplink board (GICF) or 10GE uplink board (X2CS)
MA5683T Software Version available at V800R011, V800R013, V800R015, V800R017
| Model No. | MA5680T | MA5683T | MA5608T |
| Dimension: | 490*275.8*447.2mm | 442*283.2*263mm | 442*233.5*88mm |
| Operating Environment | Temperature: -25ºC~+55ºC Humidity:5%~95% (non-condensing) | Temperature: -40ºC~+65ºC Humidity:5%~95% (non-condensing) | Temperature: -40ºC~+65ºC Humidity:5%~95% (non-condensing) |
| Power Supply Parameters | -48V DC input Supports dual power protection Working Voltage range -38.4V~-72V | -48V DC input Supports dual power protection Working Voltage range -38.4V~-72V | -48V DC input Supports dual power protection Working Voltage range -38.4V~-72V Support 220V / 110V AC input |
| Backplane Exchange capacity | 3.2Tbit/s | 1.5Tbit/s | 720Gbit/s |
| Control Board Exchange Capacity | 1920 Gbit/s | 960Gbit/s | 512Gbit/s |
| Access Capacity | 128*10G EPON 64*10G GPON 128*EPON 256*GPON 768*GE | 48*10G EPON 24*10G GPON 48*EPON 96*GPON 288*GE | 16*10G EPON 8*10G GPON 16*EPON 32*GPON 96*GE |
| Access Type | Upstream interface: 10GE optical, GE optical/electricity Business interface: EPON optical port, GPON optical port, 10G EPON optical port, P2P FE optical port, P2P GE optical port, Ethernet optical interface |
| System Performance | Layer 2 / Layer 3 wire-speed forwarding Support static router /RIP/OSPE.MPLS BITS/E1/STM-1/Ethernet/1588v2/1PPS+ToD clock Maximum support 1:256 splitting ratio Maximum support 60KM logical distance |
| System performance |
| Backplane bus switching capacity | 1.5 Tbit/s |
| System L2 packet forwarding rate Power | SCUB: 72 Mpps
SCUN: 726 Mpps(Active/Standby mode), 1452 Mpps(Load-sharing mode)
SCUK: 726 Mpps(Active/Standby mode), 1452 Mpps(Load-sharing mode)
SCUF: 190 Mpps
SCUH: 1428 Mpps(Active/Standby mode), 2856 Mpps(Load-sharing mode) |
| Control board switching capacity | SCUB: 48 Gbit/s
SCUN: 480 Gbit/s(Active/Standby mode), 960Gbit/s(Load-sharing mode)
SCUK: 480 Gbit/s(Active/Standby mode), 960Gbit/s(Load-sharing mode)
SCUF: 128 Gbit/s
SCUH: 960 Gbit/s(Active/Standby mode), 1920Gbit/s(Load-sharing mode) |
| Switching/Forwarding delay | Short forwarding delay:The 100 Mbit/s Ethernet port sends the 64-byte Ethernet packets at a delay shorter than 20 μs. |
| BER in full load | BER of port when transmitting data in full load < 10 e-7 |
| System performance |
| System | Redundant configuration |
| System availability in typical configuration | >99.999% |
| Mean Time Between Failures (year) | ≈45 |
| Configuration |
| Maintenance port | Number of 10 Mbit/s/100 Mbit/s maintenance Ethernet ports: 1
Number of serial ports for local/remote maintenance: 1 |
| Monitoring port | Number of environment monitoring serial ports: 1 |
| Maximum number of GPON ports in a subrack | 96 |
| Maximum number of 10G GPON ports in a subrack | 24 |
| Maximum number of P2P FE ports in a subrack | 288 |
| Maximum number of P2P GE ports in a subrack | 288 |
| Maximum number of upstream ports (GE ports in the GIU slot) in a subrack | 8 |
| Maximum number of upstream ports (10GE ports in the GIU slot) in a subrack | 4 |
| Management ports |
| Outband management Ethernet port (RJ-45) | SCUB/SCUN/SCUF/SCUH control board: 1 Port Board |
| Local serial port (Console) | SCUB/SCUN/SCUF/SCUH control board: 1 Port Board |
| Upstream ports |
| GE electrical port | GICE: 4 Ports Board
GICG: 2 Ports Board |
| GE optical port | GICF/GICK: 2 Ports Board
SCUB/SCUN/SCUH/GICD/GSCA: 4 Ports Board
ETHB/SPUA/SPUF: 8 Ports Board
SPUC: 40 Ports Board |
| 10GE optical port | X2CS/SPUA: 2 Ports Board
SPUC: 4 Ports Board
SPUF: 8 Ports Board |
| E1 port | TOPA: 16 Ports Board |
| STM-1 upstream optical port | TOPA: 2 Ports Board |
| PON upstream optical port | P2CA: 2 Ports Board (One PON port is available and the other is backup.) |
| Service ports |
| GPON port | GPBD/GPBH: 8 Ports Board
GPFD: 16 Ports Board |
| 10G GPON port | XGBC: 4 Ports Board
XGBD: 8 Ports Board |
| P2P GE optical port | OPGD/OPGE: Single-fiber bi-directional: 48 Ports Board, Two-fiber bi-directional: 24 Ports Board |
| P2P FE optical port | OPFA: 16 Ports Board
OPGD/OPGE: Single-fiber bi-directional: 48 Ports Board, Two-fiber bi-directional: 24 Ports Board |
| Ethernet optical port | ETHB: 8 Ports Board |
| E1 port | H802EDTB: 16 Ports Board |
| Device Specifications |
| Dimensions (W x D x H excluding mounting brackets) | 442.00 mm x 283.20 mm x 263.90 mm |
| Dimensions (W x D x H, including mounting brackets) | 535.00 mm x 283.20 mm x 263.90 mm, for ETSI cabinet
482.60 mm x 283.20 mm x 263.90 mm, for IEC cabinet |
| Weight (empty chassis) | 7.0kg |
| Working environment temperature | For an indoor cabinet
Configured with 1 subrack: -25°C to +65°C
Configured with 2 subracks: -25°C to +55°C |
| Working environment humidity | 5% RH to 95% RH |
| Atmosphere pressure | 61 kPa to 106 kPa |
| Altitude | < 4000 m |
Q&A
Q: What is the difference between MA5683T and MA5603T?
A: MA5603T is multi service based while MA5683T is just OLT, MA5603T can support service like ADSL, VDSL, GPON etc, while MA5683T only supports GPON, P2P etc, but their hardware and configuration command is the same. The same as MA5680T and MA5600T.
Q: What is the difference between MA5683T and MA5680T?
A: The only difference is capacity, MA5683T max support 6 service slots, MA5680T max support 16 service slots. So MA5683T with smaller chassis.
Q: What is the most hot selling Huawei OLT?
A: MA5683T is the best-selling OLT, next is MA5680T.
Q: Do you provide configuration manual to me if we purchase MA5683T from you?
A: Yes, you may contact our sales representative or our support team.
Q: Can I get technical support from thunder-link.com if we purchase MA5683T from you?
A: Yes, thunder-link.com has experienced technical team on Huawei FTTx solution, however, you may need to purchase technical support service from us as by default we only provide one year hardware warranty.
Q: Does MA5683T support AC power?
A: No, only support DC power, but you can purchase a telecom level AC to DC converter if you just have AC power source.
Q: Does the GPON SFP Module included in the bundle?
A: Yes, with GPBD board, 8 C+ SFP Module are included for free.
Q: Can I use MA5683T main control board SCUN as uplink so as to save the uplink board cost?
A: Yes, you can, but we don't suggest, as Huawei OLT SCUN load balance is not well supported, so most customers are using SCUN in active/standby mode, if OLT lose power, which SCUN will work as the active SCUN will be randomly, which may affect service, also if the link is down, the active SCUN will not shift to the standby SCUN (it will only shift when SCUN board is down), then service may get affected also.
Q: Can I have 1000 Base-T as uplink?
A: Yes, instead of GICF uplink board you can purchase GICG uplink board, if use GICF, you can buy a electrical SFP module then you can have 1000 Base-T.
Q: What is the difference between different GPON board?
A:
| Board | GPON Type | Port Quantity | Optical Module | Maximum Split Ratio |
| H807GPBD | 1G-GPON | 8 | SFP (Class B+ and Class C+/Class C++) | 1:128 |
| H805GPBD/H806GPBD | 1G-GPON | 8 | SFP (Class B+ and Class C+/Class C++) | 1:128 |
| H802GPFD | 1G-GPON | 16 | SFP (Class B+ and Class C+/Class C++) | 1:128 |
| H805GPFD | 1G-GPON | 8 | SFP (Class B+ and Class C+/Class C++) | 1:128 |
| H802XGBC | 10G-GPON | 4 | SFP (Class B+ and Class C+/Class C++) | 1:128 |
H805GPFD and H807GPBD are most selected items.
Q: Can I use a 3rd party ONT with the MA5683T?
A: We don't suggest so, as the understanding of TR069/OMCI protocol may different between different vendors.
Q: Can I buy 10G uplink board instead of GE?
A: Yes, then you may request our sales quote you X2CS board instead of GICF uplink board, each X2CS provide 2*10G ports.
Q: What is the difference among GPON B+, GPON C+, and GPON C++ transceiver?
A:
| | B+ Module | C+ Module | C++ Module |
| Type | One-fiber bi-directional optical module, class B+ | One-fiber bi-directional optical module, class C+ | One-fiber bi-directional optical module, class C++ |
| Operating Wavelength | Tx: 1490 nm
Rx: 1310 nm |
| Encapsulation Type | SFP |
| Port Rate | Tx:2.49Gbit/s Rx:1.24Gbit/s | Tx:2.488Gb/s Rx:1.244Gb/s |
| Minimum Output Optical Power | 1.50 dBm | 3.00 dBm | 6.00 dBm |
| Maximum Output Optical Power | 5.00 dBm | 7.00 dBm | 10.00 dBm |
| Maximum Receiver Sensitivity | -28.00 dBm | -32.00 dBm | -35.00 dBm |
| Optical Connector Type | SC/PC | SC/UPC |
| Optical Fiber Type | Single-mode |
| Reach | 20.00km |
| Overload Optical Power | -8.0 dBm | -12.0 dBm | -15.0 dBm |
| Extinction Ratio | 8.2 dB |
Q: What is the max transmit distance between GPON OLT and ONT?
A: Max 20KM.
Q: Do you also offer FTTH tool and accessories?
A: Yes, as a FTTx solution provider, also we offer FTTx accessories like FTTH tool box, optical splitter, terminal box, patch cord, power system etc.
Q: Can I update my MA5683T/MA5603T from V8R11 to V8R15?
A: Yes, it's possible. Please don't forget load new MA5683T/MA5603T IO-packet after software upgraded.
For detail please refer to Huawei OLT MA5600T series equipment upgrade instructions.
Q: Do you provide Huawei MA5683T configuration manual to me if we purchase H805GPFD from you?
A: Yes, you may refer to OLT board configuration, if you have more question you can contact our sales representative.
