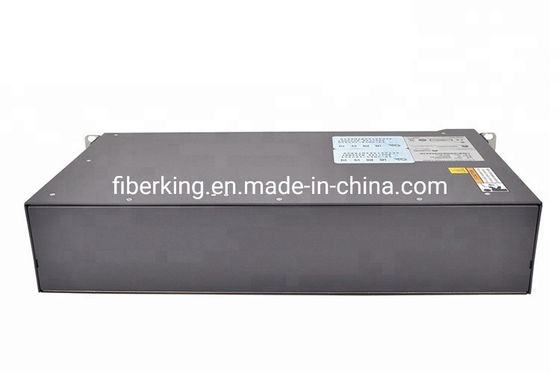

Optical Ma5608t H801mabr Huawei Olt Service Subrack Chassis

Minimum Order Quantity : 50pcs Price : Negociatable
Packaging Details : Carton Box Delivery Time : 7-15days
Payment Terms : T/T,Western Union Supply Ability : 10000pcs/Week
Place of Origin: China Certification: CE ROHS Anatel

Detail Information

Model NO.: MA5608T H801MABR Item 3: Ma5608t Olt 1 Mcud1 1 Mpwc
Item 4: Ma5608t Olt 1 Mcud1 1 Mpwd Item 5: Ma5608t Olt 2 Mcud 1 Mpwc
Item 6: Ma5608t Olt 2xmcud 1xmpwd Item 7: Ma5608t Olt 2 Mcud1 1 Mpwc
Item 8: Ma5608t Olt 2 Mcud1 1 Mpwd Trademark: Hongking
Transport Package: Carton Box Specification: MA5608T Dual 10GE AC 32GPON C+
Origin: China HS Code: 8517622100
Port: Shenzhen, China Type: Optical Line Terminal
Wiring Devices: ODF Certification: ISO
Condition: New Item 1: Ma5608t Olt 1 Mcud 1 Mpwc
Item 2: Ma5608t Olt 1 Mcud 1 Mpwd

Product Description

Product Description

Customer Question & Answer
Ask something for more details

Description:
Huawei SmartAX MA5608T GPON OLT, 19 inch, with 2U height  2 service slots, support EPON, GPON, 10G PON, P2P, xDSL and POTS; H801MABR subrack

Optical Ma5608t H801mabr Huawei Olt Service Subrack Chassis



Huawei MA5608T GPON OLT H801MABR subrack

Comes with 2 PCS power cable, 1 PCS earth cable, 2 PCS mount ear, accessory package

 Huawei MA5608T compatible 2U height GPON OLT system

Chassis supports 2 Service Slots

One power slot, can supply with 2 ports DC redundancy, or AC and DC redundancy (battery)

Two slot redundancy for main control board

Support GPON, EPON and P2P (Optical Access);xDSL and POTS(Copper Access)

Support GPON & EPON simultaneously

Support 8-GPON port interface card GPBD, 16-GPON port interface card GPFD

Support GPON split ration 1:128

Support GE uplink (embedded in MCUD main control board) or 10GE uplink (embedded in MCUD1 main control board)

MA5608T Software Version available at V800R012 or V800R013



Huawei MA5608T is a aggregation Optical Line Terminal (OLT), it supports up to 2 service slots and can support maximum 4096 subscribers (GPON). MA5608T has MCUD/MCUD1 Main Control Board available for selection, and one power slot redundancy for AC or DC power input.Total of 8 bundle line. Besides that, Thunder-link.com also offers more bundle line, to meet your different requirement on various scenario.



Optical Ma5608t H801mabr Huawei Olt Service Subrack Chassis


Huawei MA5608T equipped with 2xMCUD1 (2xGE SFP+2xGE/10GE SFP+ Uplink, include 2 GE SFP Module) 1xMPWD AC Power Module, 2xGPFD C+

Comes with 2 PCS power cable, 1 PCS earth cable, 2 PCS mount ear, accessory package

MA5608T chassis

2 MCUD1 equipped, switching capacity 256Gbit/s active/standby mode

1 MPWD equipped, input AC voltage: -100 V to -240 V

2 GPFD equipped, with 16 C+ SFP Module




MA5608T Dual 10GE AC 32GPON C+ bundle configuration, is recommended board bundle provided by hongking communication, it has most common service type and ordinary.  welcome to contact  us for customized configuration you need.

Huawei SmartAX MA5608T GPON OLT, 19 inch, with 2U height  2 service slots, support EPON, GPON, 10G PON, P2P, xDSL and POTS; H801MABR subrack

Product NameOLT Service Subrack
BrandHuawei
ModeMA5608T
Packing Size59x38.5x18
Gross Weight12
Service Board Slots2
Interface BoardMCUD+GPFD

We can custom made MA5608T OLT As Belowing Specification
Pls Confirm with our saler the specification you need
MA5608T OLT 1xMCUD + 1xMPWC
MA5608T OLT 1xMCUD + 1xMPWD
MA5608T OLT 1xMCUD1 + 1xMPWC
MA5608T OLT 1xMCUD1 + 1xMPWD
MA5608T OLT 2xMCUD + 1xMPWC
MA5608T OLT 2xMCUD,1xMPWD
MA5608T OLT 2xMCUD1 + 1xMPWC
MA5608T OLT 2xMCUD1 + 1xMPWD

MA5608T is an integrated fiber-copper access device, and can serve as a mini-OLT or mini-DSLAM.
The MA5608T, if serving as a mini OLT, supports GPON, 10G GPON, and P2P access modes. It can be installed at a residential district or a street side, which reduces the usage of ODN backbone optical cables, lowers the ODN deployment cost and difficulty, and minimizes the CO equipment room space.
The MA5608T, if serving as a mini-DSLAM, supports ADSL2+, VDSL2, SHDSL, and POTS access modes and provides Internet access, voice, and video services.

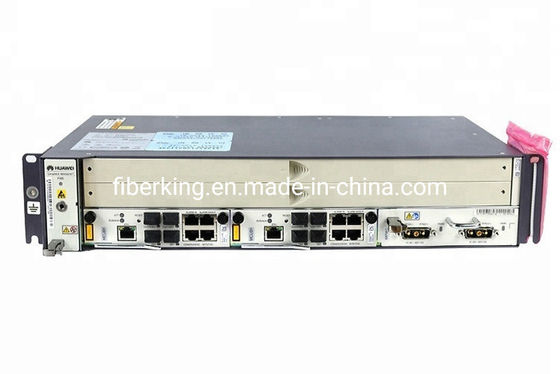

Figure 4 shows the appearance of the MA5608T.
Figure 4 Appearance of the MA5608T configured with the xPON boards



ItemMA5608T
Board configuration2 slots for control boards
2 slots for service boards
1 slots for the power interface board.
Switching capacity of the backplane bus720 Gbit/s
Supported control board and its switching capacityMCUD/MCUD1: 128 Gbit/s in active/standby mode or 256 Gbit/s in load-sharing mode
System Layer 2 packet forwarding rateMCUD/MCUD1: 128 Gbit/s in active/standby mode or 256 Gbit/s in load-sharing mode
Switching/Forwarding delayShort forwarding delay: The 100 Mbit/s Ethernet port sends the 64-byte Ethernet packets at a delay shorter than 20 μs.
BER in full loadBER of a port when the port transmits data in full load < 10 e-7
System reliability specificationsSystem: redundant configuration.
System availability for the typical configuration: > 99.999%
Mean time between failures (MTBF): about 45 years.
NOTE:
Due to different network environments and different boards used by devices, the above-mentioned MTBF (45 years) of the MA5608T is only for reference. The average repair time for field replaceable units (FRUs) is about 2 hours. The preceding values are only for reference. For details, contact the related Huawei engineers.
Maximum number of ADSL2+ ports in a subrack128
Maximum number of VDSL2 ports in a subrack128
Maximum number of EFM SHDSL ports in a subrack64
Maximum number of TDM SHDSL ports in a subrack32
Maximum number of POTS ports in a subrack128
Maximum number of ISDN BRA ports in a subrack64
Maximum number of ISDN PRA ports in a subrack64
Maximum number of GPON ports in a subrack32
Maximum number of 10G GPON ports in a subrack8
Maximum number of P2P FE ports in a subrack96
Maximum number of P2P GE ports in a subrack96
Operating environmentOperating temperature: -40°C to +65°C
Operating humidity: 5% RH to 95% RH
Atmospheric pressure: 61 kPa to106 kPa
Altitude: ≤ 4000 m
