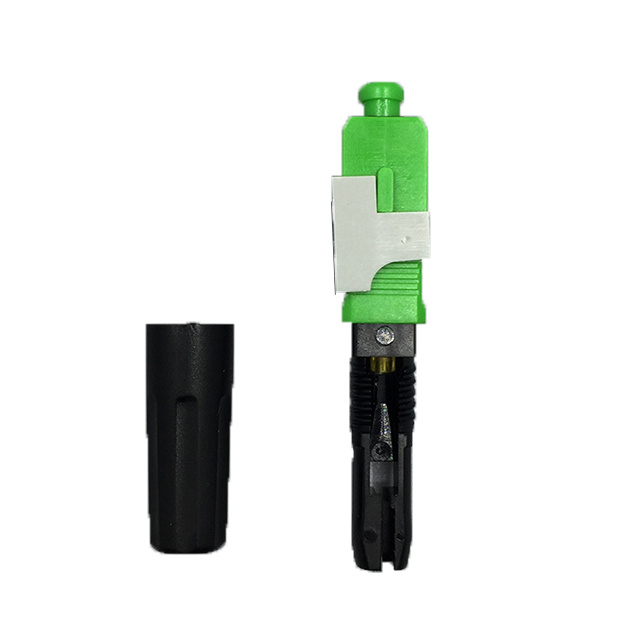

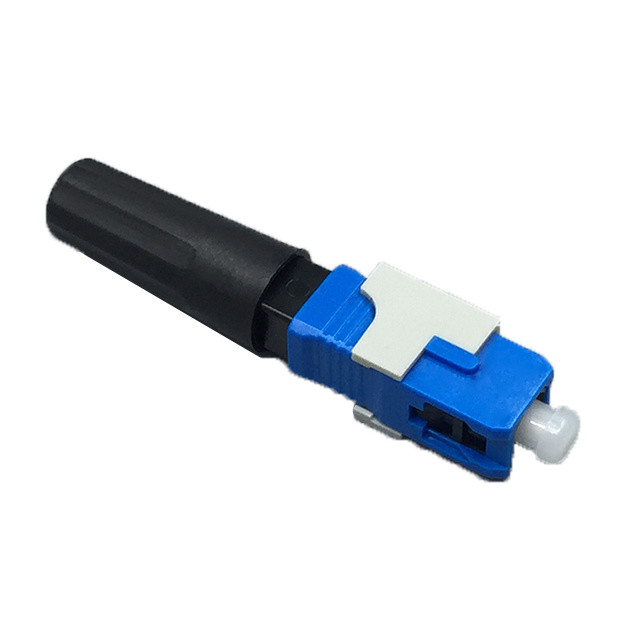

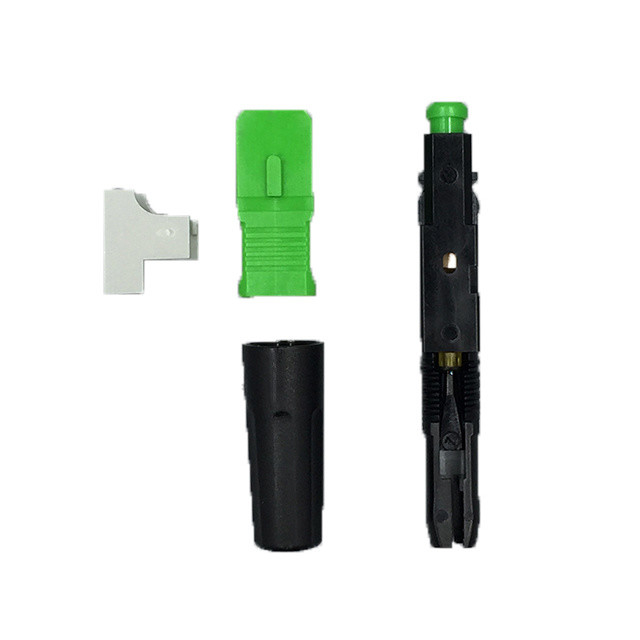

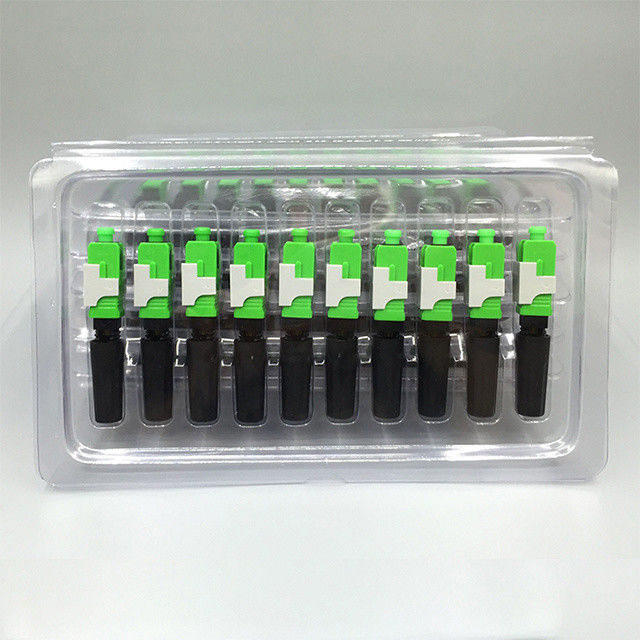

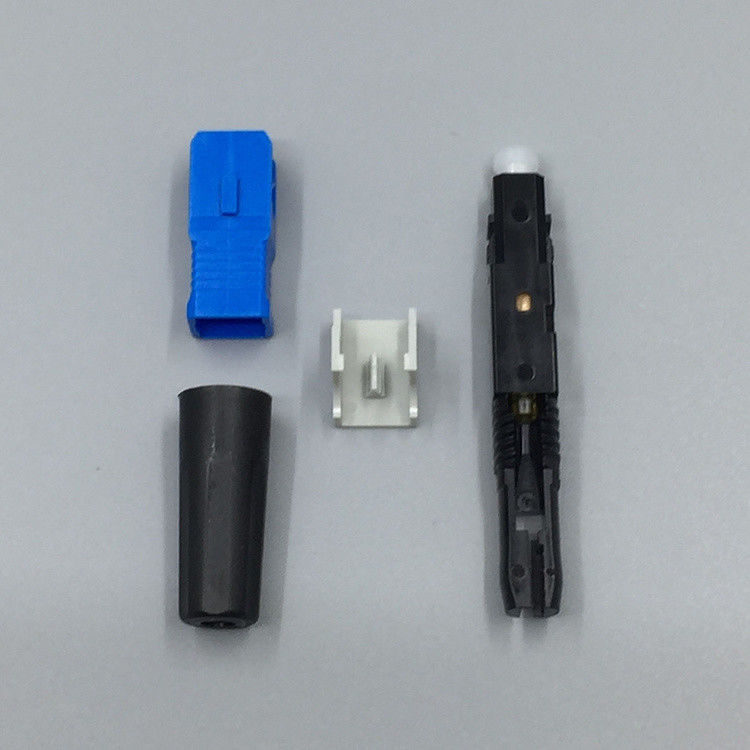

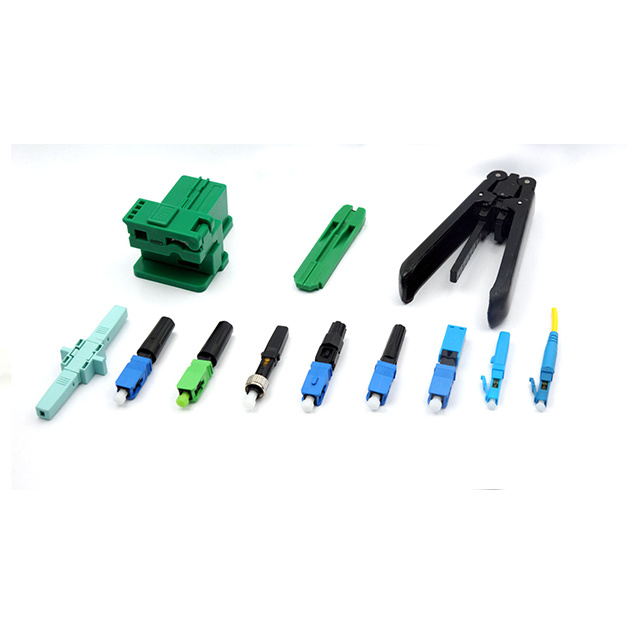

FTTH Optical Fiber Fast Connector

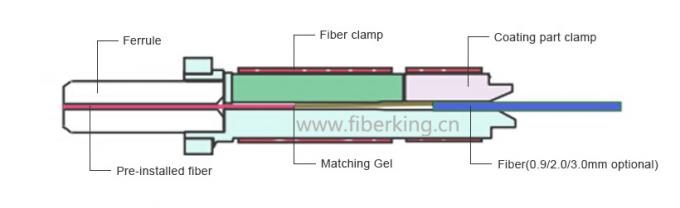

The fiber optic fast connector is a highly innovative field termination connector that includes factory-installed fiber, pre-cast ceramic ferrule, and a mechanical connection mechanism. The introduction of fiber or indoor fiber inserted into the mechanical connection mechanism can be, without the help of other tools, termination process as long as 2 minutes or so, greatly saving the installation time. Fiber optic fast connectors on the market today can be terminated with single-mode fiber and multimode fiber with diameters of 250 μm, 900 μm, 2.0 mm and 3.0 mm

Common problem of "normal quality fast connector"

1: High failure rate : the rate of one time success is not high, the insertion loss is large,

    and the fiber matching Gel is easy to lost.

2:Short lifetime: the product don't work well after few days

3:With incomplete statistics, various types of faults are as high as 10%.



C:Our Non_Fused connector system effectively solves the problem Aboved

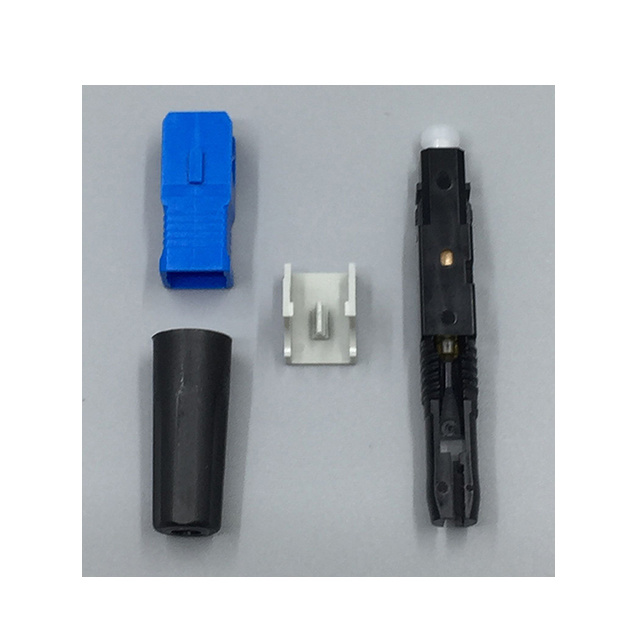

1: Ferrule is the most important component of  Fiber Connectors
    We use good quality Ceramic Ferrule

2: We Use high quality Special optical grease in stead of norma quality Maching Gel

   The laboratory shows that the average loss time is >25 years,

   and the physical docking requirements of the fiber can be well maintained during the lifetime.

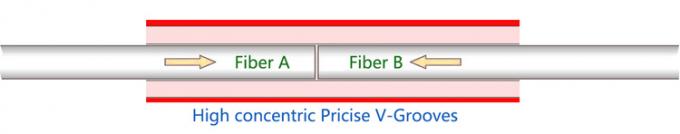

3: Precise V-Grooves and high concentric level  to guarantee the low insert loss and high return loss

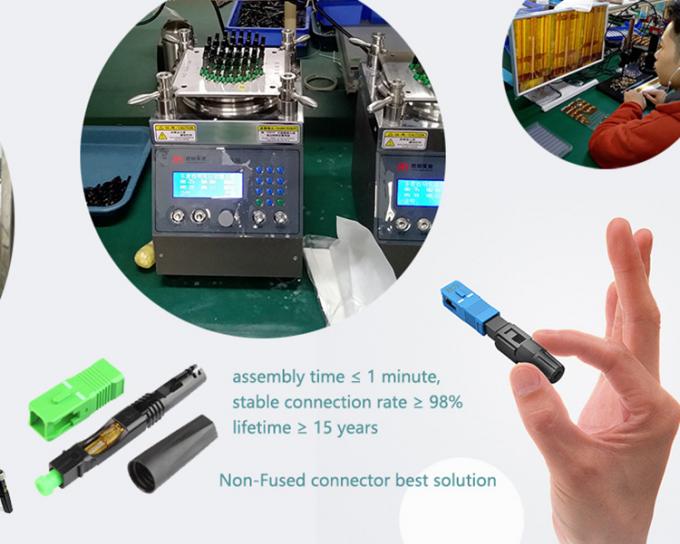

4: assembly time ≤ 1 minute, stable connection rate can reach 98% or more
5: 5 years failty rate can be as low as 2%, working life is more than 15 years

Specifications

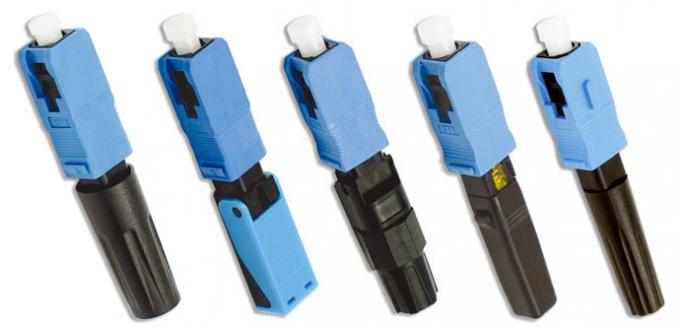

More design
