FTTH Optical Line Terminal Smartax Ma5608t Mini Olt HUAWEI chassis with 1xMCUD1 1xMPWC

Place of Origin:	China	Brand Name:	HONGKING
Certification:	CE ROHS Anatel	Model Number:	Ma5608t OLT 1xMCUD1 1xMPWC

Product Description

Huawei MA5608T

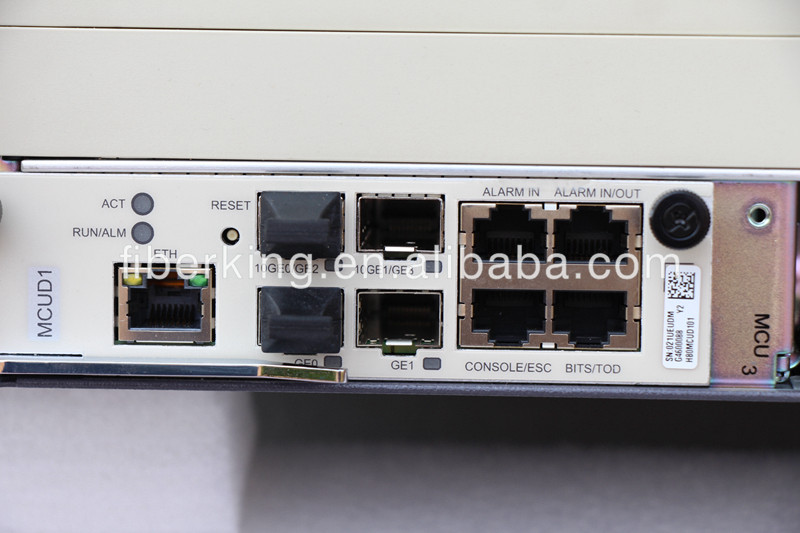

equipped with 1xMCUD1 (2xGE SFP+2xGE/10GE SFP+ Uplink, include 2 GE SFP Module)

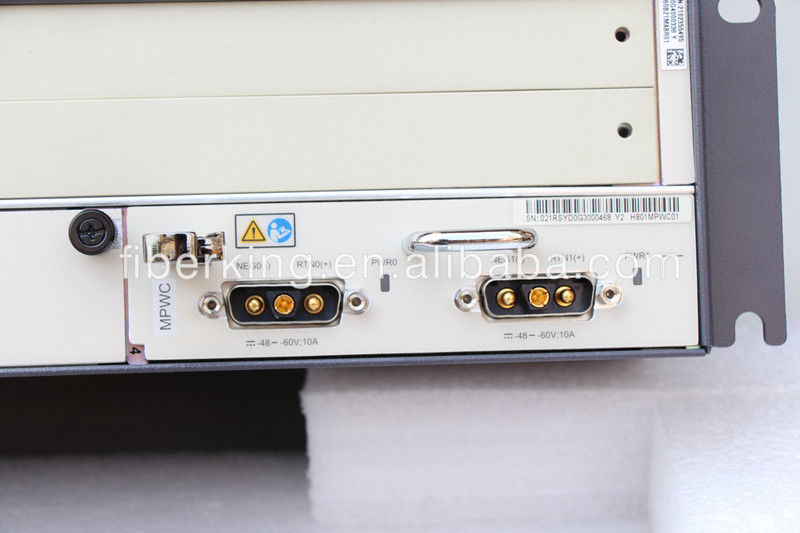

1xMPWC DC Power Module

Comes with 2 PCS power cable, 1 PCS earth cable, 2 PCS mount ear, accessory package

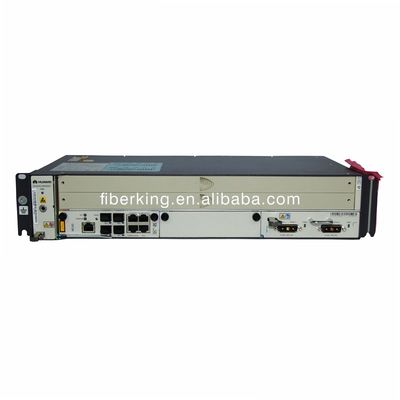

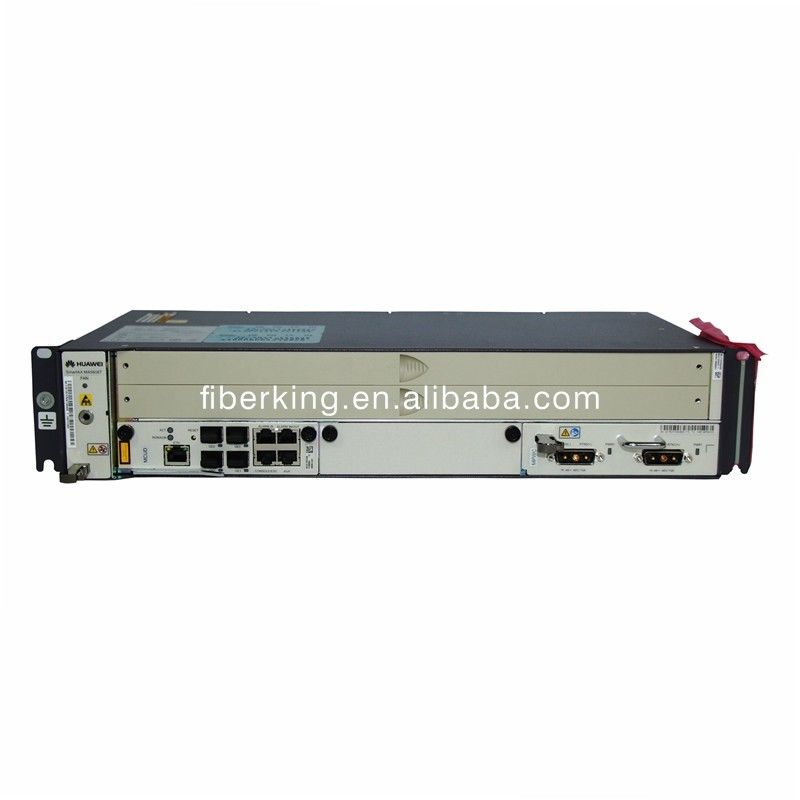

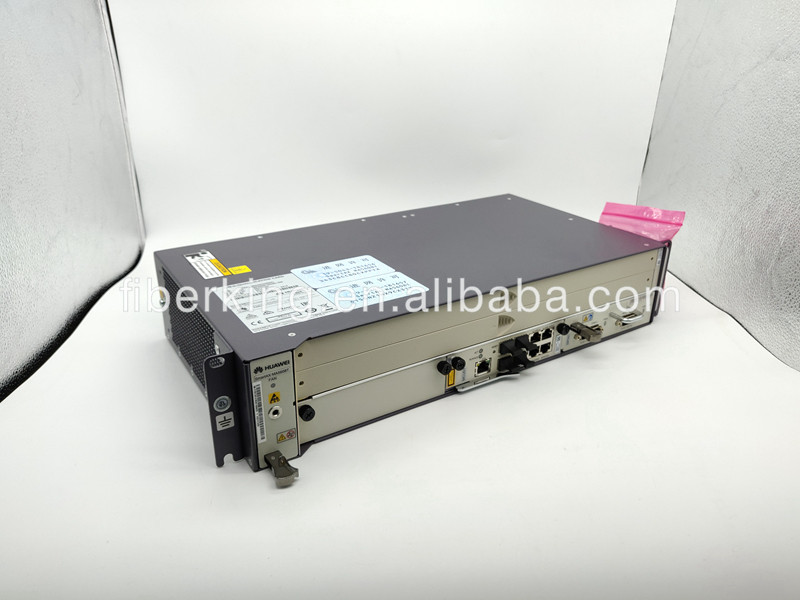

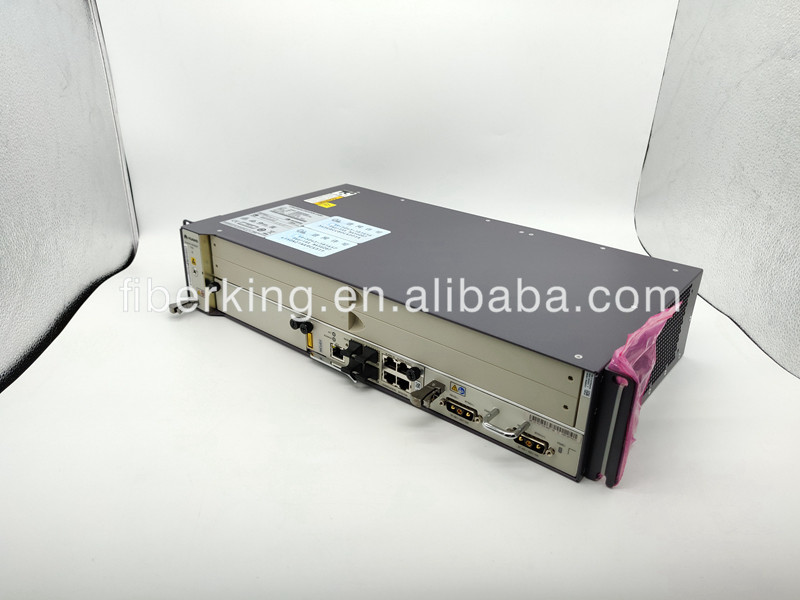

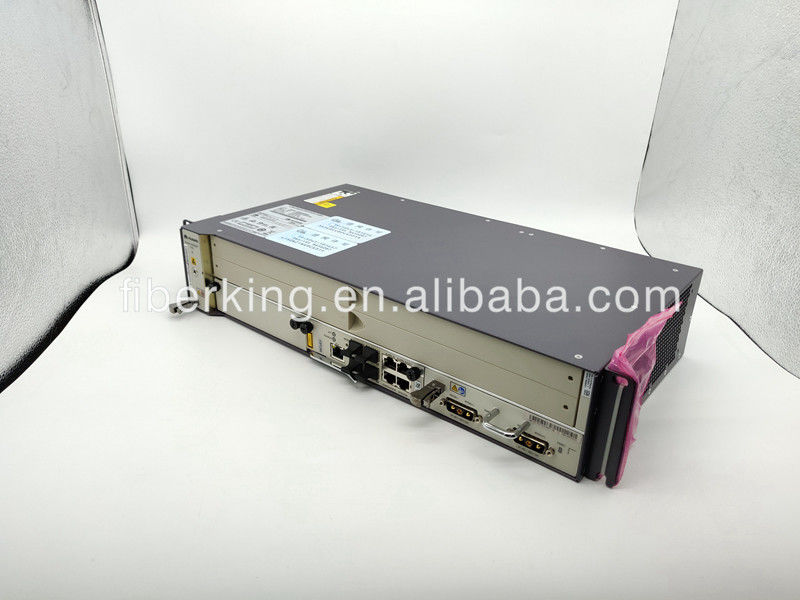

MA5608T chassis

1 MCUD1 equipped, switching capacity 256Gbit/s active/standby mode

1 MPWC equipped, connect Power Board -48 V DC

Configuration
Main Control Board	H801MCUD1: 1
Upstream Ports	10GE SFP+: 2 GE SFP: 2
GPON Ports	0
Service Slots Remain	2
Power Supply Mode	DC power supply: -48 V DC power
Device Specifications
Dimensions (W x D x H, including mounting brackets)	482.6mm×244.5mm×88.1mm, for IEC cabinet
Weight (empty chassis)	7.5KG
