G140WC Nokia GPON ONU ONT Dual Band WiFi Router 2.4G 5G Wireless 4GE 1TEL 2USB
Contact Person : Anna
Phone Number : +852 68416561
WhatsApp : +85268416561
Minimum Order Quantity : | 50pcs | Price : | Negociatable |
---|---|---|---|
Packaging Details : | Carton Box | Delivery Time : | 7-15days |
Payment Terms : | T/T,Western Union | Supply Ability : | 10000pcs/Week |
Place of Origin: | China | Brand Name: | OEM |
---|---|---|---|
Certification: | CE ROHS Anatel | Model Number: | G-140W-MD G-140W-MH |
Detail Information |
|||
Type: | FTTx Solutions | No. Of Fiber: | 1. |
---|---|---|---|
Use: | FTTH | CPU: | EcoNet EN7526GT |
WLAN: | 2.4GHz | WLAN Chips: | MediaTek MT7602EN/MT7612EN |
Flash: | Macronix MX25L12835FM2I-10G (16MB) | RAM: | Nanya NT5CC256M16GP-DI (128MB) |
Port: | Shenzhen/guangzhou/hongkong | ||
High Light: | G-140W-MD G-140W-MH FTTx ONU,G-140W-MH FTTx ONU 1GE 3FE 1TEL,G-140W-MD For Home SOHO Users |
Product Description

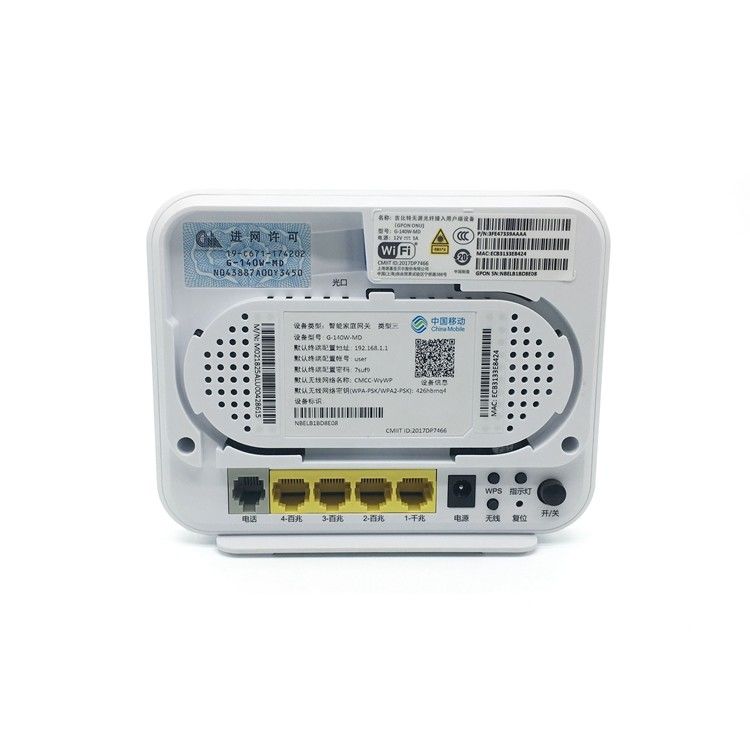

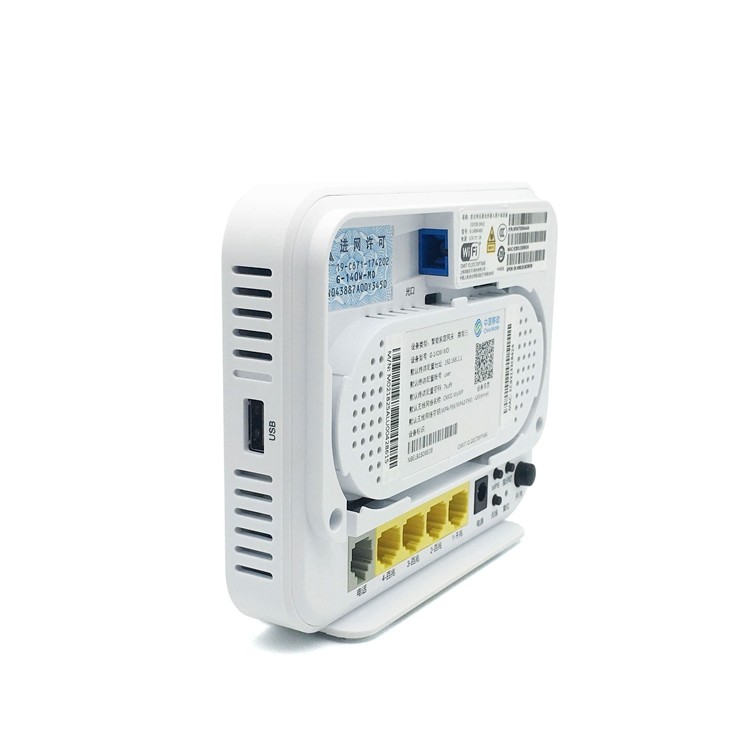

G-140W-MH Nokia 2.4G WiFi GPON ONT ONU Wireless 1GE 3FE 1TEL 1USB G-140W-MD G-140W-MH
The G-140W-MD, is an optical network terminal d for home and SOHO users. The G-140W-MD provides one POTS port, three FE auto-adapting Ethernet ports,one GE port(ONT), is a high-end home gateway in FTTH solution. By using the GPON technology, ultra-broadband access is provideE auto-adapting Ethernet port and one Wi-Fi port. The G-140W-MD features high-performance forwarding capabilities to ensure excellent experience with VoIP, Internet and HD video services. Therefore, the G-140W-MD provides a perfect terminal solution and future-oriented service supporting capabilities for FTTH deployment.
Operating temperature | -10°C — +45°C |
Weight | 332g |
Operating humidity | 10% RH to 95% RH (non-condensing) |
Power adapter input | 100-240 V AC, 50-60 Hz |
System power supply | 11-14 V DC, 1A |
Static power consumption | 5W |
Maximum power consumption | 15.5W |
Ports | 1POTS+1GE+3FE+Wi-Fi+1USB |
Indicators | POWER/PON/LOS/LAN/TEL/USB/WLAN/WPS |
1. Plug-and-play (PnP): Internet, IPTV and VoIP services can be deployed by one click on the NMS and on-site configuration is not required.
2. Remote diagnosis: Remote fault locating is implemented by the loop-line test of POTS ports, call emulation and PPPoE dialup emulation initiated by the NMS.
3. Link monitoring: E2E link detection is achieved using 802.1ag Ethernet OAM.
4. High speed forwarding: GE line rate forwarding in the bridging scenario and 900 Mbit/s forwarding in the NAT scenario.
5. Green energy-saving: 25% power consumption is saved with highly integrated system on chipset (SOC) solution, in which, a single chip integrates with PON, voice, gateway and LSW modules.
