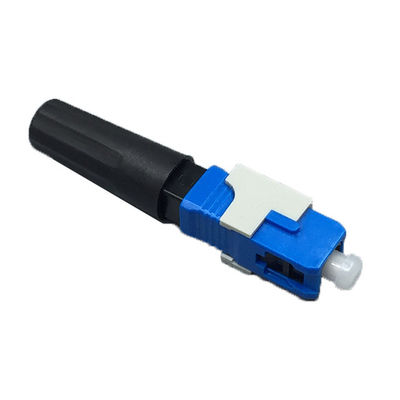

FTTH Optical Fiber Fast Connector

Product Details:
Place of Origin: China
Certification: CE ROHS Anatel
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Price: Negociatable
Packaging Details: Carton Box
Delivery Time: 7-15days
Payment Terms: T/T,Western Union
Supply Ability: 10000pcs/Week

Detail Information

Model NO.: Type C Application: Fiber Distribution Frame, Network Equipment, Fiber Module
Light Source TYPE: Laser Connector Type: SC-APC
Brand: OEM Weight: 7g
Trademark: OEM Transport Package: Carton Box
Origin: China Port: Yantian, China
Transmission Medium: Single-Mode Structure: SC
Number Of Cores: Single-Core Ferrule Endface: PC(UPC)
Shape: Rectangular Fabrication Process: Moulded
High Light:

FTTH Optical Fiber Fast Connector

,

Sc Upc APC Fast Connector

,

OEM Optical Fiber Fast Connector

Product Description

High Performance Sc Upc APC FTTH Optical Fiber Fast Connector

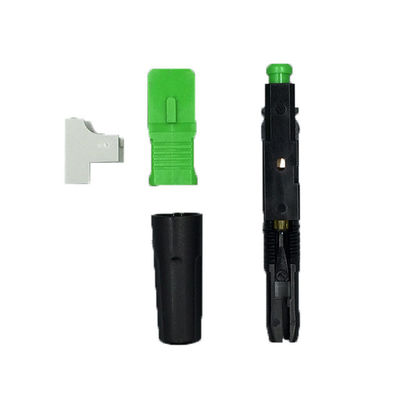

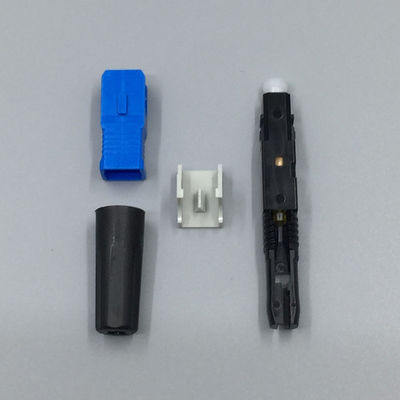

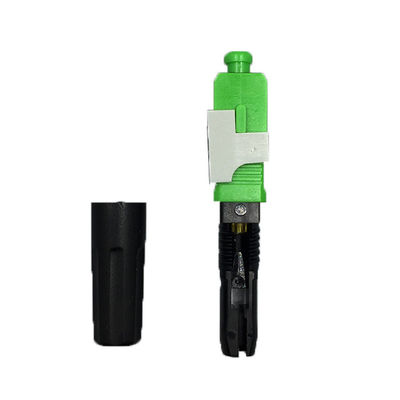

The fiber optic fast connector is a highly innovative field termination connector that includes factory-installed fiber, pre-cast ceramic ferrule, and a mechanical connection mechanism. The introduction of fiber or indoor fiber inserted into the mechanical connection mechanism can be, without the help of other tools, termination process as long as 2 minutes or so, greatly saving the installation time. Fiber optic fast connectors on the market today can be terminated with single-mode fiber and multimode fiber with diameters of 250 μm, 900 μm, 2.0 mm and 3.0 mmHigh Performance Sc Upc APC FTTH Optical Fiber Fast Connector
High Performance Sc Upc APC FTTH Optical Fiber Fast Connector
High Performance Sc Upc APC FTTH Optical Fiber Fast Connector
High Performance Sc Upc APC FTTH Optical Fiber Fast Connector
High Performance Sc Upc APC FTTH Optical Fiber Fast Connector


Common problem of "normal quality fast connector"

1: High failure rate : the rate of one time success is not high, the insertion loss is large,

    and the fiber matching Gel is easy to lost.

2:Short lifetime: the product don't work well after few days

3:With incomplete statistics, various types of faults are as high as 10%.
High Performance Sc Upc APC FTTH Optical Fiber Fast Connector



High Performance Sc Upc APC FTTH Optical Fiber Fast Connector






C:Our Non_Fused connector system effectively solves the problem Aboved

1: Ferrule is the most important component of  Fiber Connectors
    We use good quality Ceramic Ferrule

2: We Use high quality Special optical grease in stead of norma quality Maching Gel

   The laboratory shows that the average loss time is >25 years,

   and the physical docking requirements of the fiber can be well maintained during the lifetime.

3: Precise V-Grooves and high concentric level  to guarantee the low insert loss and high return loss

4: assembly time ≤ 1 minute, stable connection rate can reach 98% or more
5: 5 years failty rate can be as low as 2%, working life is more than 15 years

High Performance Sc Upc APC FTTH Optical Fiber Fast Connector

High Performance Sc Upc APC FTTH Optical Fiber Fast Connector


Specifications

Applicable for

3.1x2.0mm drop cable or 3.0/2.0 cable

Optical fiber diameter

φ125um (657A&657B)

Tight buffer diameter

φ250um

Fiber mode

Single mode

Operation time

About 10s (exclude fiber cut)

Insert loss

≤0.3dB (1310nm & 1550nm)

Return loss

≥40dB

Fastening strength of naked fiber

>4N

Tight clamping force cladding

>8N

Tensile strength

>50N

Using temperature

-45ºC~+80ºC


More designHigh Performance Sc Upc APC FTTH Optical Fiber Fast Connector

High Performance Sc Upc APC FTTH Optical Fiber Fast Connector
